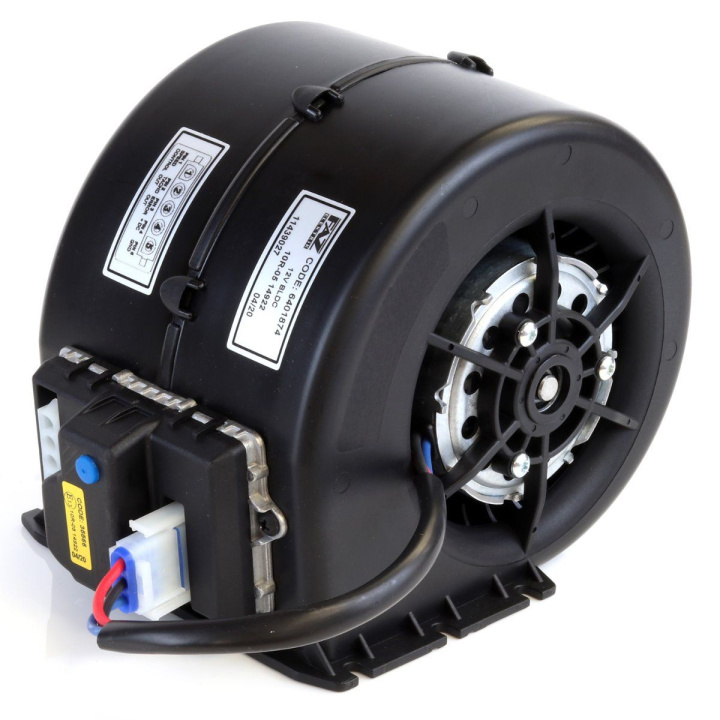

Brushless 3'' BLDC Centrifugal Blower 24v

Name: Brushless 3'' BLDC Centrifugal Blower 24v
Brand: T7Design
SKU: 6401865
Price: 214 EUR
Availability: InStock

Article nr:

6401865

T7Design supplies motorsport cooling parts since 2009 such as cab heaters, water pumps, fans, valves, ducting and connectors with good quality.

214 EUR

Delivery: 5-10 business days

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description

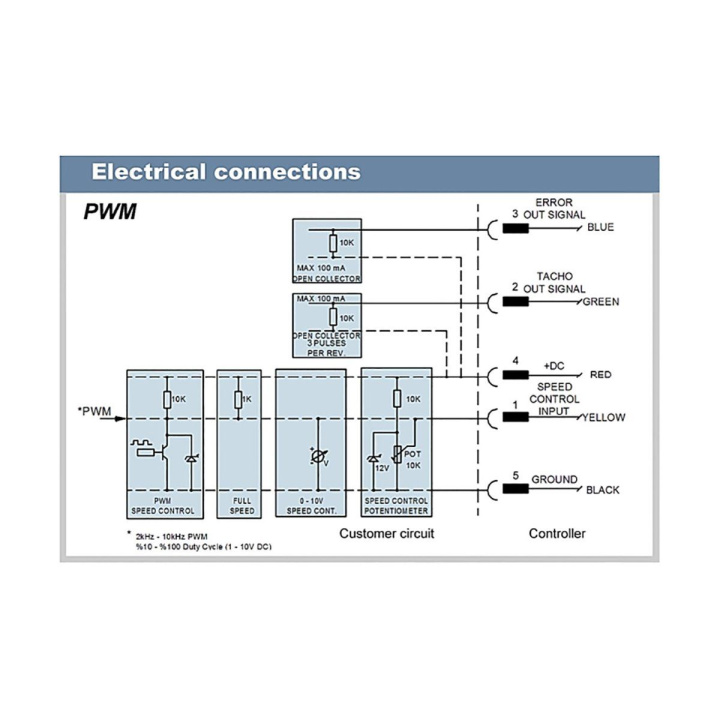

3" 24v Brushless DC Single Blower & PWM Controller - 10-100% Speed - 24v - PN:6401865

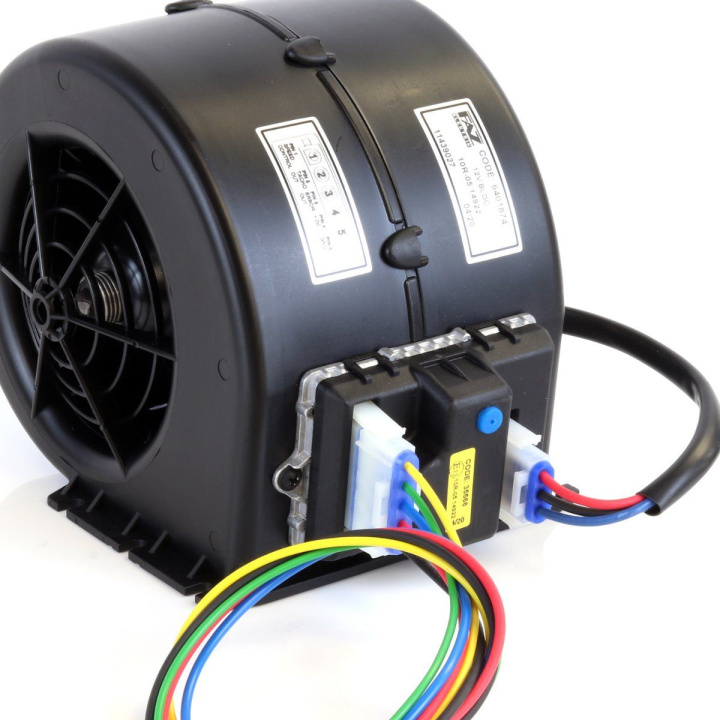

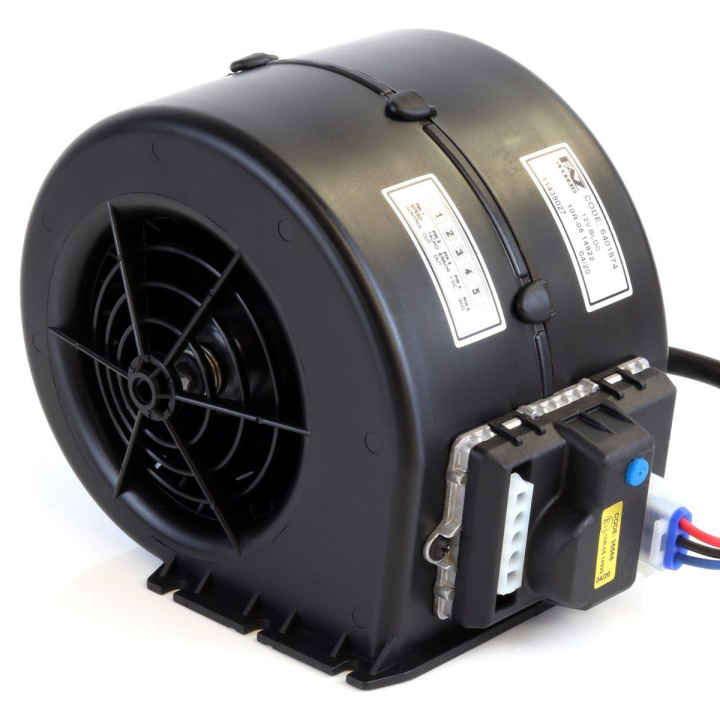

A high quality brushless PWM controlled centrifugal blower, this blower offers low EMC emissions, long life expectancy, infinite control and lower power consumption. BLDC blowers are the way forward in our low consumption future.

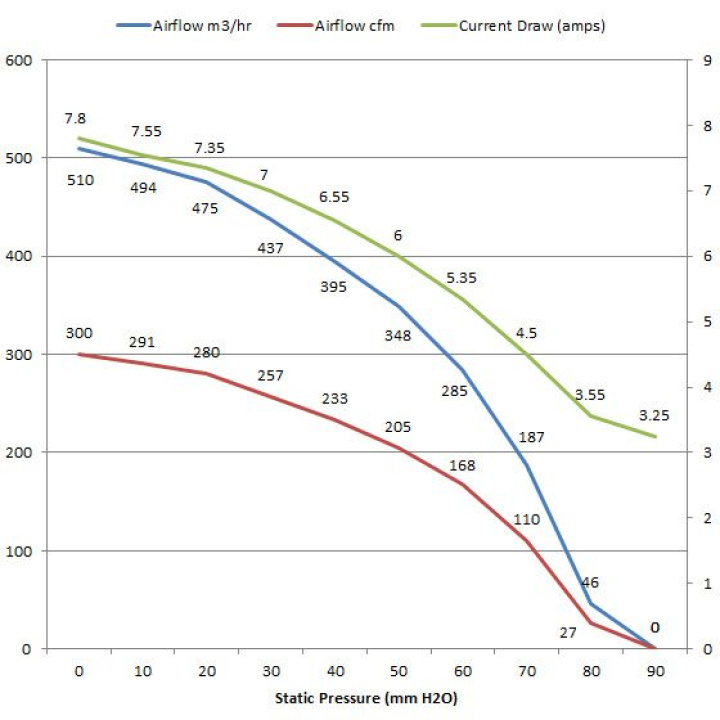

Specification	Metric	Imperial & Other
Airflow Max	510 m3/hr	300 cfm
Static Pressure	0 - 74 mm H₂0	0 - 2.92 in H₂0
Weight	1.2 kg	2.64 lbs
Voltage	24v
Current Continuous	3.25 - 7.8a
Power Consumption	78 - 187w
Fan Speed	10 - 100%
Fan Type	Single Squirrel Cage Blower
Protection	IP30 Certified
Material	30% GF Polymide 6 Black - Casing & Blower
Warranty	36 Months
Manufacturer	FAZ Eletrik
Manufacturer Certifications	ISO 9001:2015, ISO 14001:2015 , IATF 16949:2016
Part Number	6401865

Product video

Technical specification

Article nr:

6401865

Suitable for
Brand
Since 2009, T7Design have grown to be a key brand in offering thermal solutions, efficiency and performance products to the Motorsport and Automotive industry. Alongside our own ever-expanding brand of Honda K-Series performance parts and a variety of both water fed and completely electric lightweight Heaters, we stock some of the worlds leading Automotive brands. A selection of engineering services can be provided to assist you with your ongoing projects such as 3D Scanning, 3D Printing and CAD Design. Whether you require a bespoke heater, fuel fittings, technical support or even a single titanium bolt - we have you covered.
