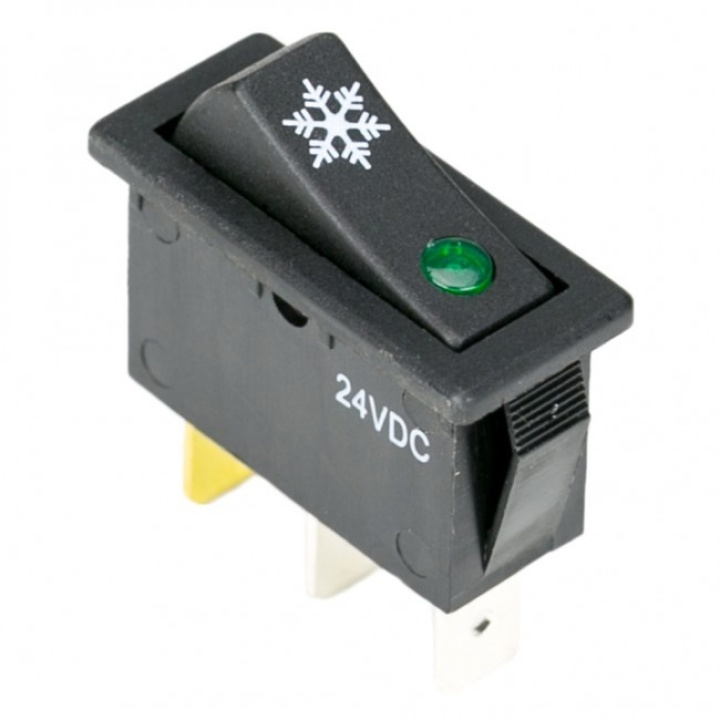

AC Switch ON/OFF - Illuminated Rocker Switch with LED
Practical and compact rocker switch with integrated LED indicator, designed for manual control of air conditioning (A/C) systems in vehicles.
The switch features two fixed positions, ON/OFF, making it easy to turn the A/C system on and off. The built-in green LED illuminates when the switch is in the ON position, providing a clear visual indication of the system status.
Its compact design allows for easy installation in dashboards and control panels. Ideal for passenger cars, motorsport, kit cars and custom-built vehicles.
Specifications:
Type: Illuminated rocker switch
Function: ON/OFF
Application: Manual A/C system control
Operating voltage: 6–28V DC
Maximum current: 20A
Indicator: Integrated green LED
Terminal size: 6.3 mm
Number of terminals: 3
Panel cut-out dimensions: 27.2 × 10.6 mm
Overall dimensions: 32 × 13.8 mm
Connections:
Terminal 1: Power supply
Terminal 2: To device
Terminal 3: Earth
