Rotary Heater Control knob

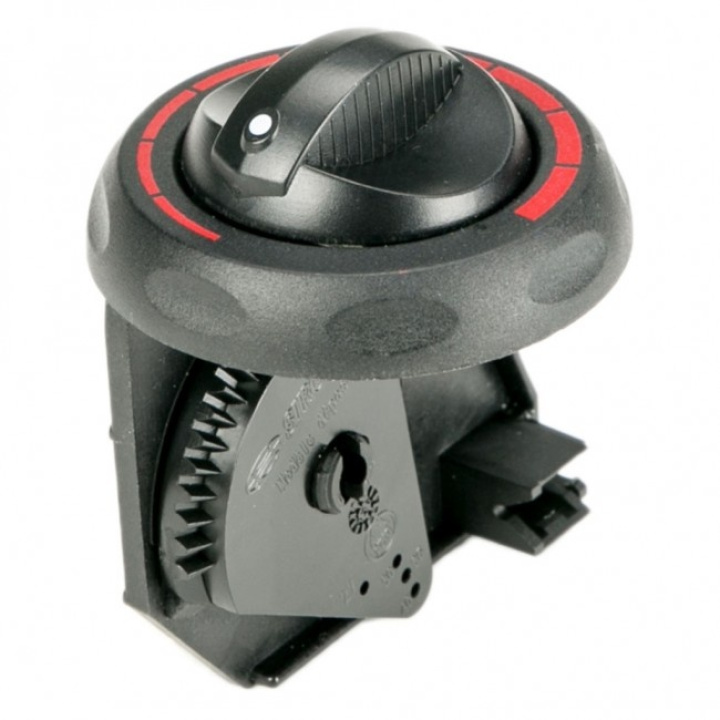

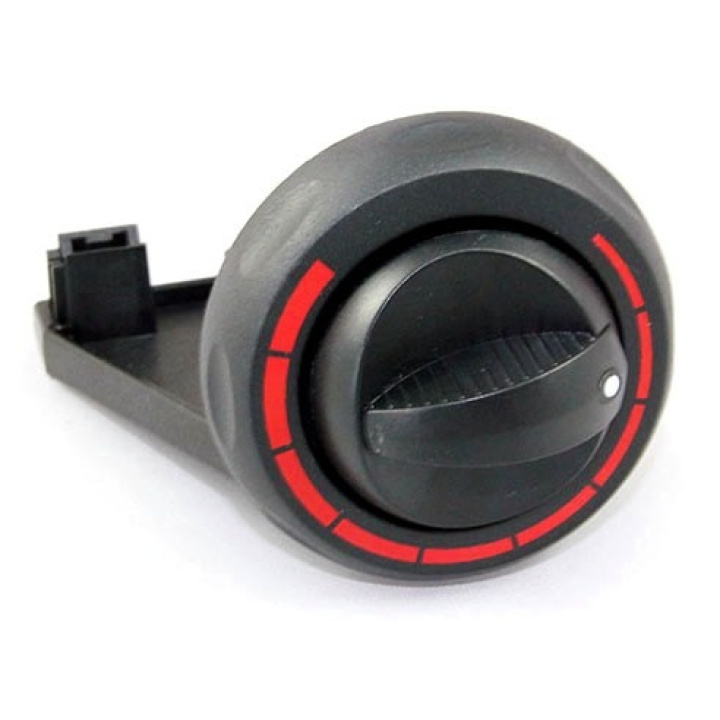

Rotary Heater Control Knob - Bowden Cable Operated

High-quality mechanical heater control knob designed for operating cable-operated heater valves in vehicle heating systems.

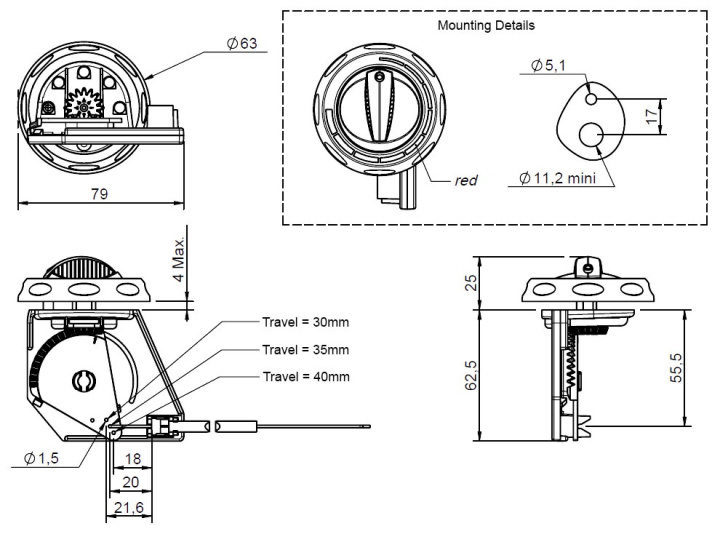

The control features a 270° rotary movement and three alternative cable attachment positions. This provides approximately 30–40 mm of cable travel, allowing the operation to be adapted to suit different installation requirements.

Manufactured from high-strength ABS plastic, the control is designed to provide smooth and precise operation of the heater valve's opening and closing functions. Turning clockwise pulls the cable, while turning anticlockwise pushes the cable.

Ideal for automotive installations, motorsport, kit cars and custom-built heating systems where mechanical heater control is required.

Specifications:

• Type: Mechanical heater control knob

• Operation: Bowden cable

• Rotation angle: 270°

• Cable travel: 30–40 mm

• Cable connection: Type A

• Material: High-strength ABS plastic

• Temperature range: -20°C to +80°C

• Clockwise rotation: Pulls the cable

• Anticlockwise rotation: Pushes the cable

• Valve compatibility: Push-to-close valves only

Important installation information:

• Bowden cable is not included and must be purchased separately.

• Compatible with Type A Bowden cables only.

• Requires a push-to-close heater valve to ensure that the control positions and markings correspond correctly.
