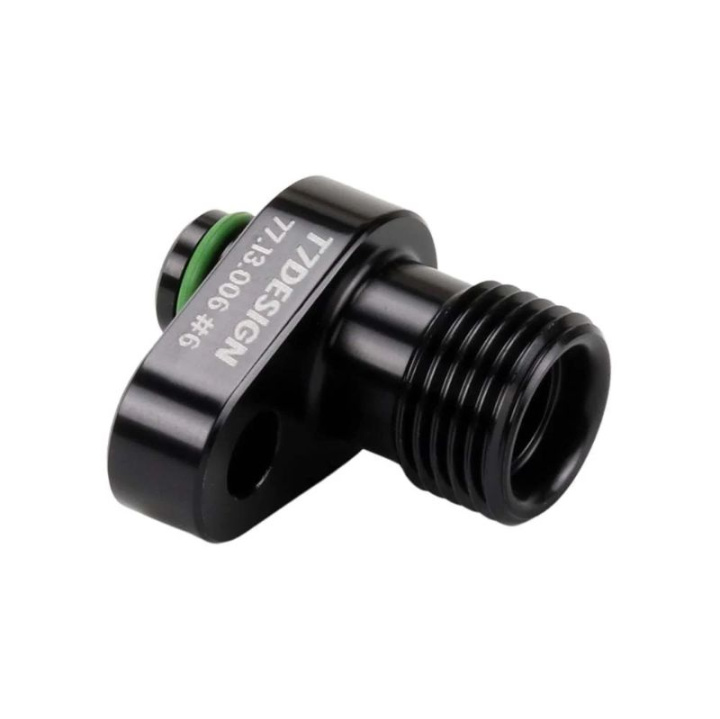

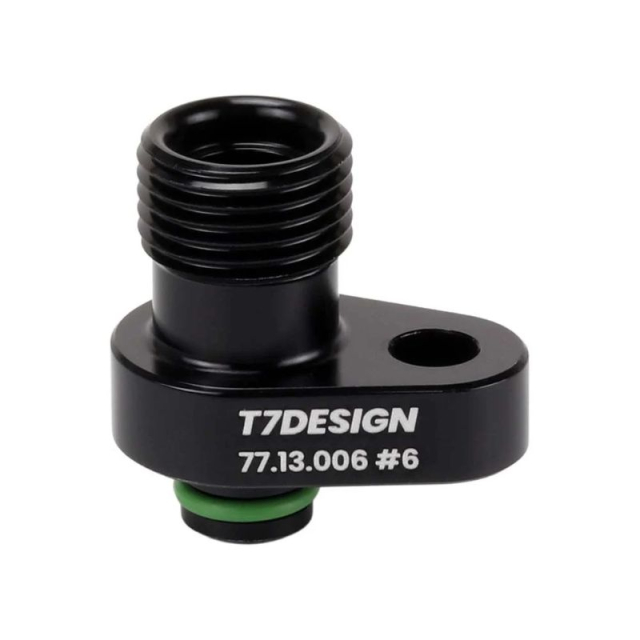

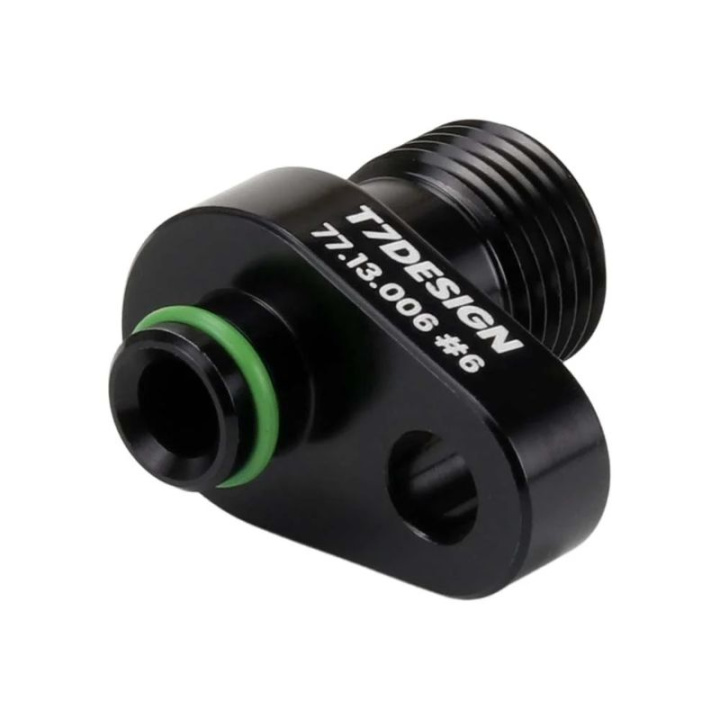

77.13.006 -6 10.15mm M6 PAD Adapter
The T7Design PAD to O-Ring adapters are ideal for converting components with PAD fittings commonly found on compressors and condensers to readily available Female O-Ring (FOR) fittings. Our PAD adapters are fully CNC machined from billet aluminium and finished with an anodised black coating to offer excellent corrosion protection.
Please note that no retainment bolt is included.
| Specification | Metric | Imperial |
| Threaded Connection | - | 5/8-18 UNF |
| Pilot O-Ring Diameter | 10.15mm | 0.40" |
| Bolt Hole | M6 | - |
| Connection Type | Male Insert O-Ring (MIO) | |
| Compatible Fittings | -6 Female O-Ring (FOR) | |
| Material | 6061-T6 Aluminium | |
| Finish | Anodised Black | |
| Part Number | 77.13.006 | |
Kit Contents
| Quantity | Description |
| 1x | PAD to Male O-Ring |
| 1x | O-Ring |
