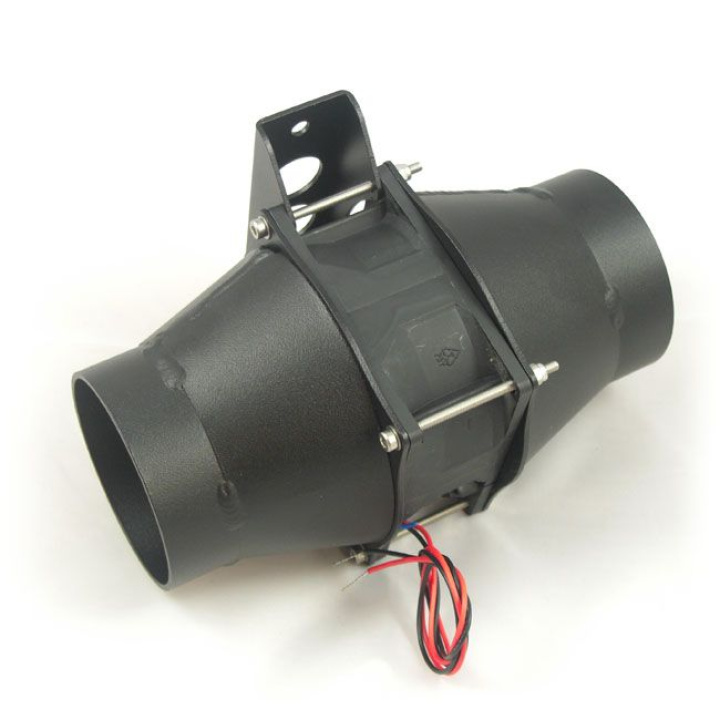

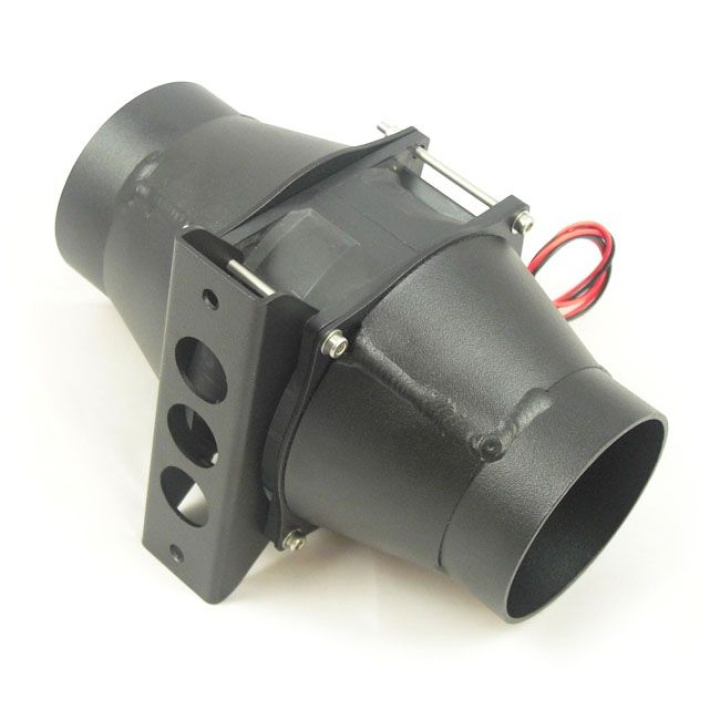

Designed and built by T7Design, this inline blower is the most powerful ducted fan you can buy to fit 2.5" (63.5mm) hose. The unit is constructed out of laser cut 16swg Aluminium, it is then precision folded and finally powdercoated to give a rugged build quality and finish. The unit comes supplied with a mounting bracket that allows the unit to be firmly attached to a panel. Please note, this is supplied in kit form ready to be assembled with all the correct hardware, the only items you will require are M5 bolts to mount the unit.
| Specification | Metric | Imperial & Other |
| Air Nozzle Size | ∅ 63.5mm | ∅ 2.5" |
| Airflow Max | 147 m3/hr | 87 cfm |
| Weight | 0.37 kg | 0.81 lbs |
| Voltage | 12v | |
| Current Continuous | 1.35a | |
| Power Consumption | 16.2w | |
| Fan Speeds | 1 Speed | |
| Approvals | CE, CSA, UL, VDE | |
| Warranty | 24 Months | |
| Manufacturer | T7Design Ltd | |
The fan is single speed only and can be operated from many simple ON/OFF switches as long as they can handle at least 5a of current.
| Wire Colour | Use | Recommended Wire Size |
| 1x Red | From Switch | 1.0mm² |
| 1x Black | Earth / Ground | 1.0mm² |
