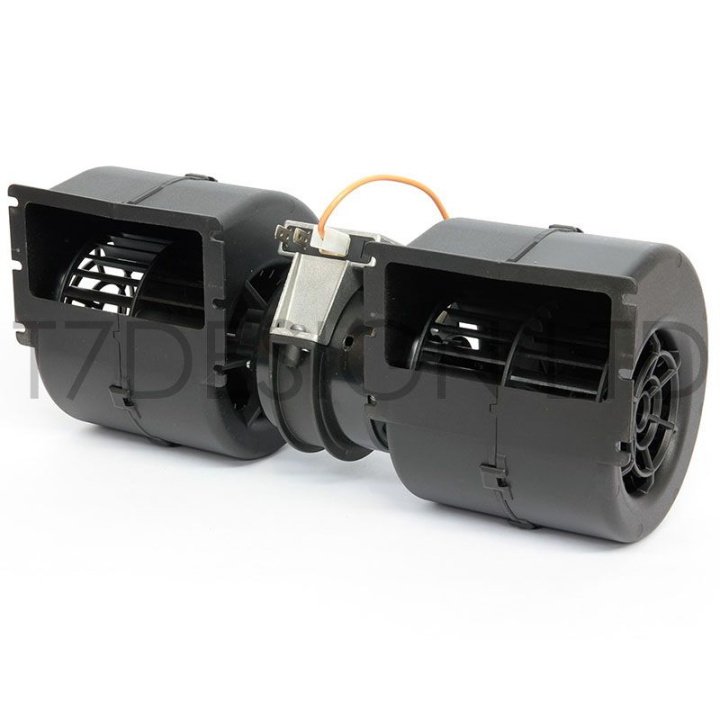

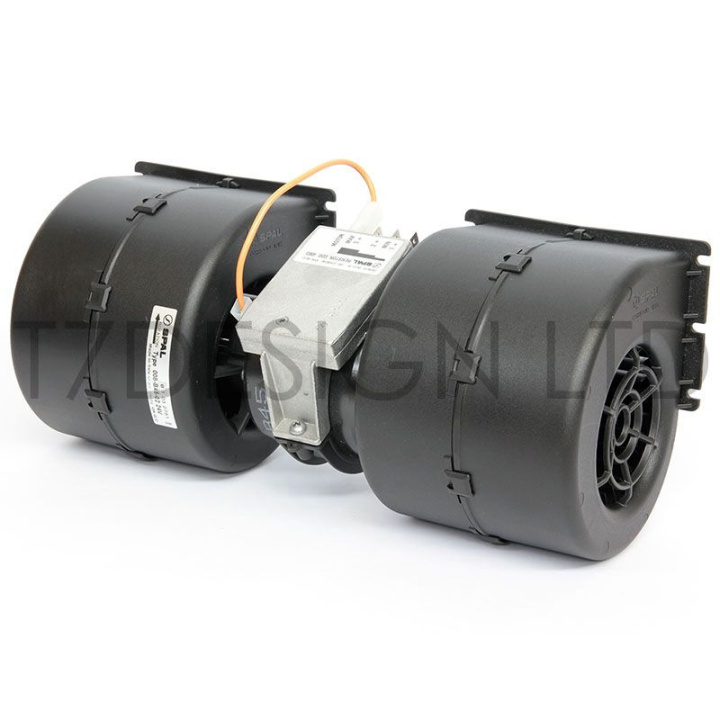

006-B45-22 - SPAL Centrifugal Blower - 3 Speed - 24v
SPAL Automotive is a well renowned designer & manufacturer of high quality automotive electric radiator fans & centrifugal blowers, founded in 1959 they have since become the supplier of choice for many high volume & specialist automotive manufacturers throughout the world. SPAL Automotive have extensive design, testing and manufacturing facilities that allow them to produce consistent high quality products that can withstand the most demanding conditions.
| Specification | Metric | Imperial & Other |
| Airflow Max | 1160 m3/hr | 684 cfm |
| Static Pressure | 0 - 70 mm H20 | 0 - 2.8 in H20 |
| Weight | 1.8 kg | 3.96 lbs |
| Voltage | 24v | |
| Current Continuous | 4.8 - 12.7a | |
| Power Consumption | 115.2 - 304.8w | |
| Fan Speeds | 3 Speed | |
| Blower Type | Double Fan | |
| Protection | IP30 Certified | |
| Warranty | 36 Months | |
| Manufacturer | SPAL Automotive | |
| Certifications | UNI EN ISO 9001:2008, ISO TS 16949, ISO 14001 | |
| Part Number | 006-B45-22 | |

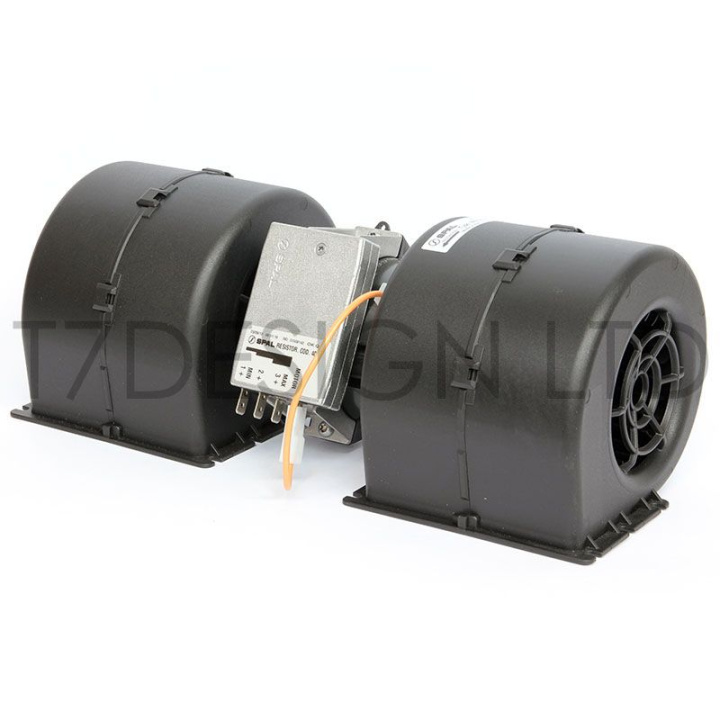

This blower has an onboard resistor pack offering 3 speeds; high, medium and low speed. This blower can be operated from many 3 speed (4 Position) fan switches as long as they can handle the current draw of the fan.
| Contact | Use | Fan Speed | Recommended Wire Size |
| 1 + (Min) | To Switch | Low | 2.5mm² |
| 2 + | To Switch | Medium | 2.5mm² |
| 3 + (Max) | To Switch | High | 2.5mm² |
| Motor | Earth / Ground | - | 2.5mm² |
