Nissan GT-R 2008+ Ultimate Front Mount Intercooler Kit AirTec
Comes in black and with no logo if not specified!
AIRTEC Motorsport Ultimate-Series Front Mount Intercooler for Nissan R35 GT-R
Following an extensive development process spanning the past 2 years, AIRTEC Motorsport are proud to launch its new ultimate-spec large capacity intercooler kit suitable for highly modified Stage 4 and over R35 GT-Rs that require the very highest level of cooling efficiency and performance for track or fast road use.
Our comprehensive kit has been designed, developed and tested in the UK after thorough research. During this time we tried and tested a variety of end tank designs, boost pipe connectors as well as both a tube-and-fin and a bar-and-plate core.
The finished design we chose for optimum performance features 3” formed inlet and outlet pipes that flow freely through custom end tanks into a huge, 110mm deep bar-and-plate core capable of 1,500bhp. The design makes full use of the vehicle’s lower grille area and features an angled air deflector to further aid flow.
It therefore offers a huge increase in surface area and volume over standard, and radically reduces charge temperatures, which is ideal for tuned GT-Rs running increased boost pressures.

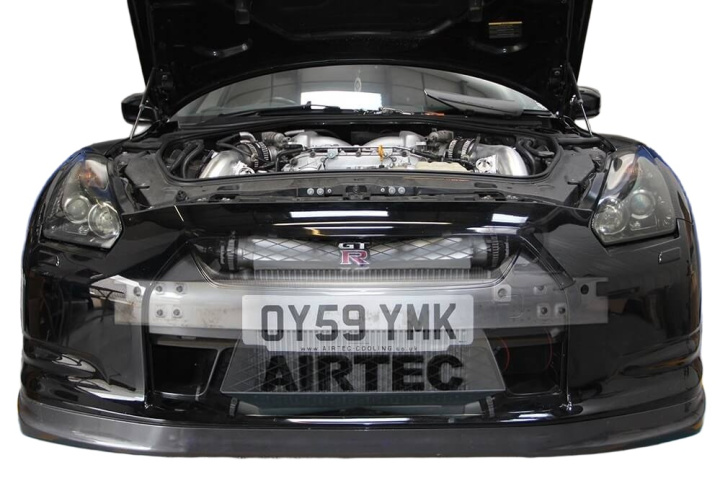

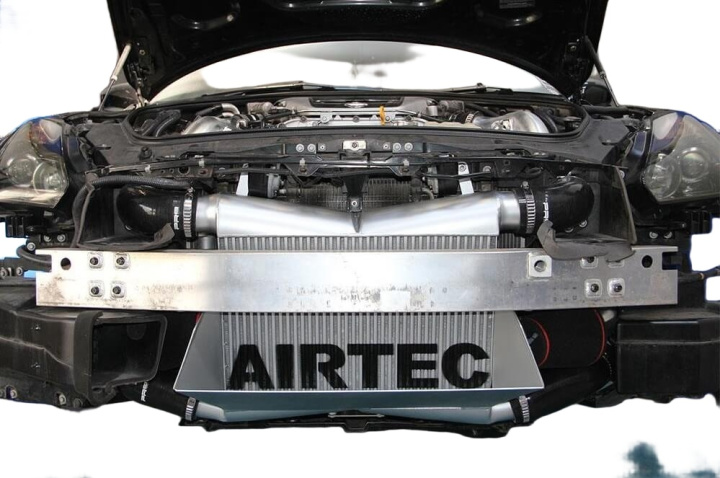

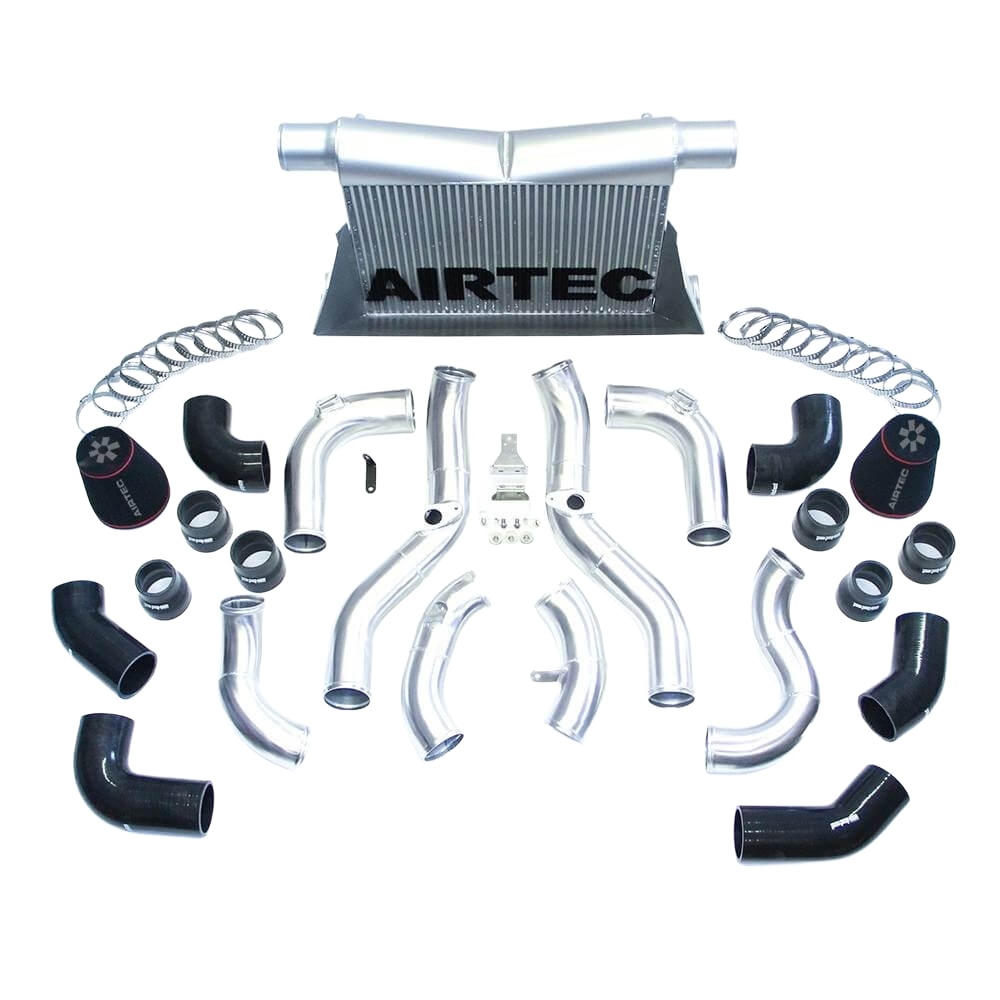

The kit fits neatly behind the original bumper but does require modification to the original plastic intercooler surround. The extensive kit is also made up of a 20-piece big boost pipe and hose connector kit, which includes pre-turbo induction pipes and AIRTEC foam air filters, along with all fixtures and fittings needed to install.
Key features:
- Huge bar and plate core capable of 1,500bhp
- 3” free flowing inlet and outlets

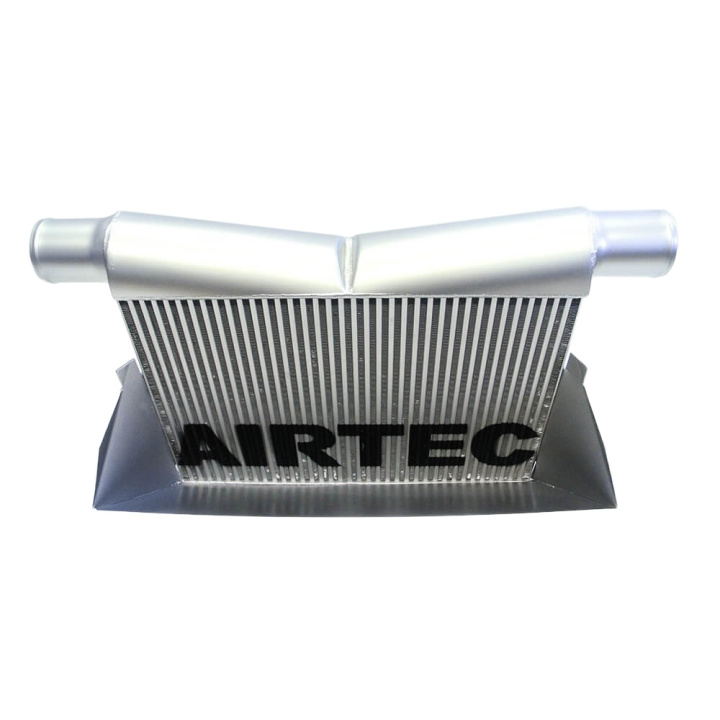

- 560mm x 380mm x 110mm core
- CAD designed end tanks to optimise air flow
- Comes complete with full fitting instructions
- Proven power increases and cooling efficiency
- Available in Pro-Series Black or Natural Silver
Please note: Silicone hoses only available in Gloss Black.
In busy periods, this product could have a 3-4 week manufacturing lead time.
AIRTEC part no: ATINTNIS02
