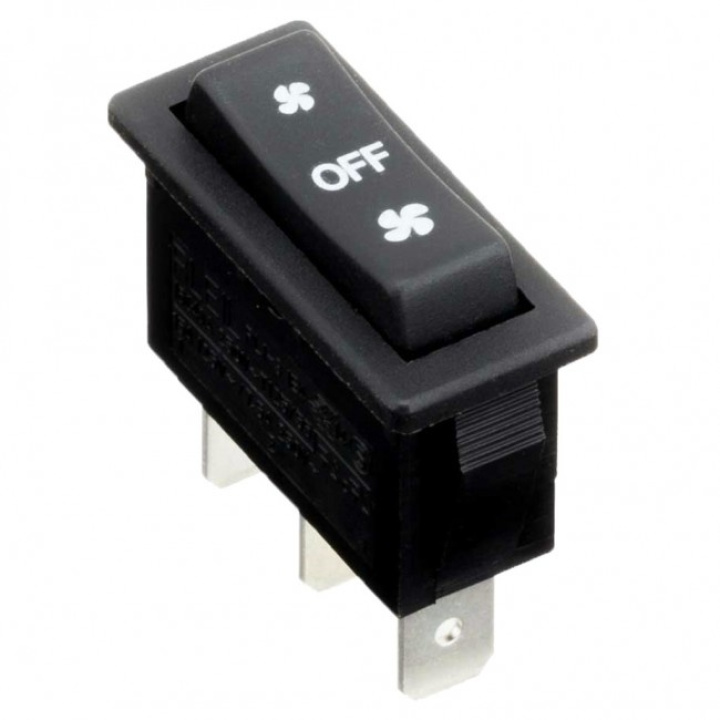

Fan Switch ON/OFF/ON - 3-Position Rocker Switch
Practical and compact 3-position rocker switch designed for controlling two-speed fans and fan motors in automotive applications. The switch features three fixed positions: ON/OFF/ON, allowing you to select between two different fan speeds and an OFF position.
An ideal solution for manual control of cabin fans, heater blowers and other electric fans in passenger cars, motorsport vehicles and custom-built installations.
The switch is rated for up to 28V and 20A, making it suitable for both 12V and 24V systems. Its compact design allows for easy installation in dashboards and control panels.
Specifications:
Type: 3-position rocker switch
Function: ON/OFF/ON
Application: Control of two-speed fans and fan motors
Operating voltage: 6–28V DC
Maximum current: 20A
Panel cut-out dimensions: 27.2 × 10.6 mm
Overall dimensions: 32 × 13.8 mm
Connections: 6.3 mm spade terminals
Number of terminals: 3
Connections:
Terminal 1: Output 1
Terminal 2: Power supply
Terminal 3: Output 2
