A/C Control Knob - 2-Position Switch with Snowflake Symbol
Stylish and high-quality rotary control knob with an integrated 2-position switch, designed for manual control of air conditioning (A/C) systems in vehicles.

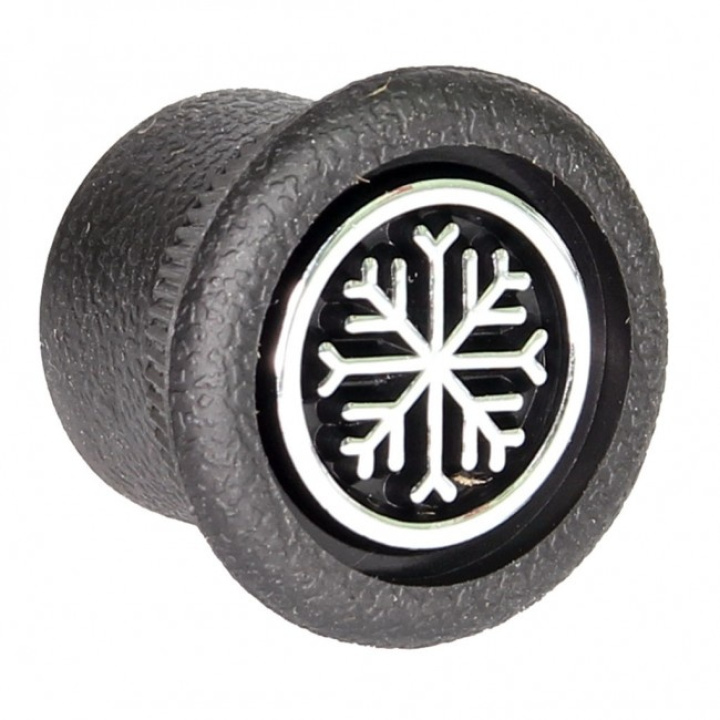

The control features two positions, OFF/ON, making it easy to activate and switch off the A/C system. The knob features a clearly visible snowflake symbol to indicate its function and is manufactured from injection-moulded ABS plastic with a soft, rubberised and textured surface for improved grip. The chrome-finished logo in the centre gives the control a classic and stylish appearance.
The switch is designed for use with fans and blower motors equipped with an integrated resistor pack. Its compact design makes it easy to install in dashboards and control panels.
Ideal for passenger cars, motorsport, kit cars and custom-built A/C and ventilation systems.
Specifications:
Type: Rotary control knob with 2-position switch
Function: OFF/ON
Application: Manual A/C system control
Operating voltage: 12V DC up to 20A / 24V DC up to 10A
Material: Injection-moulded ABS plastic with rubberised surface
Finish: Textured surface with chrome-finished logo
Symbol: Snowflake
Knob diameter: 25.4 mm
Knob depth: 22.9 mm

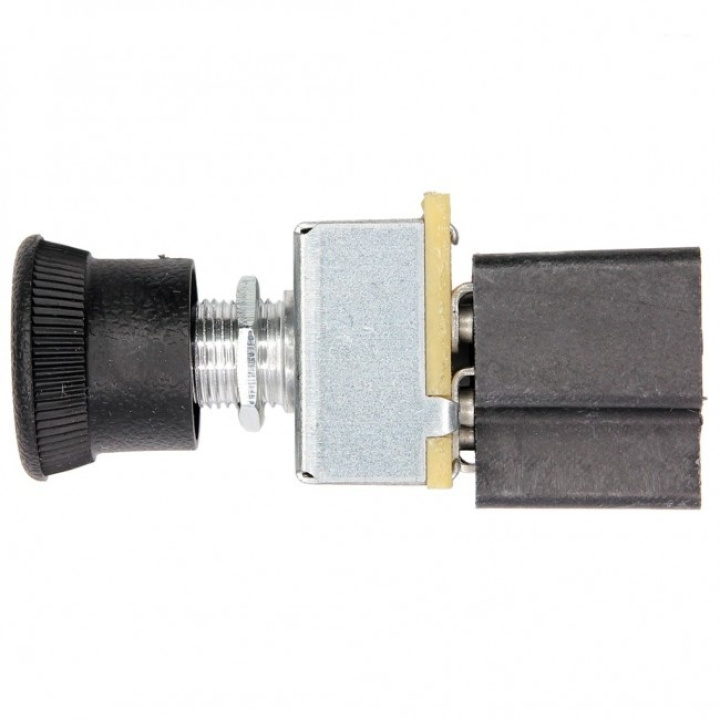

Shaft type: D-shaped
Shaft diameter: 6.35 mm
Thread size: 7/16-28
Thread length: 7.24 mm

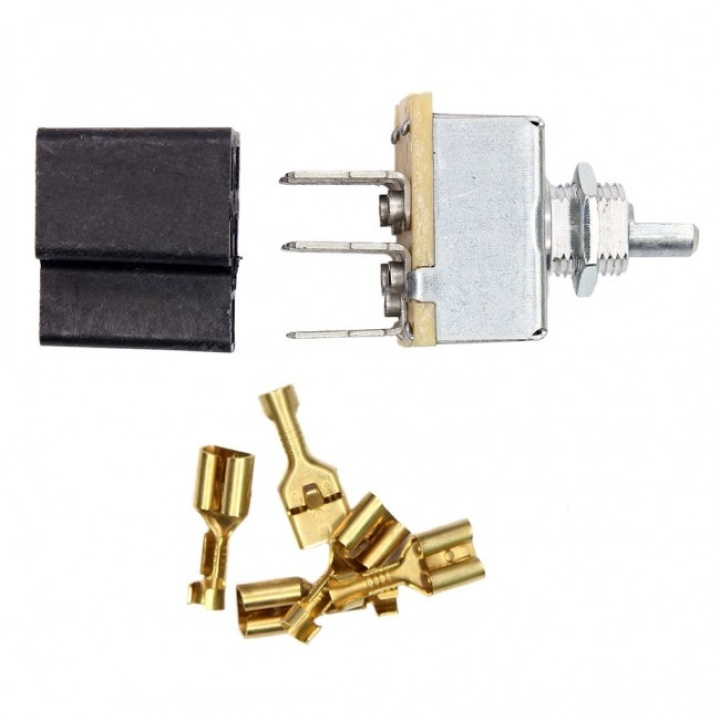

Connections: Spade terminals directly on the rear of the switch
Connector block and cable terminals: Not included
Connection information:
Position 1: OFF
Position 2: ON (B + C)
Connection C is live when the switch is in the ON position and can, for example, be used for an indicator light or to activate the A/C system.
