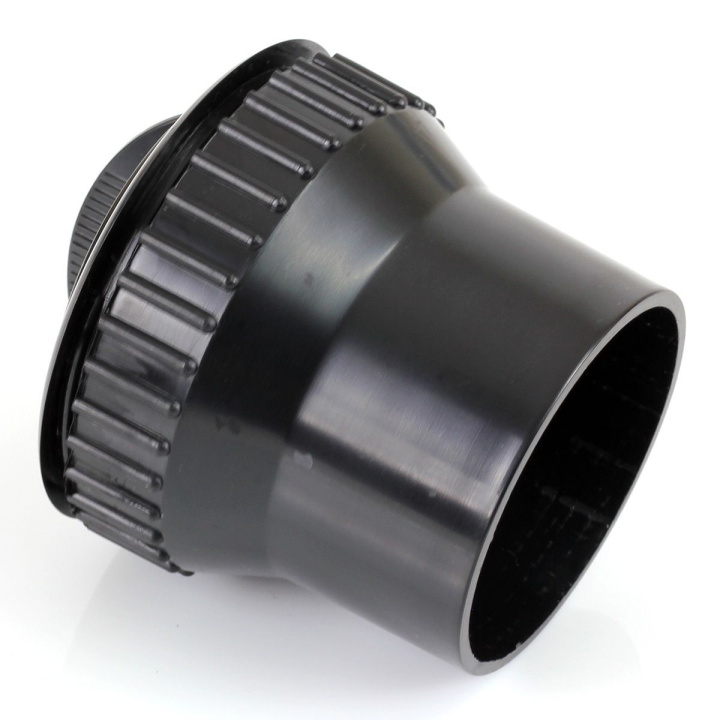

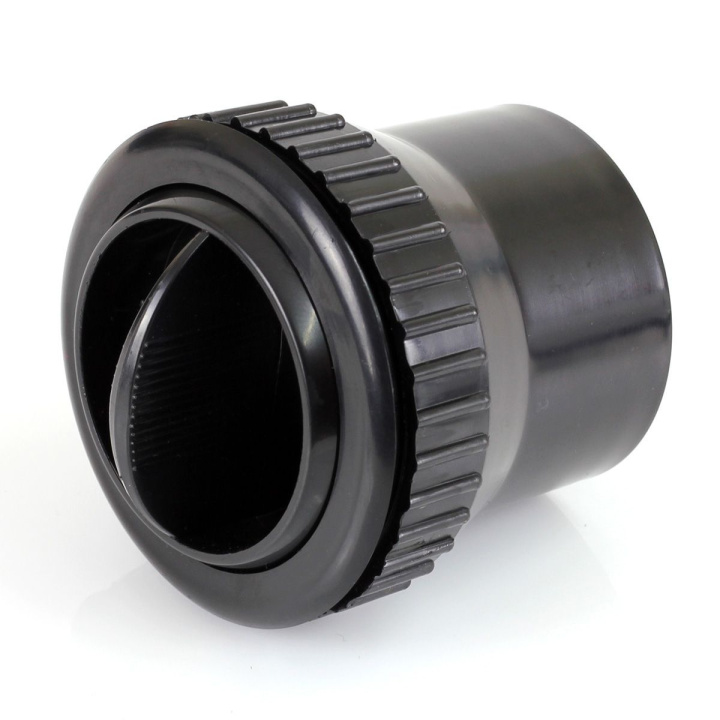

Single Vane Ball Vent 63 mm (2.5")
Adjustable directional air vent with a single airflow control vane, designed for efficient and targeted air distribution in vehicles, motorsport applications and other ventilation systems.
The vent is manufactured from high-strength injection-moulded ABS plastic and features an adjustable ball-joint design, allowing the airflow to be directed wherever it is needed. The single control vane allows you to adjust the airflow for improved comfort and efficient ventilation in areas such as vehicle cabins.
Designed for panel mounting, the vent is suitable for ventilation hoses with a diameter of 63 mm (2.5"). A hose connection can also be fitted as an optional accessory.

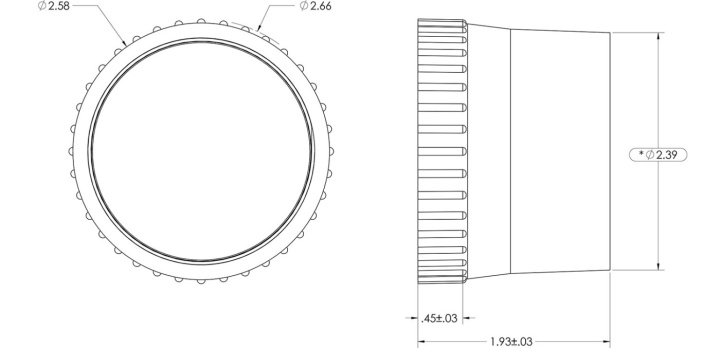

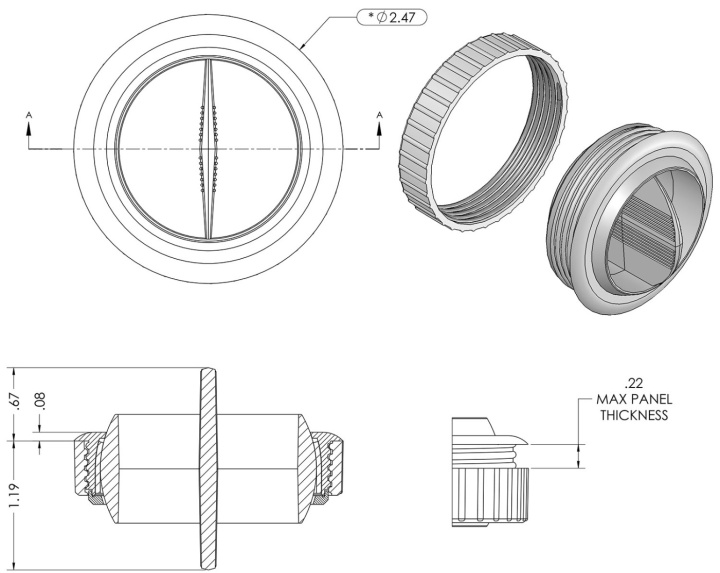

Specifications:
Type: Adjustable ball vent with single airflow control vane
Connection diameter: 63 mm (2.5")
Outer diameter: 62.8 mm
Panel cut-out diameter: 57.5 mm
Maximum panel thickness: 5.6 mm
Material: High-strength ABS plastic
Temperature range: -20°C to +80°C
