■Concept
The K20C engine was designed for use in a normal road car and features a catalytic converter, removing this converter eliminates its restricting effects which significantly increases the engine horsepower. HKS developed an extension pipe without the catalytic converter and a frontpipe that will connect it to a catback exhaust system.
■Features
- Removing catalytic converter results in a more linear boost and throttle response.
- Uses 3 inch pipes, compatible with HKS catback exhausts.
- A perfect addition to intake, intercooler and other HKS products for future ECU tuning and boostup.
- Decreases secondary exhaust gas pressure from turbine and reduces exhaust restriction.

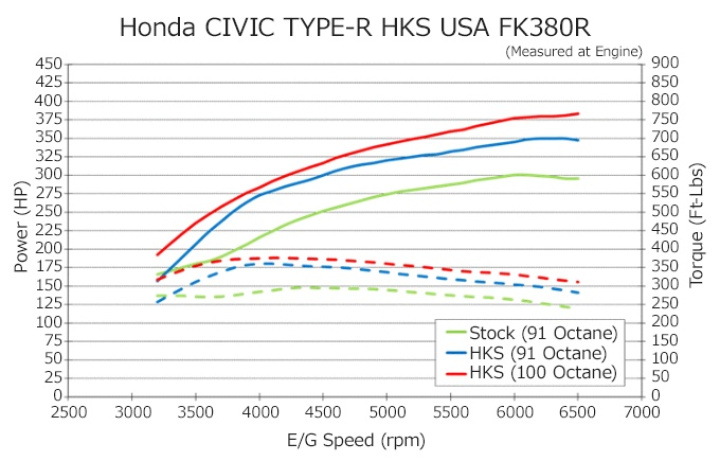

| Max Power | Max Torque | ||
| HKS (100 Octane) | 383HP / 6500rpm | HKS (100 Octane) | 376Ft-Lbs / 6500rpm |
| HKS (91 Octane) | 349HP / 630rpm | HKS (91 Octane) | 360Ft-Lbs / 6300rpm |
| Stcok (91 Octane) | 300HP / 6000rpm | Stcok (91 Octane) | 295Ft-Lbs / 4400rpm |
HKS Engine Spec
| Intake | HKS Carbon air intake system | Blow-off | HKS SSQV Kit |
| Piping | HKS Piping Kit | Intercooler | HKS Intercooler Kit |
| Oil cooler | HKS Oil cooler Kit | Downpipe | HKS Racing Extension |
| Exhaust | HKS LEGAMAX Premium | ECU | Honda Flash Pro |

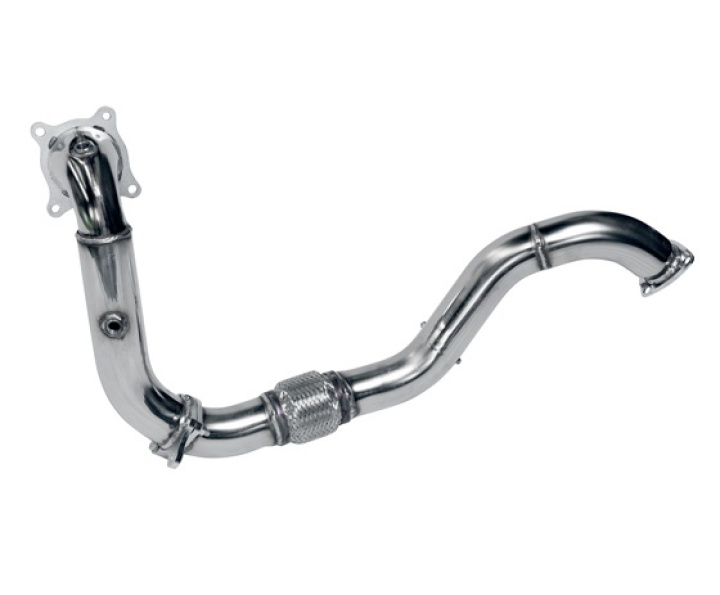

HKS Front Pipe / Downpipe
Diameter of pipe was studied and selected for each vehicle, engine performance and characteristics.Pipe is designed as straight as possible to reduce secondary exhaust gas pressure.Response of turbocharger is improved, and potential power of turbocharged vehicle comes out.
