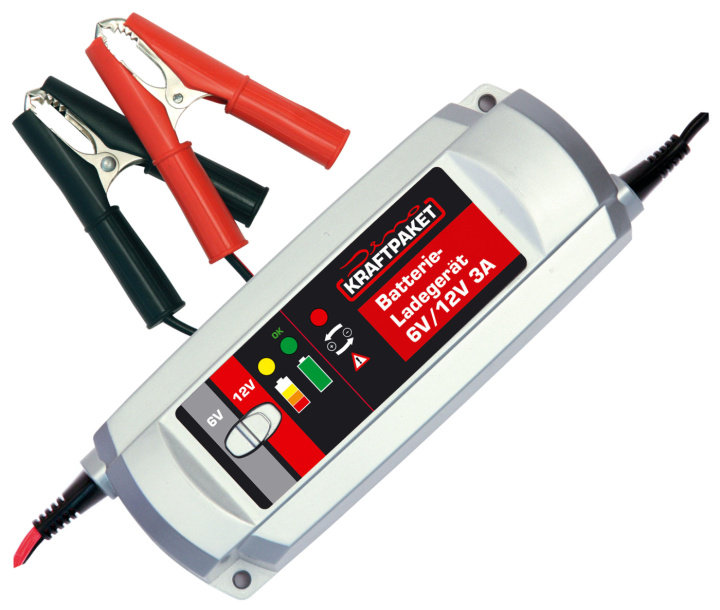

Dino KRAFTPAKET 3-Step Battery Charger - 6V/12V, 3A
This fully automatic 3-step battery charger from Dino KRAFTPAKET is designed to charge all common 6V and 12V lead-acid batteries (AGM, lead-acid, gel, CaCa, maintenance-free, open batteries). Recommended battery capacity for charging is 6Ah to 100Ah, with maintenance charging up to 160Ah.

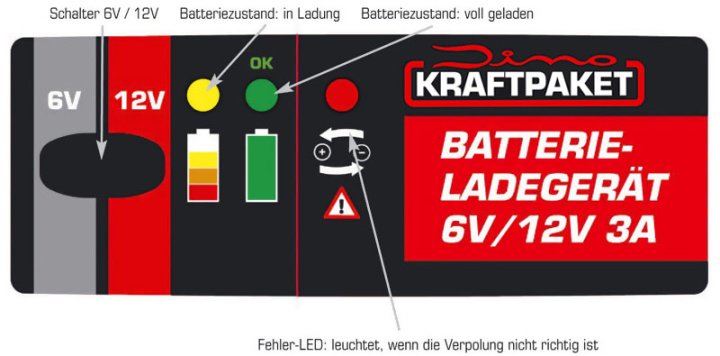

By selecting the desired charging voltage (6V or 12V), the microprocessor-controlled charging system takes care of the entire process automatically. The charger has an easy-to-read German LED display, showing the current charging status and any possible misconnection.
Charging Functions:
- Three Charging Steps:
- Step 1 – Constant Current: The battery is charged rapidly with constant current.
- Step 2 – Constant Voltage: The battery is charged with constant voltage and decreasing current until it reaches 95-100% charge.
- Step 3 – Maintenance Charge: Once the battery is fully charged, the charger switches to maintenance mode, keeping the battery optimally charged between 95-100%.
Protection and Safety: Equipped with protection against reverse polarity, overheating, overload, and short circuit, ensuring both your safety and the longevity of the charger.
Specifications:
- Charging Current: Max 3.0A
- Charging Programs: 2 (6V and 12V)
- Charging Voltage: 7.2V for 6V mode, 14.4V for 12V mode
- Charging Steps: 3
- Minimum Operating Voltage: 2.5V (charging not possible below this voltage)
- Current Ripple: < 4%
- Operating Temperature: 0°C to +40°C
- Power Supply: 220-240V, 50-60Hz
- Power Consumption: Max 0.6A at 230V
- Protection Class: IP20 (protected against solid objects larger than 12.5 mm)
- Safety System: Built-in protection against reverse polarity, overheating, overload, and short circuit
Compatibility: Suitable for 6V and 12V lead-acid batteries such as AGM, Gel, CaCa, maintenance-free, and open batteries. Recommended capacity for batteries is 6Ah-100Ah, and up to 160Ah for maintenance charging.
Dimensions and Weight:
- Weight: 493 g
- Dimensions: 18.5 x 7.5 x 4.5 cm
- Cable Lengths:
- Charging cable with clamps: approx. 1.5 meters
- Power cable: approx. 1.5 meters

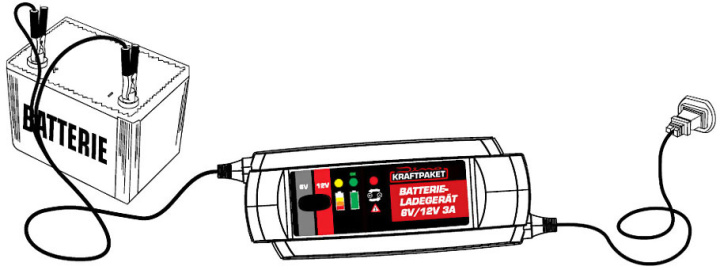

- Distance between the power outlet and car battery should be max 3 meters.

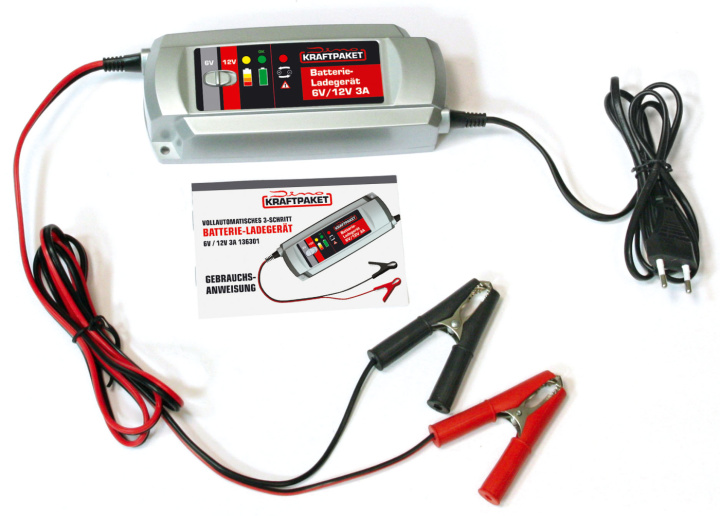

Included Accessories:
- 1 x 6V/12V battery charger (IP20 protection class)
- 1 x Illustrated German user manual
