Battery Charger 12v / 120ah - 5A Charge Capacity Dino Kraftpaket

Dino KRAFTPAKET 8-step Battery Charger 12V 5A

The Dino KRAFTPAKET fully automatic 8-step battery charger is ideal for charging and maintaining all common 12V lead-acid batteries, including AGM, gel, and start/stop batteries. Recommended for battery capacities between 10Ah and 120Ah, with maintenance charging for up to 200Ah, this charger is a versatile and reliable choice.

Features:

• Automatic 8-step charging: Includes processes such as desulfation, soft-start, and maintenance charging.
• Four charging modes: Choose from Auto, Motorcycle, Frost/AGM, and Refresh, which extends battery lifespan.
• Safety: Comprehensive protection against misuse, including overheating, overload, short-circuit, and reverse polarity protection.
• Display: Clear LED display shows charging status and potential errors.
• IP65-rated: Water- and dust-resistant, ideal for use in tough environments.

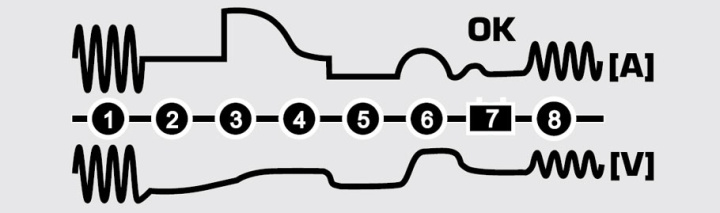

8 Charging Steps:

1. Desulfation: Restores battery capacity by removing sulfate deposits.
2. Soft-Start: Tests the battery’s chargeability and starts only if it is in good condition.
3. Charging up to 80%: Maximum current is used until the battery reaches 80% charge.
4. Charging up to 95%: Current is gradually reduced to achieve 95% charge.
5. Capacity Test: Tests the battery’s ability to hold a charge.
6. Refresh: Extends battery capacity and lifespan through controlled battery acid gassing.
7. Maintenance Charge: Maintains battery level without overcharging.
8. Pulse Charging: Restores full charge if it falls below 95% and prevents sulfation.

Technical Specifications:

• Charging Current: Max 5A
• Charging Modes: Auto, Motorcycle, AGM/Frost, Refresh
• Charging Voltage: 14.4V (Auto/Motorcycle), 14.7V (AGM), 15.8V (Refresh)
• Operating Temperature: -10°C to +40°C
• Protection Rating: IP65
• Recommended Battery Capacity: 10Ah – 120Ah, maintenance up to 200Ah

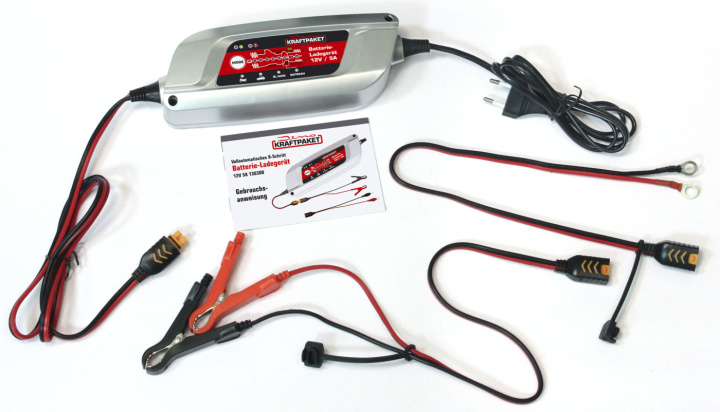

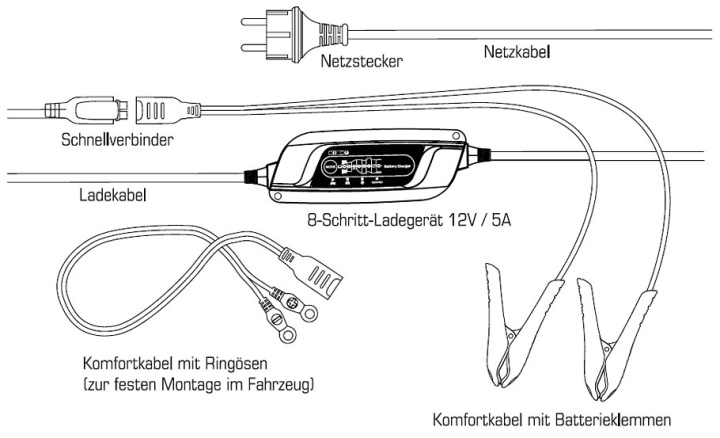

Delivery Contents:

• 1 x Battery Charger (IP65 protection)

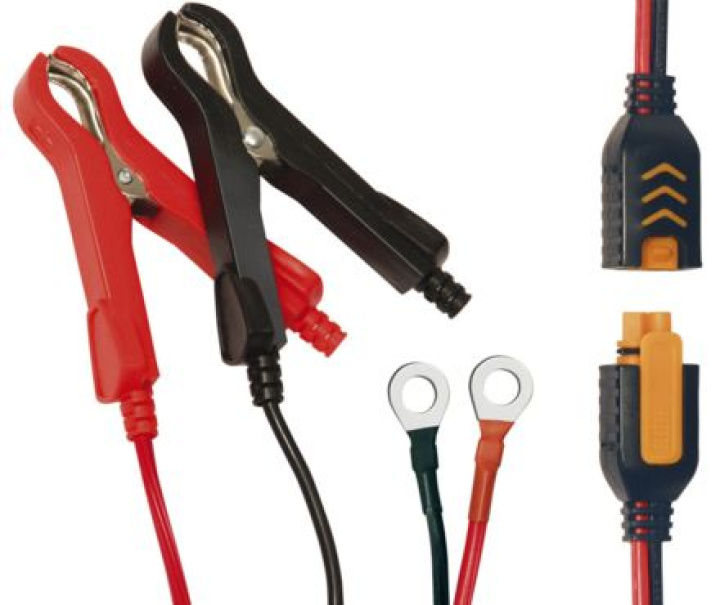

• 1 x Cable with battery clamps and quick-connect
• 1 x Cable for permanent installation with ring terminals (M8) and quick-connect
• 1 x Illustrated user manual
