Dino KRAFTPAKET Battery Maintainer – 6V/12V, 750mA
This fully automatic battery maintainer from Dino KRAFTPAKET is ideal for keeping lead-acid batteries (AGM, lead-acid, gel, CaCa, maintenance-free, open batteries) in optimal condition. The charger is compatible with all standard 6V and 12V lead-acid batteries, with recommended capacities from 2Ah to 240Ah.
When the battery voltage drops to 13V (for 12V batteries) or 6.5V (for 6V batteries), the maintenance charging process begins automatically. This charger can remain connected for extended periods, such as over winter, as it automatically starts and stops the charging cycles to preserve the battery’s performance.
Charging Functions:
- Automatic Voltage Detection: The microprocessor-controlled system identifies the battery voltage and condition to ensure optimal maintenance charging.
- Innovative Battery Trainer: Maintains the battery’s capacity and ensures your vehicle (car, motorcycle, scooter, ATV, boat) always has sufficient starting power.

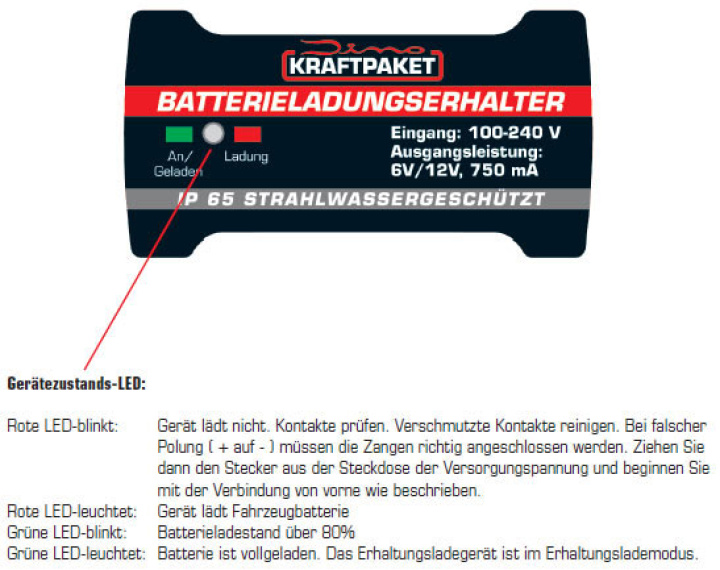

- LED Indicator: Displays the charger’s operating status, including full charge or any misconnection.
Protection and Safety: The battery maintainer is equipped with multiple protection systems, including reverse polarity protection, overheating protection, overload protection, and short-circuit protection, ensuring safe and reliable operation.
Specifications:
- Charging Current: Max 0.75A
- Charging Programs: 2 (6V and 12V)
- Charging Voltage: 13V-14.2V for 12V batteries, 6.5V-7.1V for 6V batteries
- Minimum Operating Voltage: 2V (charging not possible below this voltage)
- Operating Temperature: -10°C to +40°C
- Power Source: 100-240V, 50Hz
- Protection Class: IP65 (waterproof against water jets and dustproof)
Compatibility: Suitable for 6V and 12V lead-acid batteries such as AGM, Gel, CaCa, maintenance-free, and open batteries. Recommended battery capacity is between 2Ah and 240Ah.
Dimensions and Weight:
- Weight: 140g
- Dimensions: 10 x 5.5 x 3.5 cm

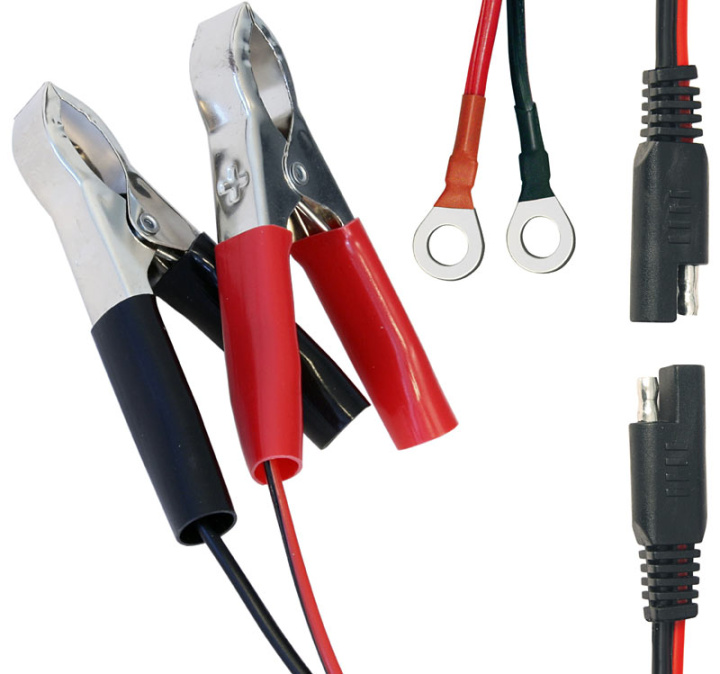

- Cable Lengths:
- Charging cable with clamps: approx. 1.9 meters
- Charging cable with ring terminals (M8): approx. 1.9 meters
- Power cable: approx. 0.5 meters
- Maximum distance between outlet and battery: 2.4 meters

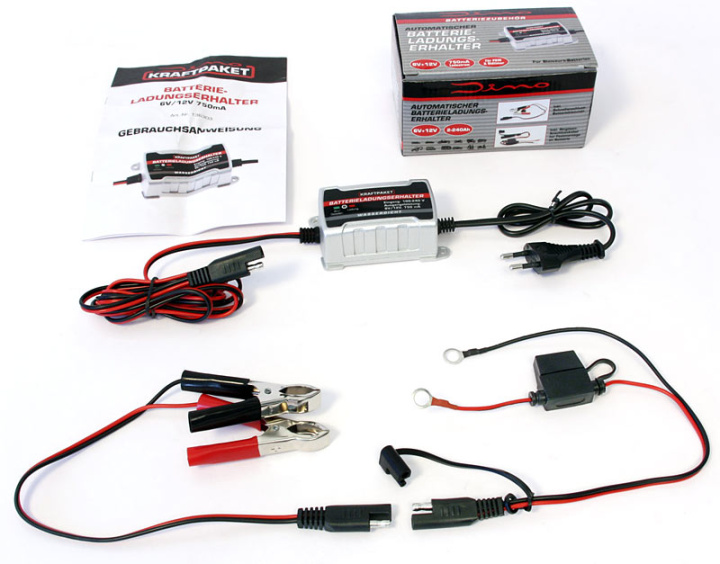

Included Accessories:
- 1 x 6V/12V battery maintainer (IP65 protection class)
- 1 x Charging cable with clamps and quick connector
- 1 x Charging cable for fixed installation with ring terminals (M8) and quick connector
- 1 x Illustrated German user manual
