Battery Charger 12v - 24v / 200ah - 10A Charge Capacity Dino Kraftpaket

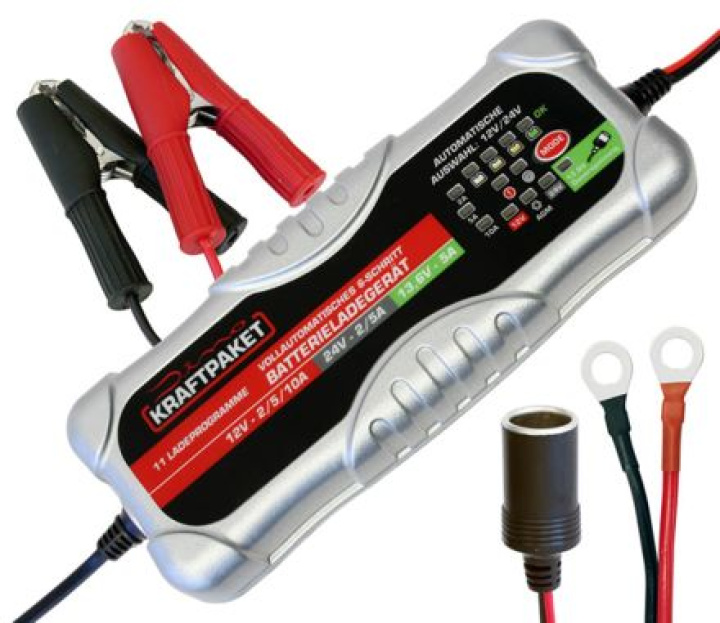

Dino KRAFTPAKET 6-Step Battery Charger 12V/24V 10A

The Dino KRAFTPAKET fully automatic 6-step battery charger is perfect for charging and maintaining both 12V and 24V lead-acid batteries, including AGM and gel batteries. Recommended for battery capacities from 10Ah to 200Ah, with maintenance charging up to 240Ah, this charger is both versatile and effective.

Features:

• Automatic 6-step charging: Includes processes like soft-start, desulfation, and maintenance charging.
• Selectable charging current: Adjust charging with options of 10A, 5A, or 2A.
• Constant voltage output: Equipped with a 12V socket for continuous voltage supply, ideal for battery changes without losing important electronic settings.
• Safety: Protection against overheating, overload, short circuit, and reverse polarity.
• IP20-rated: Protected against solid objects with a diameter of over 12.5 mm.

6 Charging Steps:

1. Soft-Start: Checks battery charge status before starting the charging process.
2. Desulfation: Removes sulfate deposits to restore battery capacity.
3. Charging Readiness: Charges the battery with a low current until it reaches a voltage of 10.5V (12V) or 21V (24V).
4. Charging up to 80%: Uses maximum current to reach 80% charge.
5. Full Charging to 100%: Reduces current to achieve 100% charge, then switches to maintenance mode.
6. Maintenance Charge Mode: Maintains battery charge through cyclic charging intervals.

Technical Specifications:

• Charging Current: Max 10A, with selectable currents of 2A, 5A, and 10A (12V) and 2A, 5A (24V).
• Charging Programs: 11 different programs available.
• Charging Voltage: Normal voltage of 14.4V (12V) and 28.8V (24V).
• Operating Temperature: -10°C to +40°C.
• Protection Class: IP20
• Recommended Battery Capacity: 10Ah – 200Ah, maintenance up to 240Ah.

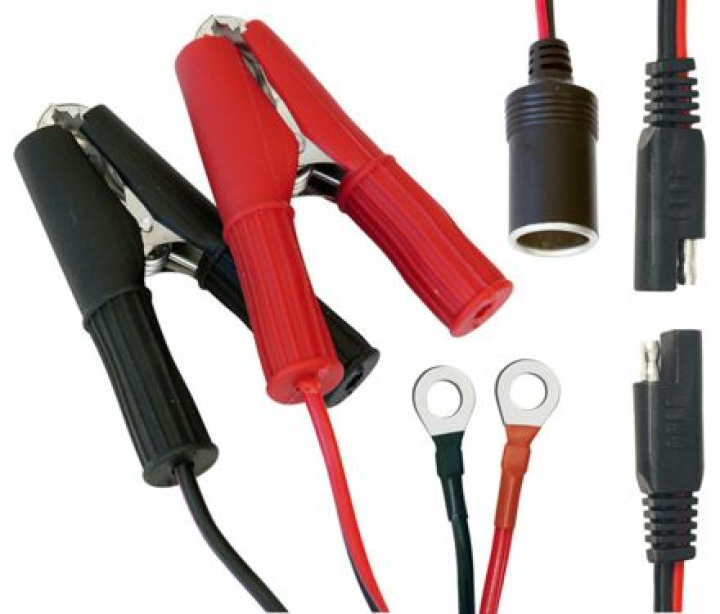

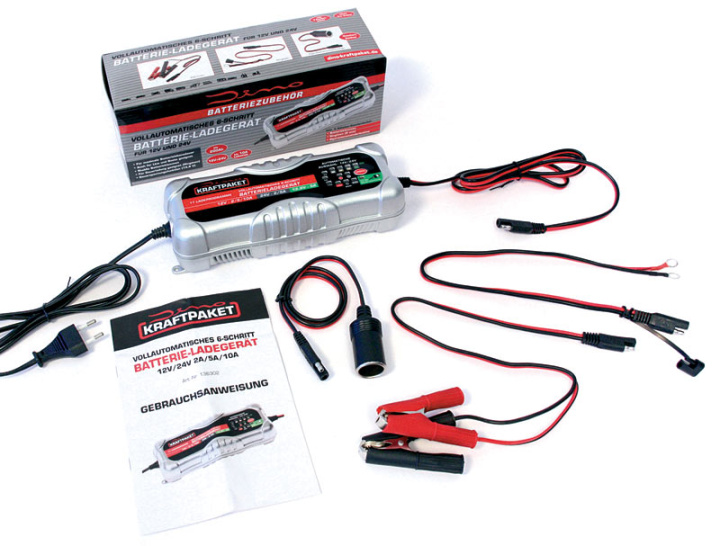

Delivery Contents:

• 1 x Battery Charger (IP20 protected)
• 1 x Cable with battery clamps and quick-connect
• 1 x Cable for permanent installation with ring terminals (M8) and quick-connect
• 1 x 12V socket for constant voltage output
• 1 x Illustrated user manual
