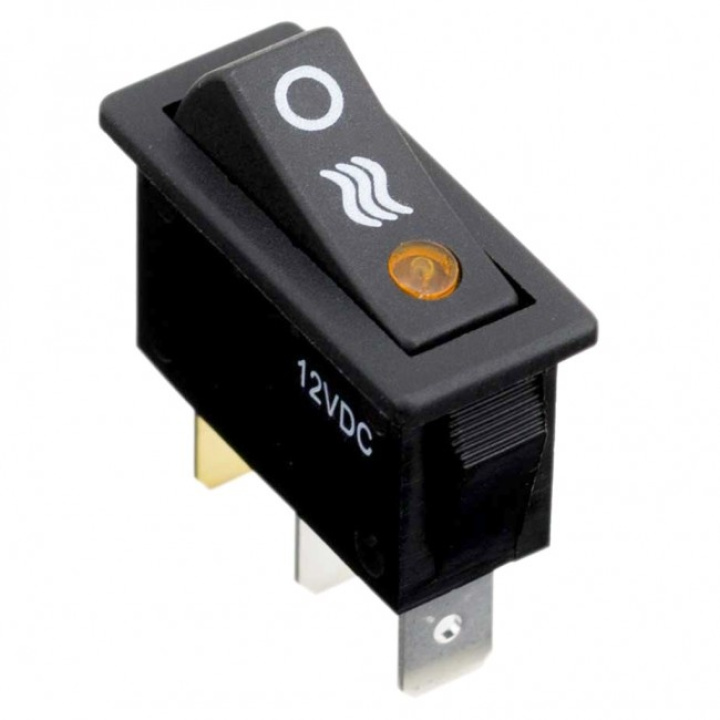

Heater Switch ON/OFF - Illuminated Rocker Switch with LED
Practical and compact rocker switch with an integrated LED indicator, designed for manual control of a vehicle's heater blower or other electric fans.
The switch features two fixed positions, ON/OFF, making it easy to turn the fan on and off. The built-in LED indicator illuminates when the switch is in the ON position, providing a clear visual indication that the function is activated.
Rated for up to 28V and 20A, the switch is suitable for both 12V and 24V electrical systems. Its compact design allows for easy installation in dashboards and control panels.
Ideal for passenger cars, motorsport, kit cars and custom-built vehicles.
Specifications:
Type: Illuminated rocker switch
Function: ON/OFF
Application: Control of heater blowers and other electric fans
Operating voltage: 6–28V DC
Maximum current: 20A
Indicator: Integrated LED
Terminal size: 6.3 mm spade terminals
Number of terminals: 3
Panel cut-out dimensions: 27.2 × 10.6 mm
Overall dimensions: 32 × 13.8 mm
Connections:
Terminal 1: Power supply
Terminal 2: To device
Terminal 3: Earth
