SB9-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monolocs hardened chrome-moly steel construction will provide years of service.
Specifications:

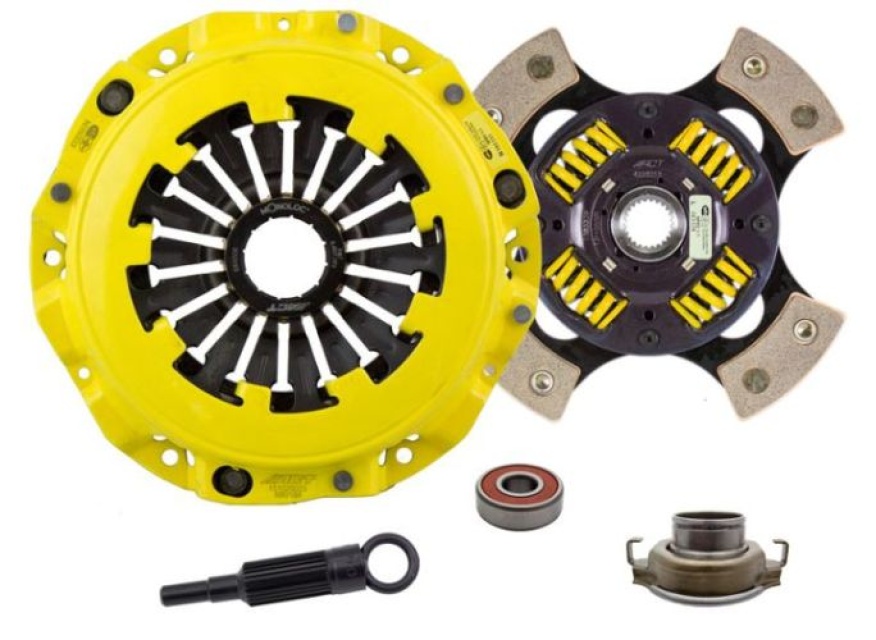

Kit includes:
- 4228218 ACT 4 Pad Sprung Race Disc
- AT90 ACT Alignment Tool
- PB1004 ACT Pilot Bearing
- RB601 ACT Release Bearing
- SB018X ACT Xtreme Pressure Plate
Kitet passar:
Subaru Impreza GT - WRX 1993-2000 2L F4 EJ20
Subaru Impreza WRX 2001-2005 2L F4 EJ20
Subaru Forester XT 2004-2005 2.5L H4 2458cc
