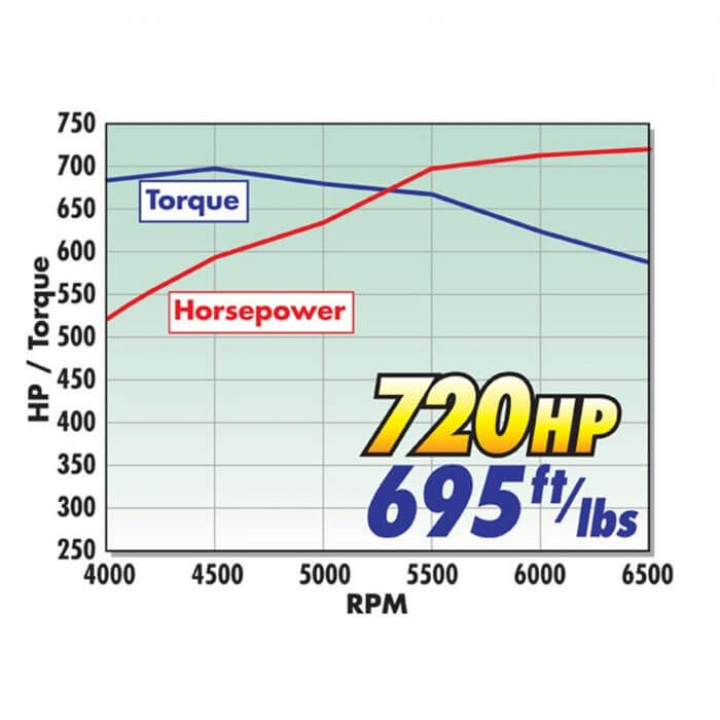

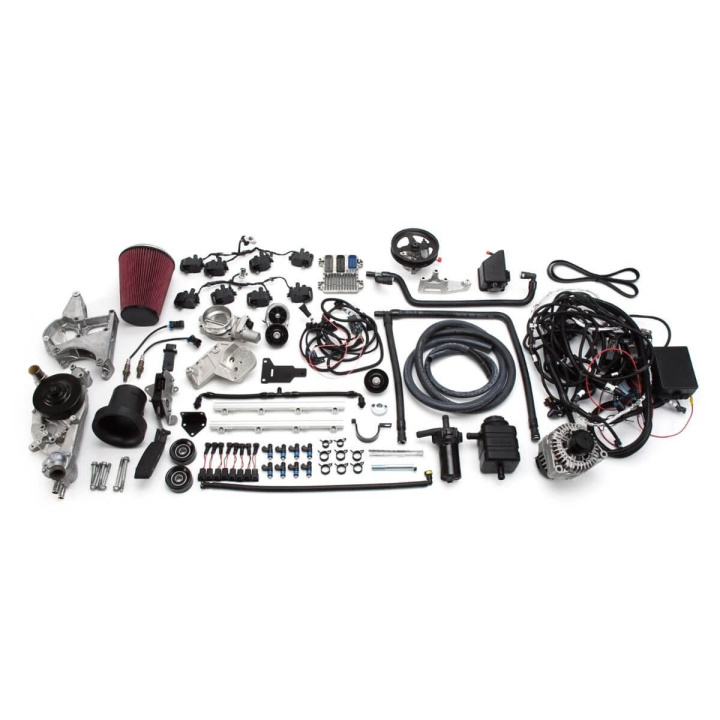

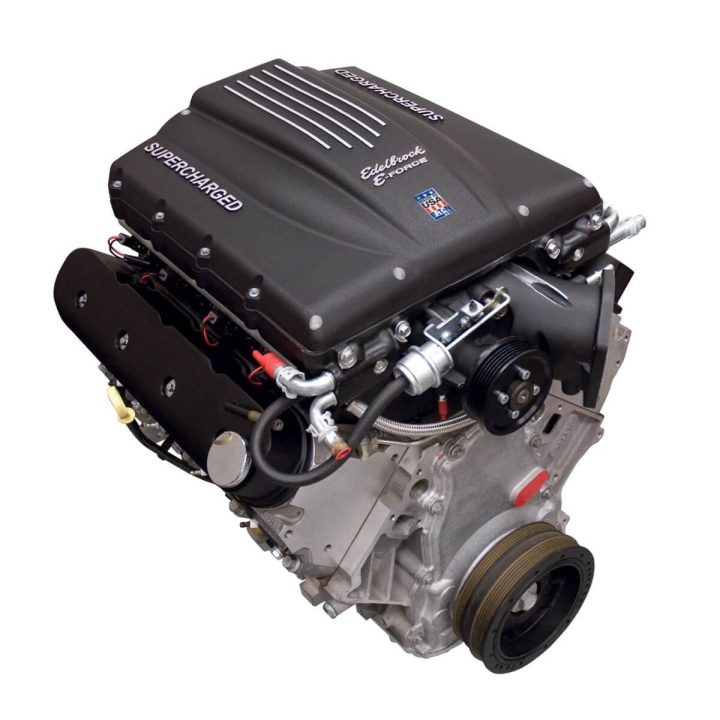

Edelbrock Supercharged LS 416 crate engine part #46760 produces 720 horsepower and 695 ft-lbs. of torque, on 91 octane pump gas. The foundation is a brand new, aluminum LS3 block with a forged and balanced Manley crankshaft, forged Manley H-Beam connecting rods and Manley forged aluminum pistons. Sitting on top is an Edelbrock supercharger system with Eaton TVS 2300cc/rev rotors. Also included are supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, mass air flow sensor (MAFS) housing and re-usable air filter. The supercharger on this engine has a drivers side throttle body orientation for ease of intake routing and a Corvette belt offset. Pair with universal heat exchangers for a complete installation.
Engine Specifications:
- Displacement: 416 c.i.d.;
- Bore: 4.065in; Stroke: 4.0in
- Horsepower: 720 hp
- Torque: 695 ft-lbs.
- Compression: 9.5:1
- Block: LS3 Aluminum
- Crankshaft: Forged 4340
- Pistons: Forged Aluminum - 18cc
- Rods: Forged H-Beam
- Camshafts: 215 Deg /247 Deg , .629/.656, 121 LSA
- Rocker Arms: LS3, 1.7 ratio
- Induction: Supercharger System #1540
- Cylinder Heads: GM with Edelbrock Valve Springs #5768
- Finish: Black powder coated
- Warranty: 2-year / Unlimited mileage
