Specifications:

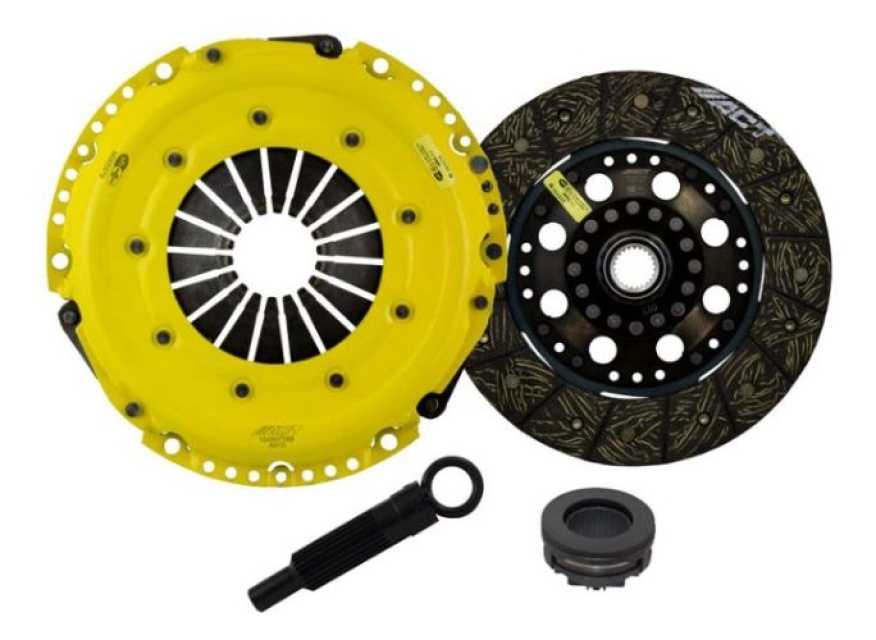

Kit includes:
- 3001202 ACT Perf Street Rigid Disc
- A010 ACT Heavy Duty Pressure Plate
- AT36 ACT Alignment Tool
- RB1301 ACT Release Bearing
Kitet passar:
Audi A4 B58D (1994-2001) 1.8L L4 1781ccAudi A4 B68E8H (2001-2006) 1.8L L4 1781cc
AA1-HDSD ACT HD/Perf Street Rigid Kit
Article nr:
|
actAA1-HDSD
Recommended for street and race use. Light to moderate pedal effort, smooth positive engagement, increased gear rattle.
1125 EUR
Delivery:
2-4 weeks
Talk to an expert
Need help? Check fitment, get personalized recommendations and tips.
- Product description
-
AA1-HDSD kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACTs street rigid-hub discs provide race-proven performance with street manageability. - Pressure Plate Type: Heavy Duty
- Release Bearing Included: Yes
- Clutch Disc Diameter: 9 IN
- Clutch Disc Diameter: 228 MM
- Disc Material: Organic
- Input Spline Quantity: 23
- Input Shaft Diameter: 0.9375 IN
- Alignment Tool Included: Yes
- Part Fitment Requirement: Must be used with SACHS dual-mass flywheel #DMF91115.
- Product Weight (lbs.): 12.0
- Title: ACT HD/Perf Street Rigid Kit
- Torque Capacity (ft/lbs.): 280
- Torque Capacity Over OE: 38%
Audi A4 B68E8H (2001-2006) 1.8L L4 1781ccProduct video
Technical specification
Article nr: actAA1-HDSDManufacture Partnumber: AA1-HDSD - Suitable for
- Brand
-
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
- Accessories & Spare Parts
- Guarantee
-
- Reviews:
-
To leave a review, you should have previously purchased this product and log in to your customer profile.
