ZX2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Specifications:

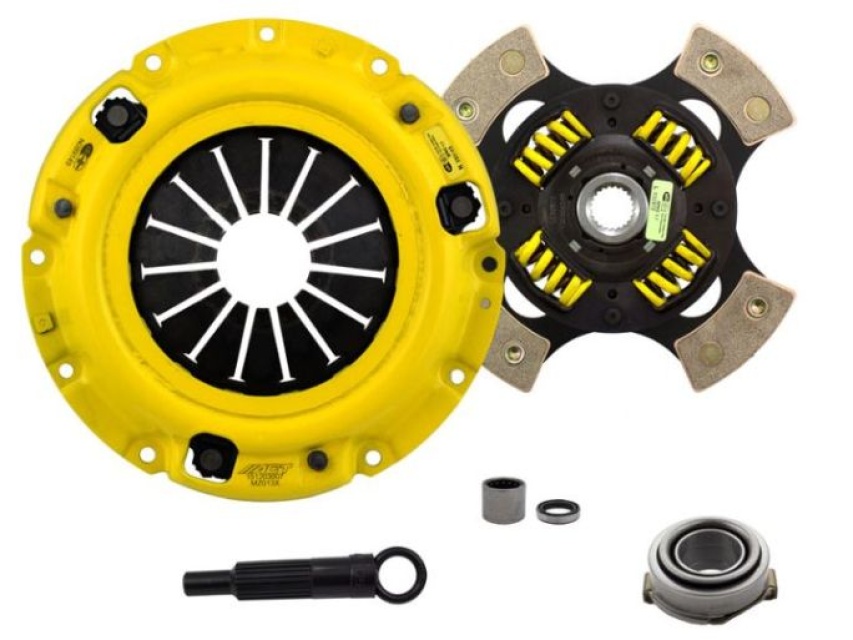

Kit includes:
- 4224205 ACT 4 Pad Sprung Race Disc
- AT05 ACT Alignment Tool
- MZ013X ACT Xtreme Pressure Plate
- PB1013 ACT Pilot Bearing
- RB091 ACT Release Bearing
Kitet passar:
Mazda RX-7 FC (1986-1991) 1.3L R2 1308cc NA
Mazda RX-7 SAFB (1983-1985) 1.1L R2 1146cc
