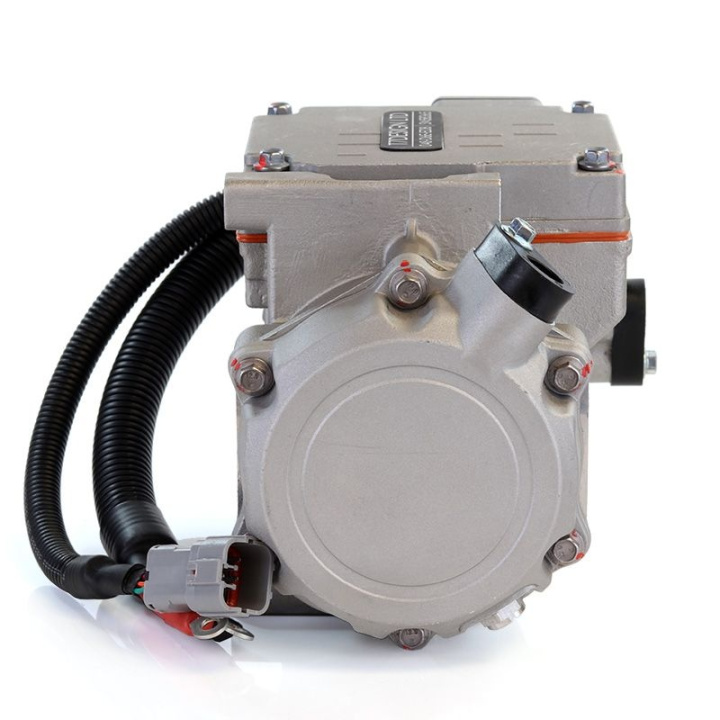

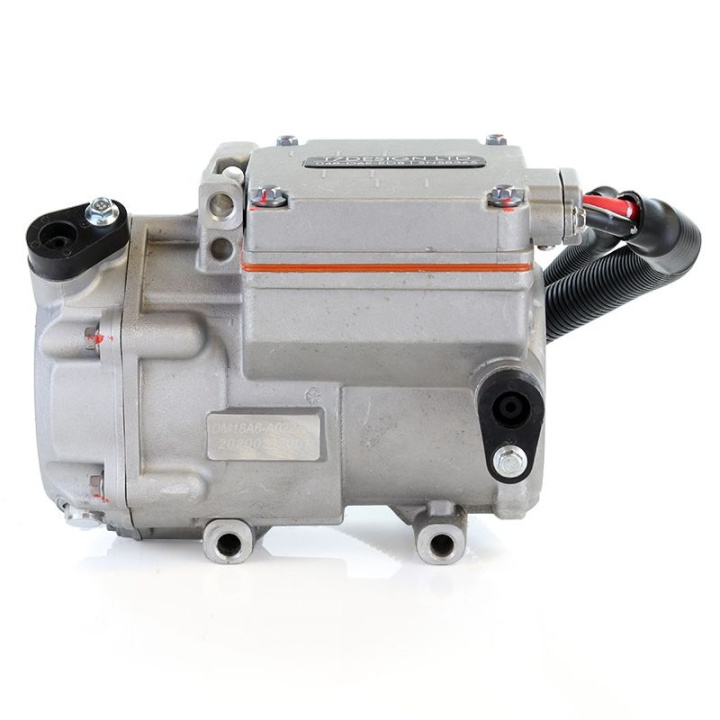

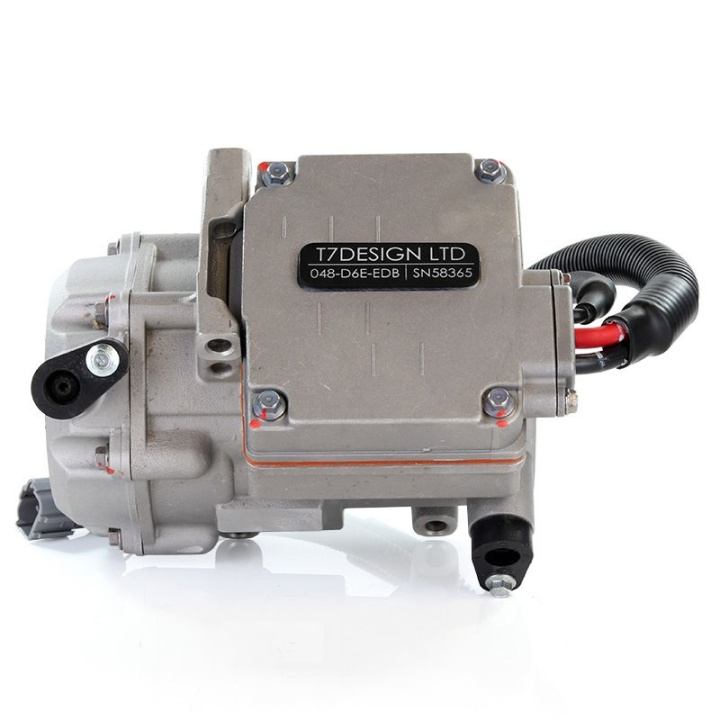

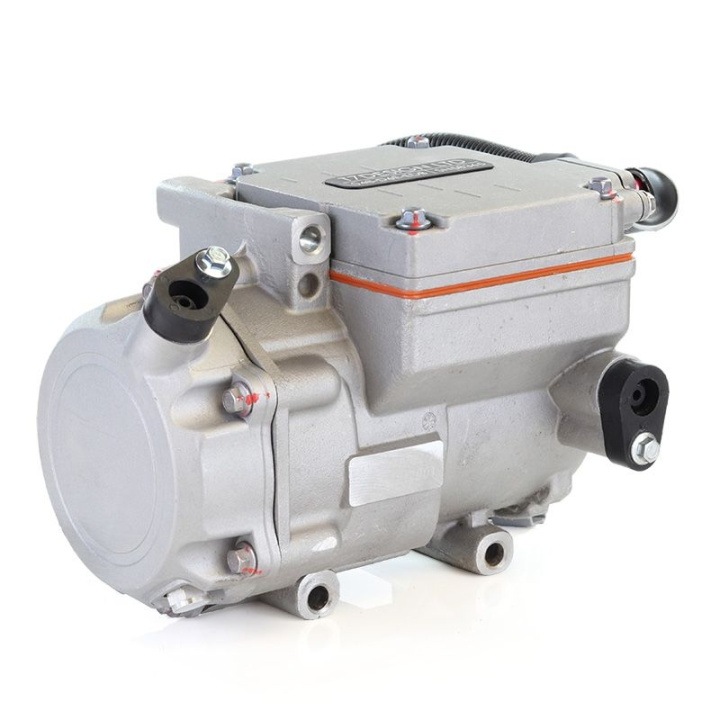

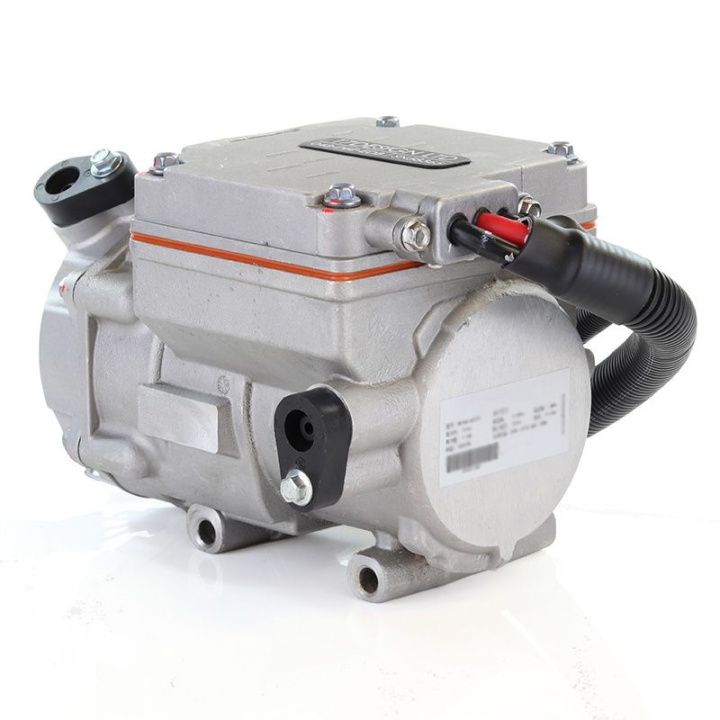

48v 18cc Electric AC Compressor - 3 Speed 3.3/3.8/4.5k

A fully electric 48v Air Conditioning Scroll Compressor with PWM speed control. These compact units are ideal for installation into applications where belt drives are not available or space is at a premium. This compressor is very simple to wire in, and can be operated with a PWM Controller.

Technical Specification

Performance	Metric	Imperial & Other
Refrigerating Capacity (3000rpm)	1.38 kw	4.7 K Btu/hr
Electrical Consumption	0.74 kw
Current @ 48 VDC	15.4a
Refrigerating Capacity (4000rpm)	1.89 kw	6.4 K Btu/hr
Electrical Consumption	0.99 kw
Current @ 48 VDC	20.6a
Refrigerating Capacity (4500rpm)	2.15 kw	7.3 K Btu/hr
Input Power	1.15 kw
Current @ 12 VDC	96.0A

Operating Range	Metric	Imperial & Other
Evaporator Temperature	-17 °C ~ 21 °C	2 °F ~ 70 °F
Condenser Temperature	25 °C ~ 75 °C	77 °F ~ 167 °F
Start Temperature	-32 °C ~ 70 °C	-26 °F ~ 158 °F
Working Temperature	-32 °C ~ 100 °C	-26 °F ~ 212 °F
Storage Temperature	-40 °C ~ 105 °C	-40 °F ~ 221 °F
Motor Overheat Protection	100 °C	212 °F
Refrigerant	R134a, R1234YF
Operating Voltage Range	35 - 65 VDC
Maximum Mounting Rotation	8°
Maximum Mounting Tilt	5°

Compressor Parameters	Metric	Imperial & Other
Discharge Capacity	18.0 cc/rev	1.10 ci/rev
Weight	5.4 kg	11.9 lbs
Safety Valve Pressure	4.0 Mpa	580 psi
Compressor Oil Capacity	100 cc Zerol Ester 68SL Oil
Refrigerant Capacity	500g
Compressor Speed Range	2000 - 4500 rpm
Protection Rating	IP67
Part Number	279-81F-880

Wiring Information

This electric AC Compressor is very simple to wire in, with 2 Looms in total; one for power and one for control two rocker switches or a 4 position rotary switch required to control the compressor speed.

Port	Wire Colour	Definition
Power	Orange	48v DC positive input
Earth	Orange	48v DC negative input

Port	Wire Colour	Definition
12v Positive	Red	12c DC positive input
12v Negative	Black	12v DC negative input
STB	Brown	The AC start-stop enable signal input, high level or floating is closed (OFF), low level is open (ON). Input level range: high level range 5-15v DC, 15mA; low level range 0-0.8v DC, 22mA
PWM In	Grey	Air conditioner speed control signal input, the signal frequency is 1kHz PWM duty cycle signal. Input level range: high level range 5-15vDC, 20mA; low level range 0-.08vDC, 15mA. Speed adjustment range: 2000-6000 rpm, corresponding to PWM duty cycle 5%-95% linear change. 2000rpm corresponds to positive duty cycle of 5% and 6000rpm corresponds to positive duty cycle of 95%.
