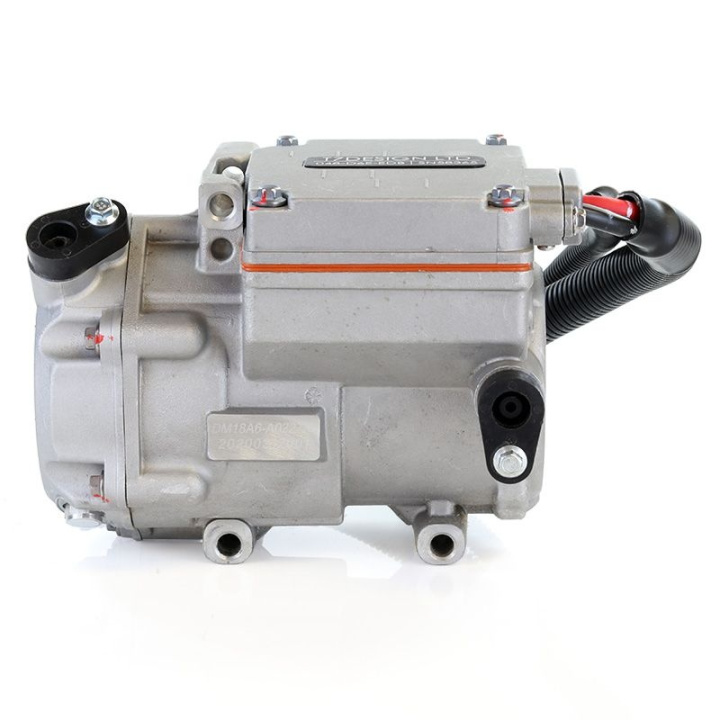

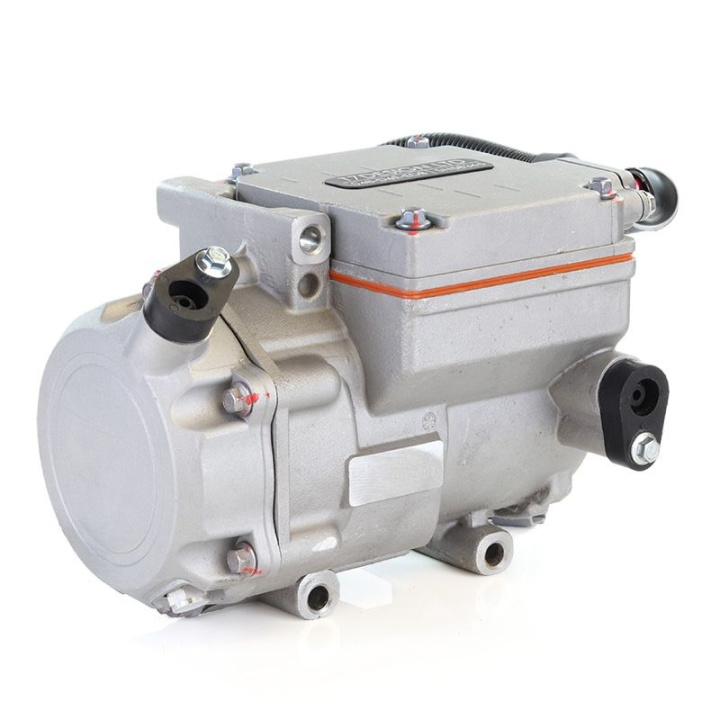

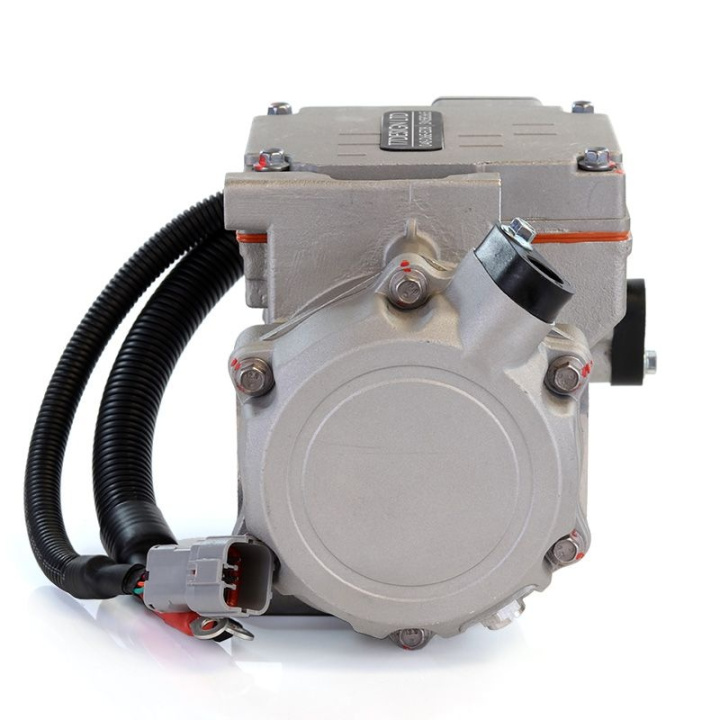

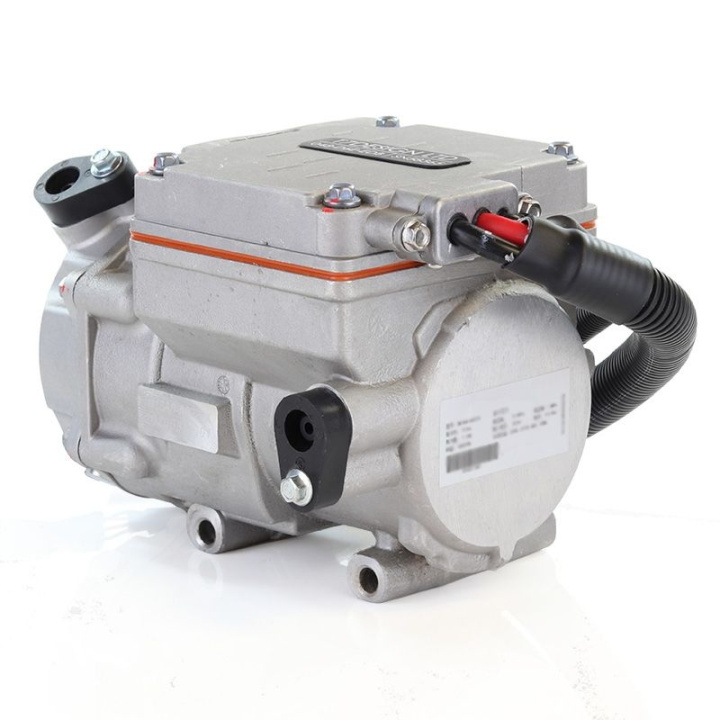

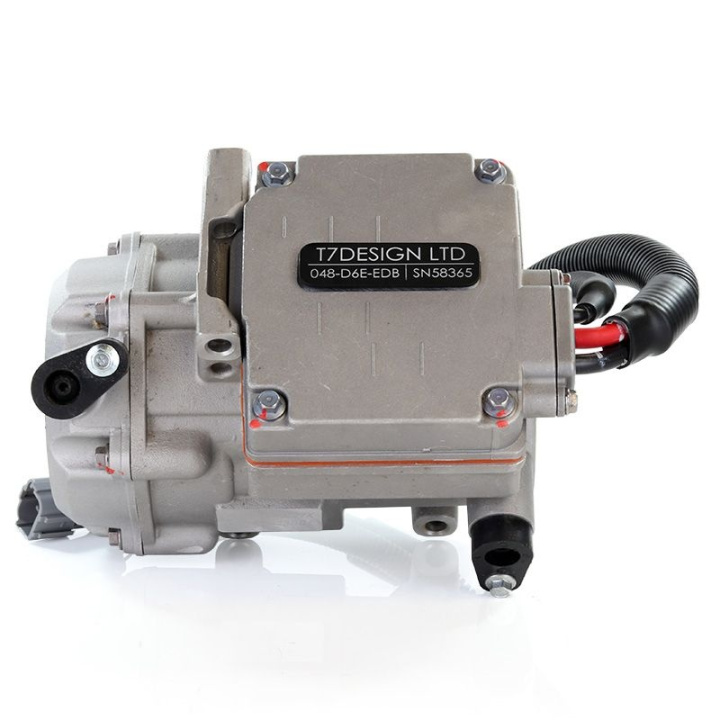

12v 18cc Electric AC Compressor - PWM 2-4.5k
A fully electric 12v 18cc PWM Air Conditioning Scroll Compressor. These compact units are ideal for installation into applications where belt drives are not available or space is at a premium. This compressor is very simple to wire in, and is PWM controlled.
| Performance | Metric | Imperial & Other |
| Refrigerating Capacity (2000rpm) | 0.92 kw | 3.15K Btu/hr |
| Input Power | 0.49 kw | |
| Current @ 12 VDC | 40.0A | |
| Refrigerating Capacity (3000rpm) | 1.38 kw | 4.7K Btu/hr |
| Input Power | 0.74 kw | |
| Current @ 12 VDC | 60A | |
| Refrigerating Capacity (4500rpm) | 2.15 kw | 7.3 K Btu/hr |
| Input Power | 1.15 kw | |
| Current @ 12 VDC | 96.0A | |
| Operating Range | Metric | Imperial & Other |
| Evaporator Temperature | -17 °C ~ 21 °C | 2 °F ~ 70 °F |
| Condenser Temperature | 25 °C ~ 75 °C | 77 °F ~ 167 °F |
| Start Temperature | -32 °C ~ 70 °C | -26 °F ~ 158 °F |
| Working Temperature | -32 °C ~ 100 °C | -26 °F ~ 212 °F |
| Storage Temperature | -40 °C ~ 105 °C | -40 °F ~ 221 °F |
| Compression Ratio | 8.0 MAX | |
| Refrigerant | R134a | |
| Compressor Parameters | Metric | Imperial & Other |
| Discharge Capacity | 18.0 cc/rev | 1.10 ci/rev |
| Weight | 5.4 kg | 12.0 lbs |
| Safety Valve Pressure | 4.0 Mpa | 580 psi |
| Compressor Oil Capacity | 100 cc PVE Oil | |
| Refrigerant Capacity | 650cc | |
| Compressor Speed Range | 1800 - 4500 rpm | |
| Protection Rating | IP67 | |
| Part Number | 210-EE4-345 | |
