24v 18cc Electric AC Compressor - PWM 2-6k

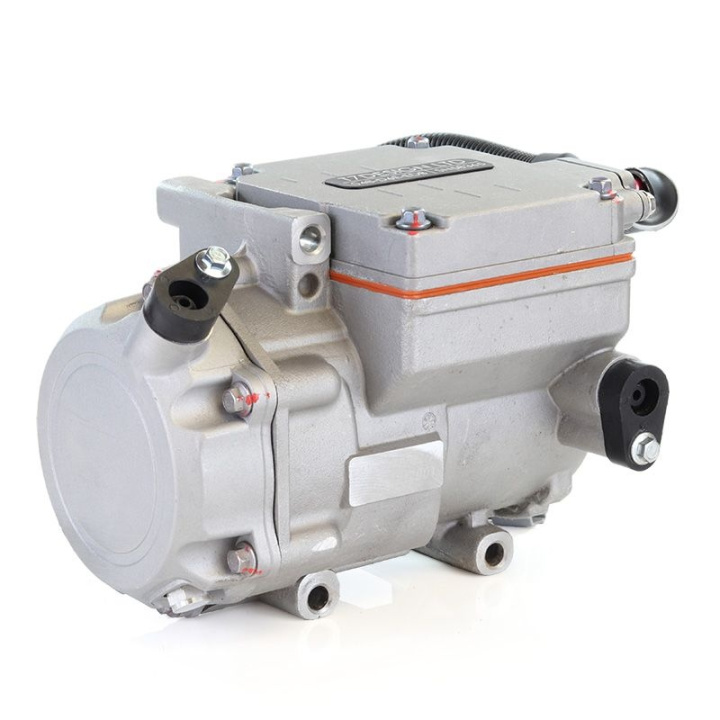

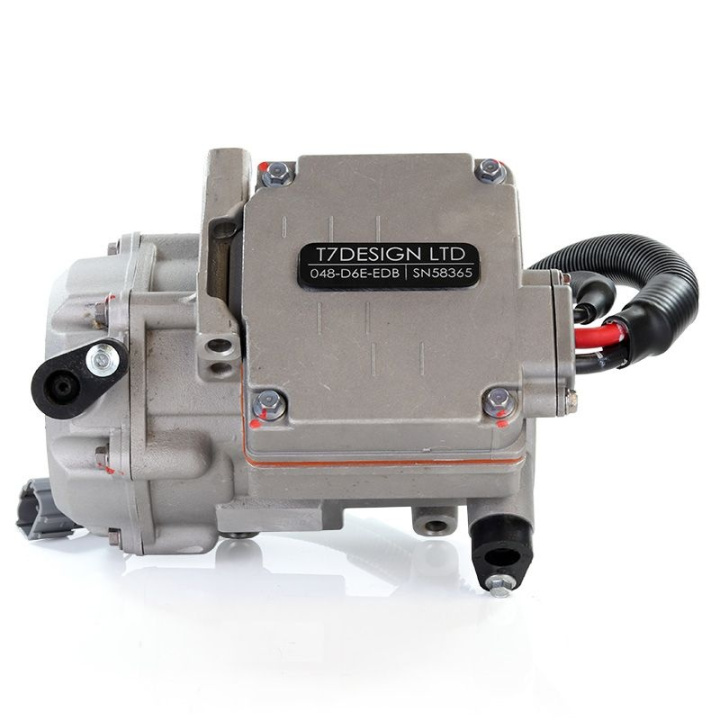

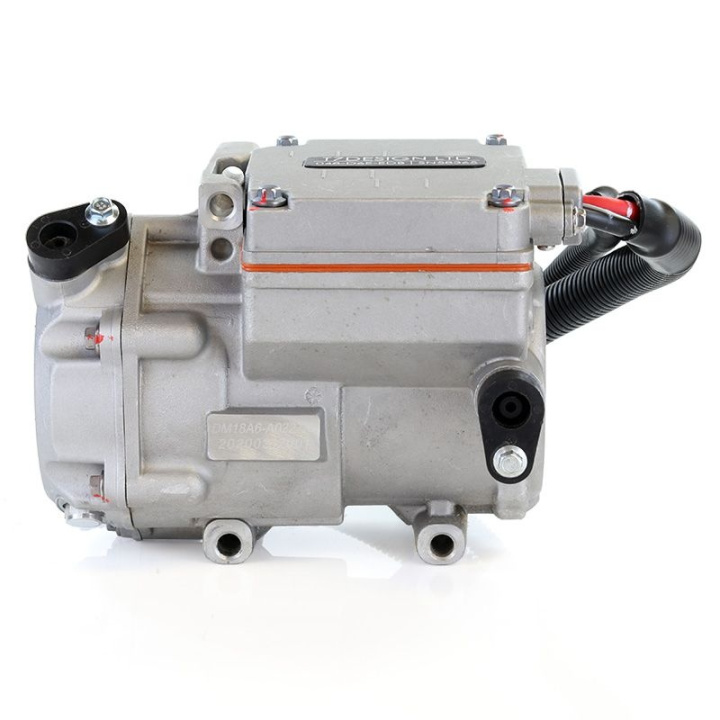

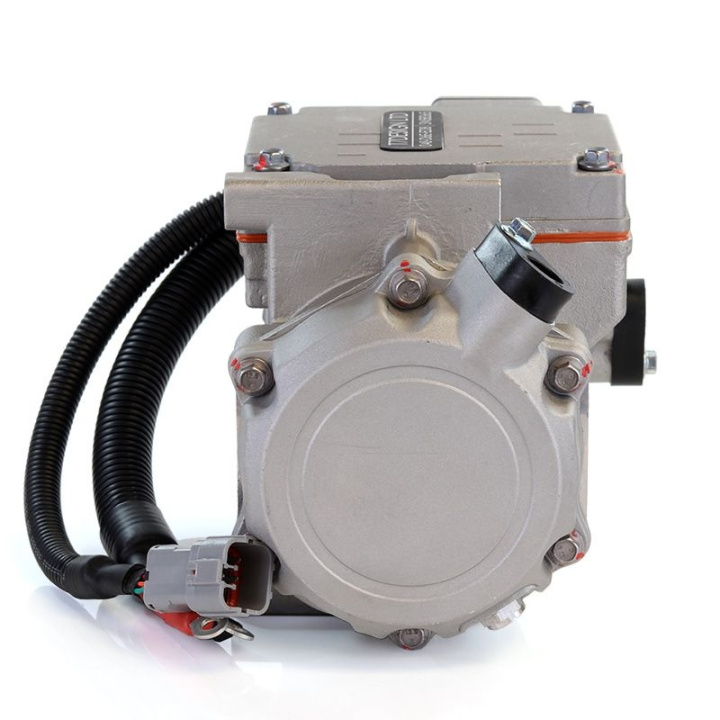

A fully electric 24v 18cc PWM Air Conditioning Scroll Compressor. These compact units are ideal for installation into applications where belt drives are not available or space is at a premium. This compressor is very simple to wire in, and is PWM controlled.
| Performance | Metric | Imperial & Other |
| Refrigerating Capacity (3000rpm) | 1.38 kw | 3.13K Btu/hr |
| Input Power | 0.74 kw |
| Current | 30.0A |
| Refrigerating Capacity (4000rpm) | 1.89 kw | 6.4K Btu/hr |
| Input Power | 0.99 kw |
| Current | 43.0A |
| Refrigerating Capacity (6000rpm) | 2.9 kw | 9.9K Btu/hr |
| Input Power | 1.16 kw |
| Current | 65.0A |
| Operating Range | Metric | Imperial & Other |
| Evaporator Temperature | -11 °C ~ 21 °C | 12 °F ~ 70 °F |
| Condenser Temperature | 25 °C ~ 75 °C | 77 °F ~ 167 °F |
| Start Temperature | -32 °C ~ 70 °C | -26 °F ~ 158 °F |
| Working Temperature | -32 °C ~ 100 °C | -26 °F ~ 212 °F |
| Storage Temperature | -40 °C ~ 105 °C | -40 °F ~ 221 °F |
| Compression Ratio | 8.0 MAX |
| Refrigerant | R134a |
| Compressor Parameters | Metric | Imperial & Other |
| Discharge Capacity | 18.0 cc/rev | 1.10 ci/rev |
| Weight | 5.4 kg | 12.0 lbs |
| Safety Valve Pressure | 4.0 Mpa | 580 psi |
| Compressor Oil Capacity | 100cc PVE Oil |
| Refrigerant Capacity | 650g |
| Compressor Speed Range | 2000 - 6000 rpm |
| Protection Rating | IP67 |
| Part Number | D53-64E-C67 |
This electric AC Compressor is very simple to wire in, with 2 Looms in total; one for power and one for control two rocker switches or a 4 position rotary switch required to control the compressor speed.
| Use | Wire Colour | Recommended Wire Size |
| Power | Orange | 22 AWG |
| Earth | Orange | 22 AWG |
| Use | Wire Colour | Recommended Wire Size |
| 12v Positive | Red | 10 AWG |
| 12v Negative | Black | 10 AWG |
| STB | Brown | 10 AWG |
| PWM In | Grey | 10 AWG |
| PWM Out | White | 10 AWG |
| TX | Blue | 10 AWG |
