HKS Power Editor - Toyota GR Yaris

Name: Yaris GR 20- Power Editor HKS
Brand: HKS
SKU: 42018-AT018
Price: 604 EUR
Availability: InStock

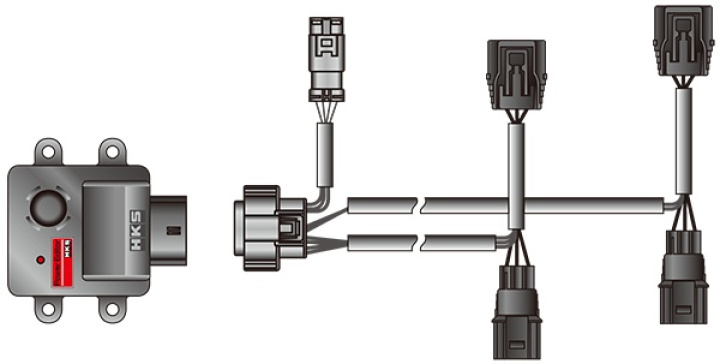

The HKS Power Editor is a vehicle-specific boost controller designed for the Toyota GR Yaris equipped with an electronically controlled turbocharger. Installed directly between the factory pressure sensor and the original wiring harness, it optimises the boost pressure signal to increase turbo boost through the factory engine management system. The result is improved engine performance, increased torque, and quicker throttle response without the need to reprogram the factory ECU.

The Power Editor comes with preloaded HKS calibration data specifically developed for the GR Yaris, providing a simple plug-and-play installation. For users who require additional fine-tuning, the unit is compatible with HKS Easy Writer software, allowing supported calibration adjustments. A supplied bypass connector makes it easy to return the vehicle to the factory signal configuration without removing the complete wiring installation.

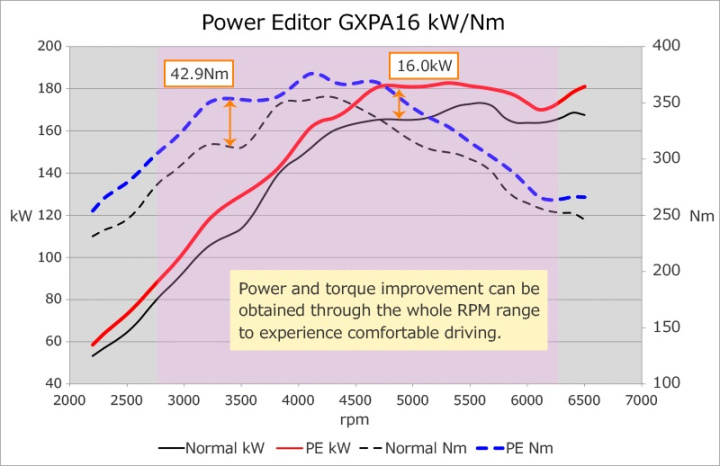

During HKS testing, maximum engine output increased from 235.6 PS to 248.4 PS, while peak torque rose from 355.4 Nm to 375.8 Nm. The highest recorded power gain was 21.7 PS, with reference boost pressure increasing from 148.1 kPa to 167.7 kPa, delivering stronger acceleration and enhanced power delivery throughout the rev range.

Features

Fits the Toyota GR Yaris.
HKS Power Editor vehicle-specific boost controller.

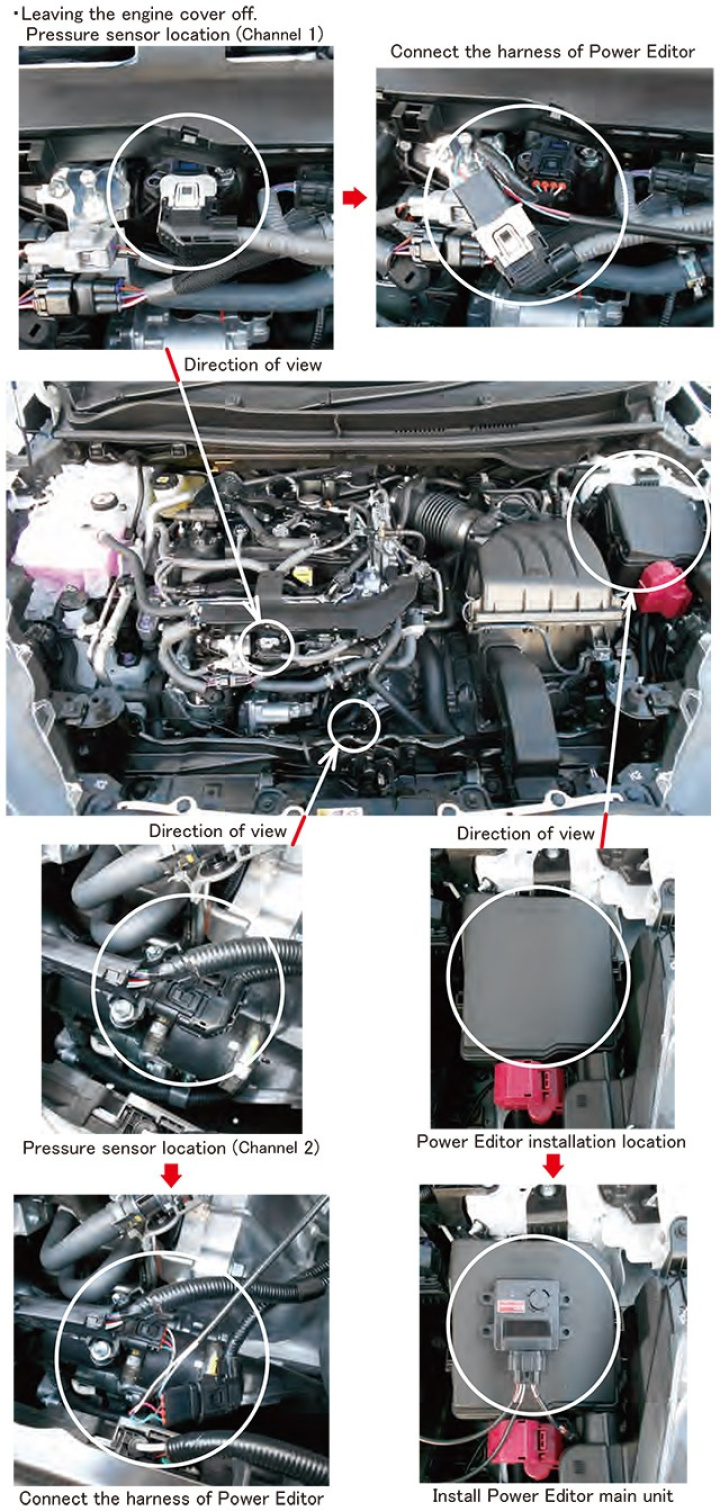

Plug-and-play installation between the pressure sensor and the factory wiring harness.
Preloaded HKS calibration data for optimised boost pressure.
Improved engine performance, increased torque, and quicker throttle response.

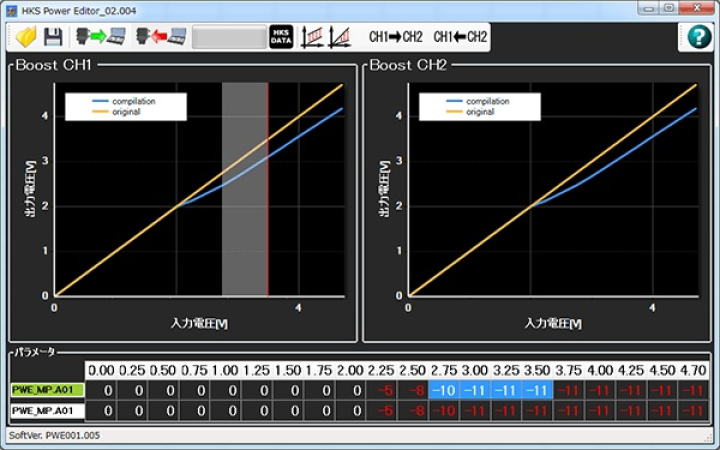

Compatible with HKS Easy Writer software for supported data adjustments.
Integrated status LED indicating unit operation.
Includes a bypass connector for easy return to the factory signal configuration.

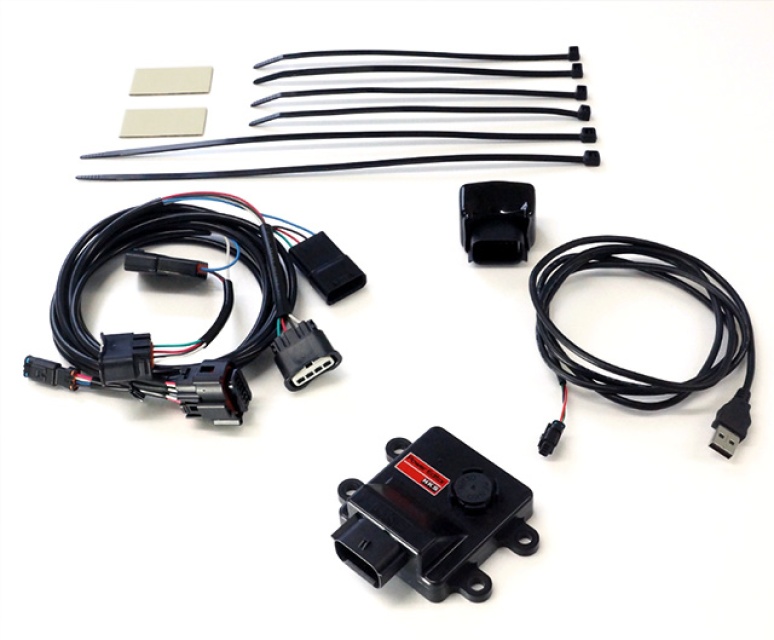

USB cable included.

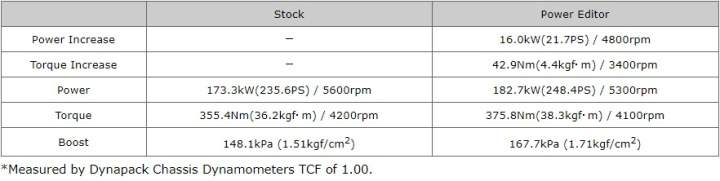

HKS test results:
- Maximum output: 235.6 PS → 248.4 PS
- Maximum torque: 355.4 Nm → 375.8 Nm
- Peak recorded power increase: +21.7 PS
- Peak recorded torque increase: +42.9 Nm
- Reference boost pressure: 148.1 kPa → 167.7 kPa

Product video

Technical specification

Article nr:

42018-AT018

Manufacture Partnumber:

42018-AT018
