ACT Advanced Clutch Technology

VW5-HDG6 ACT HD/Race Sprung 6 Pad

Article nr:
actVW5-HDG6
|
(0 reviews)
Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
2190 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock:

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description

  • VW5-HDG6 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

    Specifications:

  • Flywheel Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter: 240 MM
  • Clutch Disc Diameter: 9.4 IN
  • Disc Material: Ceramic
  • Input Spline Quantity: 23
  • Input Shaft Diameter: 0.9375 IN
  • Alignment Tool Included: Yes
  • Flywheel Type: Streetlite
  • Part Fitment Requirement: Must be used with ACT flywheel (included in kit).
  • Product Weight (lbs.): 30.2
  • Title: ACT HD/Race Sprung 6 Pad
  • Torque Capacity (ft/lbs.): 525
  • Torque Capacity Over OE: 73%

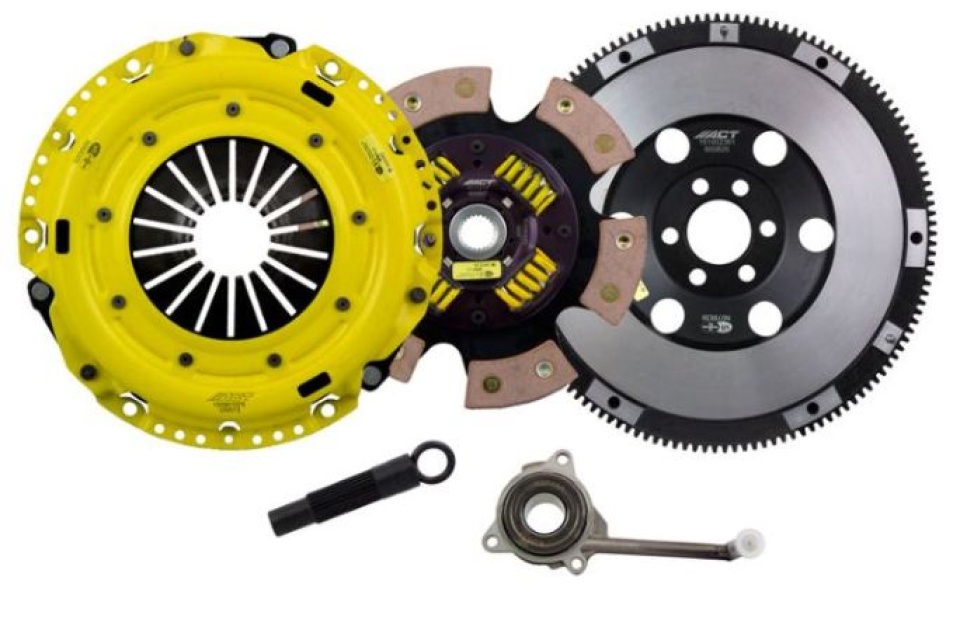

    Kit includes:

    • 600820 ACT XACT Flywheel Streetlite
    • 6240527 ACT 6 Pad Sprung Race Disc
    • AT126 ACT Alignment Tool
    • RB3743A ACT Release Bearing
    • VW013 ACT Heavy Duty Pressure Plate

    Kitet passar:

    Audi TT 8N (1998-2006) 1.8T 6 Speed Quattro
    Volkswagen Golf IV GTI - 6 Speed 1.8L Turbo L4 1781cc AWP
    Volkswagen Jetta IV 2004-2005 GLI 1.8L L4 1781cc AWP Turbo
    Audi A3 8L1 (1996-2003) 1.8T 6 Speed
    Audi A3 8L1 (1996-2003) 1.8T 6 Speed Quattro
    Audi S3 8L1 (2001-2003) 1.8T 6 Speed
    Audi S3 8L1 (1999-2002) 1.8T 6 Speed Quattro
    Audi TT 8N3 1.8T 6 Speed
    Seat Leon 20v T 1M1 2000 1.8L I4 132kw. 180hp
    Seat Leon 20v T 1M1 2001 1.8L I4 132kw. 180hp
    Seat Leon 20v T 1M1 2002 1.8L I4 132kw. 180hp
    Seat Leon 20v T 1M1 2003 1.8L I4 132kw. 180hp
    Seat Leon 20v T 1M1 2004 1.8L I4 132kw. 180hp
    Seat Leon 20v T 1M1 2005 1.8L I4 132kw. 180hp
    Seat Leon 20v T 1M1 2006 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2000 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2001 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2002 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2003 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2004 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2005 1.8L I4 132kw. 180hp
    Seat Leon 20v T4 1M1 2006 1.8L I4 132kw. 180hp
    Seat Leon Cupra R 1M1 2002 1.8L I4 154kw. 209hp
    Seat Leon Cupra R 1M1 2003 1.8L I4 154kw. 209hp
    Seat Leon Cupra R 1M1 2004 1.8L I4 154kw. 209hp
    Seat Leon Cupra R 1M1 2005 1.8L I4 154kw. 209hp
    Seat Leon Cupra R 1M1 2006 1.8L I4 154kw. 209hp
    Seat Leon Cupra R 1M1 2004 1.8L I4 165kw. 225hp
    Seat Leon Cupra R 1M1 2005 1.8L I4 165kw. 225hp
    Seat Leon Cupra R 1M1 2006 1.8L I4 165kw. 225hp
    Seat Toledo Mk II 1M2 2002 1.8L I4 132kw. 180hp
    Seat Toledo Mk II 1M2 2003 1.8L I4 132kw. 180hp
    Seat Toledo Mk II 1M2 2004 1.8L I4 132kw. 180hp
    Seat Toledo Mk II 1M2 2005 1.8L I4 132kw. 180hp
    Seat Toledo Mk II 1M2 2006 1.8L I4 132kw. 180hp
    Volkswagen Bora IV 1J2 1998-2005 1.8L Turbo 132kw. 180hp
    Volkswagen Jetta (Bora) IV 1J6 2002 1.8L I4 132kw. 180hp
    Volkswagen Jetta (Bora) IV 1J6 2003 1.8L I4 132kw. 180hp
    Volkswagen Jetta (Bora) IV 1J6 2004 1.8L I4 132kw. 180hp
    Volkswagen Jetta (Bora) IV 1J6 2005 1.8L I4 132kw. 180hp

    • Product video

    Technical specification

    Article nr:
    actVW5-HDG6
    Manufacture Partnumber: VW5-HDG6
  • Suitable for
  • Brand
  • ACT Advanced Clutch Technology Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
