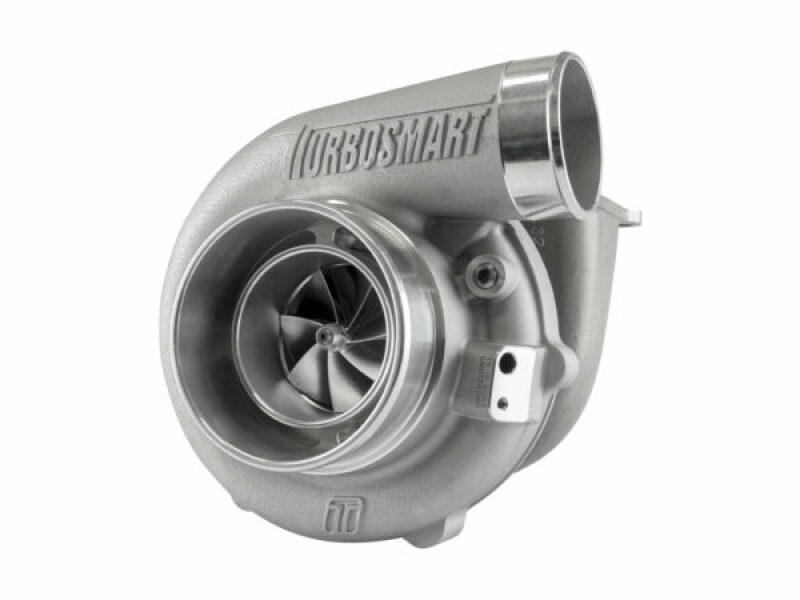

Turbosmart TS-2 Turbo 6262 T3 0.82 A/R - Water-Cooled, Externally Wastegated

The Turbosmart TS-2 6262 is a high-performance turbocharger designed for motorsport applications and advanced performance builds where fast response, high power output and reliability are essential. The TS-2 series combines modern aerodynamics, advanced materials and innovative bearing technology to deliver exceptional performance in a compact, lightweight package.

The turbocharger features a 62 mm compressor inducer and a 62 mm turbine exducer. Its advanced compressor design, featuring 7+7 splitter blades manufactured from 2618 aluminium, provides efficient compression and high airflow. The ultra-low rotating mass of the shaft and bearing assembly contributes to rapid turbo response and efficient boost build-up, while the optimised turbine design maintains high flow capacity under demanding conditions.

The turbocharger features a water-cooled and oil-cooled design with a lightweight investment-cast 310S stainless steel turbine housing. The heat-resistant Inconel 713C turbine wheel is engineered to withstand extremely high exhaust gas temperatures. Turbosmart's proprietary dual ceramic ball bearing system further enhances durability, reduces friction and improves transient response.

With a 0.82 A/R turbine housing, a T3 inlet flange and a 3-inch V-band outlet, this model is designed for external wastegate operation. It is an excellent choice for performance-oriented engine builds where fast spool-up, efficient exhaust flow and reliable boost control are priorities.

Features:

• High-performance turbocharger from the Turbosmart TS-2 series

• Water-cooled and oil-cooled design

• 62 mm compressor inducer and 62 mm turbine exducer

• Compressor wheel with 7+7 splitter blades manufactured from 2618 aluminium

• Lightweight investment-cast 310S stainless steel turbine housing

• Heat-resistant Inconel 713C turbine wheel

• Proprietary dual ceramic ball bearing system

• Integrated iron backplate in the centre housing

• 0.82 A/R turbine housing

• T3 turbine inlet flange

• 3-inch V-band turbine outlet

• Designed for external wastegate operation

• VSR speed-balanced

• Engineered for fast response and high power output

Technical Specifications:

• Compressor inlet: 101.6 mm (4")

• Compressor inducer: 62 mm

• Turbine inlet: T3 flange

• Turbine exducer: 62 mm

• Turbine A/R: 0.82

• Turbine outlet: 3" V-band

• Weight: Approximately 6.06 kg

• Manufacturer-rated power range: 760–880 hp

Included:

• Turbosmart TS-2 performance turbocharger

• Turbine outlet weld flange

• Turbine outlet V-band clamp

• Turbine inlet gasket

• Water line fitting kit

• Oil drain gasket
