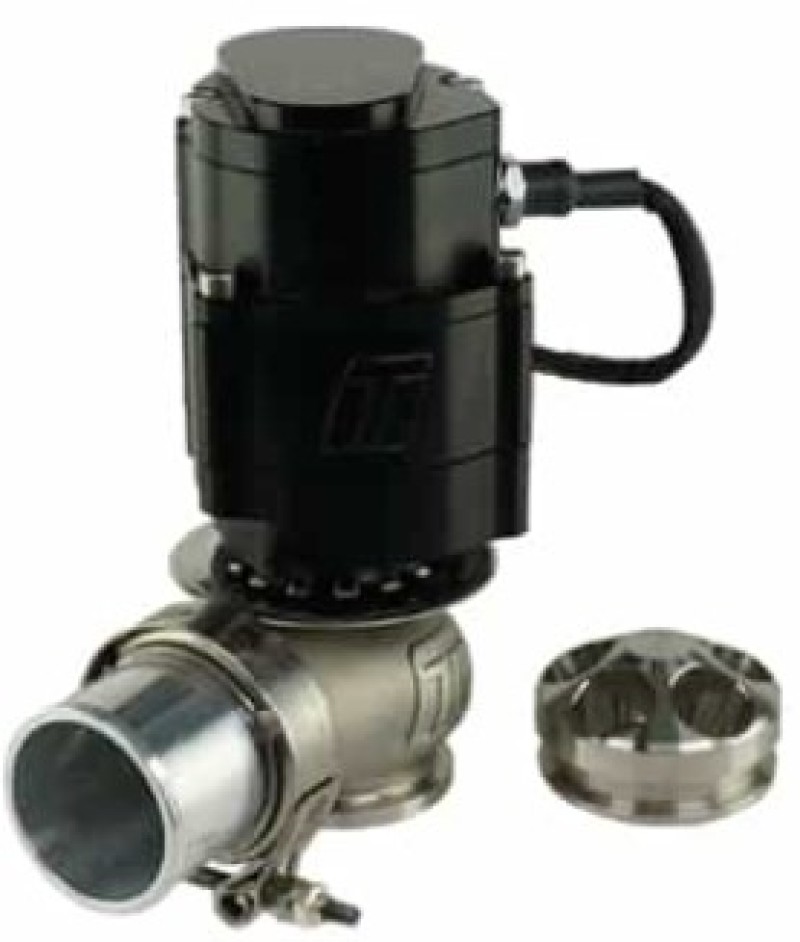

Name: GenV eALV40 Electronic Anti-Lag Valve
Brand: Turbosmart
SKU: TS-0552-1601
Price: 1391 EUR
Availability: InStock

The Turbosmart eALV40 (Fresh-Air bypass Anti-Lag Valve) for motorsport & high Performance Applications featuring fully electronic actuation, removing the need for the solenoids & tanks of traditional pneumatic systems. Featuring a 40mm valve diameter and a purpose designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

The fresh air valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The eALV40 utilised theÂ SEMA Award Winning Technology of Turbosmart's GenV eWG Range, Providing unparalleled control & a specially sealed guide, fit for true ALV purpose.n

n
SUPPLIED WITH
nn

GenV eALV40 Electronic Anti Lag Valve

n

Un-Terminated Flying Lead

n

CompGate40 Valve Seat

n

CompGate40 Inlet & Outlet V-Bands

n

CompGate40 Inlet & Outlet Weld Flanges

n

Turbosmart Decal

nn
SPARES
n

GenV ALV40 Valve Seat TS-0552-3001n

GenV Replacement V-Band Nuts TS-0550-3080n

GenV Inlet V-Band Clamp TS-0552-3003n

Gen-V Outlet V-Band Clamp TS-0552-3004n
ACCESSORIES
n

ALV40 6-1 Weld Flange TS-0550-3114n

ALV40 5-1 Weld Flange TS-0550-3104n

ALV40 4-1 Weld Flange TS-0550-3098n

ALV40 3-1 Weld Flange TS-0550-3099n

ALV40 2-1 Weld Flange TS-0550-3100n

ALV40 Inlet Weld Flange â€“ Alloy TS-0550-3101n

ALV40 Inlet Pipe Adapter 1 3/4â€³ (44.5mm) TS-0550-3102n

ALV40 Inlet Pipe Adapter 1-1/2â€³ (38.1mm) TS-0550-3103n

GenV Position Sensor Cap (Upgrade) TS-0550-3062n

GenV Position Sensor (Replacement) TS-0550-3057n

1/8NPT to 6mm Hose End Adaptor TS-0550-3008n

1/8NPT to -3AN Male to Male Adaptor TS-0550-3050n

1/8NPT to -4AN Male to Male Adaptor TS-0550-3051n

1/8NPT 90Âº Poshloc Fitting â€“ Hi-Temp (1/4â€œ) TS-0550-3054n

1/8NPT T-Piece Pushloc Fitting â€“ Hi-Temp (1/4â€œ) TS-0550-3055n

1/8NPT Straight Pushloc Fitting â€“ Hi-Temp (1/4â€œ) TS-0550-3053n

Hi-Temp Pushloc Tubing 1/4â€³ Black (3 Metres) TS-0550-3056n
TOOLS
n

C Spanner / Collar Tool TS-0550-3013n

GenV ALV40 Welding Purge Bung TS-0550-3076n

GenV ALV40 Diaphragm Replacement Tool TS-0550-3093n

Wastegate Press / Spring Change Assistance Kit TS-0550-3094nn

Product video

Technical specification

Article nr:

TS-0552-1601

Manufacture Partnumber:

TS-0552-1601
