Turbosmart TS-1 Turbo 6870 V-Band 0.96 A/R - Externally Wastegated
The Turbosmart TS-1 6870 is a high-performance turbocharger developed for motorsport applications and advanced performance builds where high power output, fast response and reliability are essential. The TS-1 series combines modern aerodynamics, advanced materials and precision-engineered construction to deliver exceptional performance, reduced rotating mass and efficient gas flow.
The turbocharger features a compressor wheel with a 68 mm inducer and a turbine wheel with a 70 mm exducer. The advanced wheel design provides efficient compression and high flow capacity, while the lightweight shaft and bearing system contributes to fast transient response and efficient boost build-up.
The robust turbine section is manufactured from heat-resistant 310S stainless steel and features an Inconel 713C turbine wheel designed to withstand extremely high exhaust gas temperatures. The turbocharger incorporates an oil-cooled bearing housing with Turbosmart's proprietary dual ceramic ball bearing system, providing excellent durability and reliable operation.
With its 0.96 A/R turbine housing and external wastegate configuration, this model is ideal for performance-oriented engine builds where precise boost control and high exhaust flow are priorities.
Features:
Turbosmart TS-1 high-performance turbocharger
68 mm compressor wheel and 70 mm turbine wheel
0.96 A/R turbine housing
V-band connections for turbine inlet and outlet
Designed for external wastegate operation
Oil-cooled bearing housing with dual ceramic ball bearings
Heat-resistant Inconel 713C turbine wheel
Lightweight, performance-optimised compressor and turbine housings
VSR speed-balanced
Engineered for fast response and high power output
Technical Specifications:
Compressor inlet: 101.6 mm (4")
Compressor inducer: 68 mm
Turbine exducer: 70 mm
Turbine A/R: 0.96
Turbine inlet: 3" V-band
Turbine outlet: 3.5" V-band
Weight: Approximately 9.63 kg
Manufacturer-rated power range: 875–1,035 hp

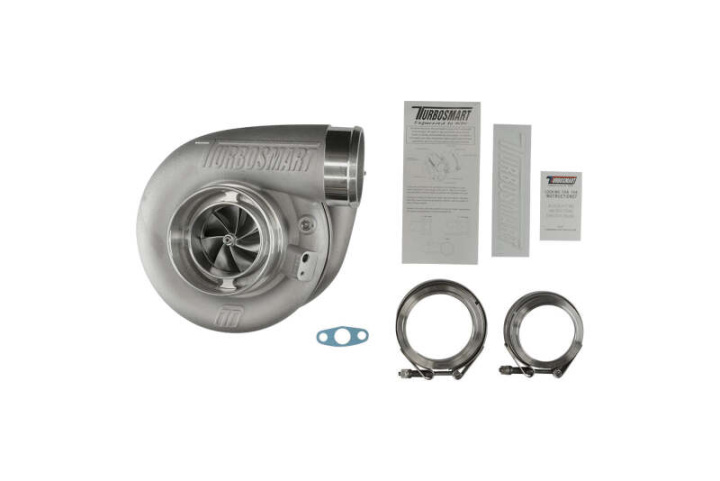

Included:
Turbosmart TS-1 turbocharger
Turbine outlet weld flange
Turbine outlet V-band clamp
Oil drain gasket
