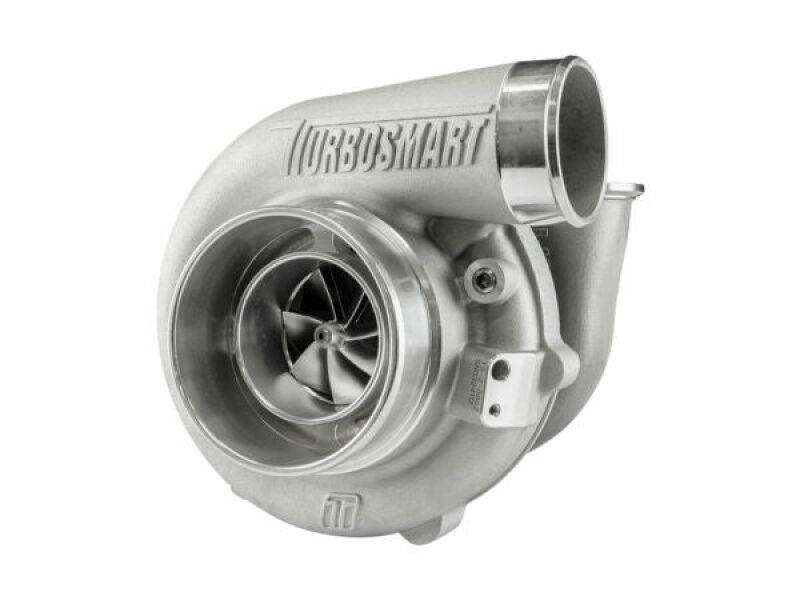

Turbosmart TS-2 Turbo 5862 V-Band 0.82 A/R - Water-Cooled, Externally Wastegated

The Turbosmart TS-2 5862 is a high-performance turbocharger designed for motorsport applications and advanced performance builds where fast response, high power output and reliability are essential. The TS-2 series combines modern aerodynamics, advanced materials and innovative bearing technology to deliver outstanding performance in a compact and lightweight package.

The turbocharger is both water-cooled and oil-cooled, featuring a compressor wheel with a 58 mm inducer and a turbine wheel with a 62 mm exducer. The advanced compressor design, featuring 7+7 splitter blades manufactured from 2618 aluminium, provides efficient compression and high airflow. The low rotating mass contributes to faster response and improved boost build-up, while the optimised turbine section maintains high flow capacity under demanding conditions.

The turbine housing is manufactured from lightweight cast 310S stainless steel, while the heat-resistant Inconel 713C turbine wheel is engineered to withstand extremely high exhaust gas temperatures. The advanced dual ceramic ball bearing system contributes to reduced friction, fast transient response and reliable operation.

With a 0.82 A/R turbine housing and V-band connections for both the turbine inlet and outlet, this model is designed for external wastegate operation. It is ideal for performance-oriented engine builds where fast turbo response and efficient gas flow are priorities.

Features:

• High-performance turbocharger from the Turbosmart TS-2 series

• Water-cooled and oil-cooled design

• 58 mm compressor inducer and 62 mm turbine exducer

• Compressor wheel with 7+7 splitter blades manufactured from 2618 aluminium

• Turbine housing made from lightweight cast 310S stainless steel

• Heat-resistant Inconel 713C turbine wheel

• Dual ceramic ball bearing system

• 0.82 A/R turbine housing

• V-band connections for turbine inlet and outlet

• Designed for external wastegate operation

• VSR speed-balanced

• Engineered for fast response and high power output

Technical Specifications:

• Compressor inlet: 101.6 mm (4")

• Compressor inducer: 58 mm

• Turbine inlet: 2.25" V-band

• Turbine exducer: 62 mm

• Turbine A/R: 0.82

• Turbine outlet: 3" V-band

• Weight: Approximately 6.06 kg

• Manufacturer-rated power range: 725–835 hp

Included:

• Turbosmart TS-2 turbocharger

• 2 turbine inlet and outlet weld flanges

• 2 V-band clamps for turbine inlet and outlet

• Oil drain gasket

• Water line connection kit
