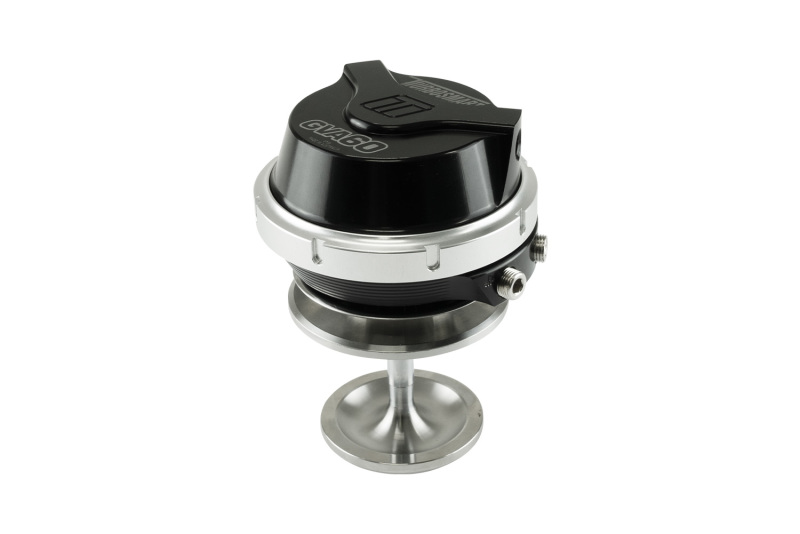

Turbosmart Gas Valve Actuator 60 mm - 14 PSI, Black

The Turbosmart Gas Valve Actuator 60 mm is an advanced pneumatic actuator designed to control mechanical valves in demanding motorsport, automotive and industrial applications. It is part of Turbosmart's GVA series and incorporates proven technology from the company's GenV external wastegates.

The actuator uses a spring-and-diaphragm design in which the reference pressure works in conjunction with the spring to control valve movement. Its modular construction and V-band mounting system make it suitable for integration into custom-built systems where precise gas flow regulation is required.

With a 60 mm valve size, robust aluminium construction and a base pressure of 14 PSI, this actuator is an option for advanced installations where reliable and controlled valve operation is essential.

Features and Benefits

• 60 mm valve size

• Pneumatic actuator with spring and diaphragm

• Base pressure of 14 PSI (approximately 0.97 bar)

• Durable aluminium actuator housing

• Aluminium retaining-ring system

• Ceramic heat insulation

• Dual reference ports with 1/8" NPT connections

• Valve guide made from Nitronic 60

• V-band mounting for flexible installation

• Hard-chromed stainless steel valve

• Liquid-cooling capability

• Alternative springs available with pressure ratings from 3 to 26 PSI

Technical Specifications

• Product Series: Gas Valve Actuator (GVA)

• Model: 60 mm

• Colour: Black

• Base Pressure: 14 PSI (approximately 0.97 bar)

• Applications: Custom automotive, turbo and industrial systems

Included

• Turbosmart Gas Valve Actuator

• V-band clamp

• Reference connection kit with 1/8" BPT fitting

• Turbosmart decal
