Turbosmart TS-1 Turbo 6262 T3 - 0.82 A/R for External Wastegate

Name: TS-1 Turbocharger 6262 T3 0.82AR Externally Wastegated
Brand: Turbosmart
SKU: TS-1-6262B-T3082E
Price: 2975 EUR
Availability: InStock

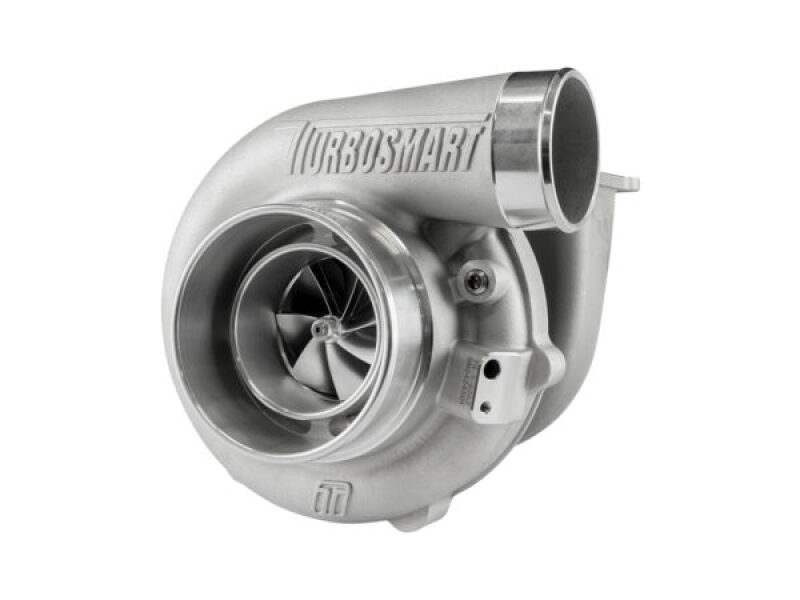

The Turbosmart TS-1 6262 is a high-performance turbocharger developed for motorsport and performance-focused engine builds. The TS-1 series combines modern engineering, advanced materials and low rotating mass to deliver quick response and high power potential.

The TS-1 is an oil-cooled turbocharger featuring a lightweight stainless steel turbine housing, an aluminium compressor housing and a specially developed bearing and shaft assembly. Its low rotating mass, combined with advanced compressor design, provides efficient airflow and responsive boost delivery, even at lower engine speeds. The Inconel 713C turbine wheel is engineered to withstand high exhaust gas temperatures.

With a T3 inlet flange, a 0.82 A/R turbine housing and a V-band turbine outlet, the TS-1 6262 is an excellent option for high-performance engine builds using an external wastegate.

Features and Benefits

Fast response: Low rotating mass for quicker boost build-up.
Advanced compressor design: 7+7-blade splitter wheel made from 2618 aluminium.
Dual ceramic ball-bearing system: Designed for responsiveness and high performance.
Oil cooling: Engineered for effective oil circulation and cooling.
Inconel 713C turbine wheel: Designed to withstand high exhaust gas temperatures.
Lightweight construction: Cast 310S stainless steel turbine housing and aluminium compressor housing.
Optimised turbine housing: CFD-developed design for efficient flow.
External wastegate: Allows independent boost pressure control.
VSR balanced: High-speed balanced for reliable operation.

Technical Specifications

Manufacturer: Turbosmart
Model: TS-1 6262
Part number: TS-1-6262B-T3082E
Cooling: Oil-cooled
Compressor inducer diameter: 62 mm
Turbine exducer diameter: 62 mm
Turbine housing A/R: 0.82
Turbine inlet: T3 flange
Turbine outlet: 3-inch V-band
Compressor inlet: 4 inches (101.6 mm)
Wastegate: External
Weight: Approximately 6.06 kg
Specified power capacity: 760–880 hp

Included Items

1 × Turbosmart TS-1 turbocharger
1 × turbine outlet weld flange
1 × turbine outlet V-band clamp
1 × oil drain gasket

Product video

Technical specification

Article nr:

TS-1-6262B-T3082E

Manufacture Partnumber:

TS-1-6262B-T3082E
