TC2-HDR4 ACT HD/Race Rigid 4 Pad Kit in the group Select car model / Toyota / Corolla / Tuning / Clutch and Flywheel at DDESIGN Scandinavia AB (actTC2-HDR4)

Horsepower

Newton meter

TC2-HDR4 ACT HD/Race Rigid 4 Pad Kit

Name: TC2-HDR4 ACT HD/Race Rigid 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actTC2-HDR4
Price: 691 EUR
Availability: InStock

Article nr:

actTC2-HDR4

Recommended for race use only. Light to moderate pedal effort, aggressive engagement, increased gear rattle.

691 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TC2-HDR4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
Specifications:
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 8.3 IN
Clutch Disc Diameter: 212 MM
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Product Weight (lbs.): 11.2
Title: ACT HD/Race Rigid 4 Pad Kit
Torque Capacity (ft/lbs.): 305
Torque Capacity Over OE: 69%

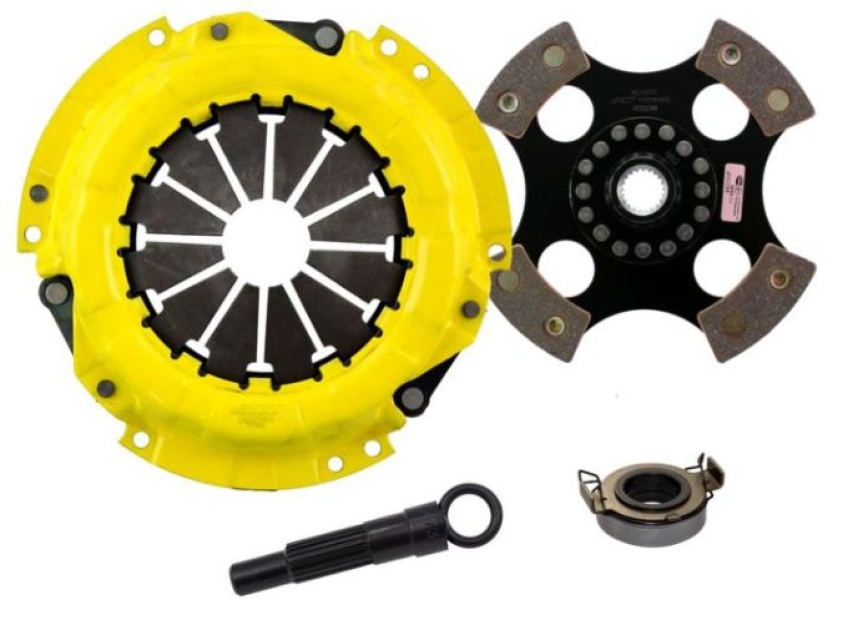

Kit includes:
4212003 ACT 4 Pad Rigid Race Disc
ATK73 ACT Alignment Tool
RB840 ACT Release Bearing
T030 ACT Heavy Duty Pressure Plate
Kitet passar:
Geo Prizm Base 1992 1.6L L4 1587cc
Geo Prizm Base 1993 1.6L L4 1588cc 98 CID
Geo Prizm Base 1994 1.6L L4 1588cc 98 CID
Geo Prizm Base 1995 1.6L L4 1588cc 98 CID
Geo Prizm Base 1996 1.6L L4 1588cc 98 CID
Geo Prizm Base 1997 1.6L L4 1588cc 98 CID
Geo Prizm GSi 1992 1.6L L4 1587cc
Geo Prizm LSi 1993 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1993 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1994 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1994 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1995 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1995 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1996 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1996 1.6L L4 1588cc 98 CID
Geo Prizm LSi 1997 1.8L L4 1788cc 110 CID
Geo Prizm LSi 1997 1.6L L4 1588cc 98 CID
Pontiac Vibe Base 2003 1.8L L4 1794cc
Pontiac Vibe GT 2003 1.8L L4 1795cc
Toyota Celica 61991 to 81993 ST 1.6L L4 1587cc
Toyota Celica 91993 to 1997 1.8L L4 1762cc
Toyota Celica 2000-2005 GT och GTS 1.8L L4 1794cc
Toyota Corolla 61992 to 2013 1.6L L4 1587cc
Toyota MR-S 2000-2005 1.8L L4 1794cc
Toyota Corolla 61992 to 2013 1.8L L4 1762cc
Pontiac Vibe Base 2004 1.8L L4 1794cc
Pontiac Vibe GT 2004 1.8L L4 1795cc
Pontiac Vibe Base 2005 1.8L L4 1794cc
Pontiac Vibe GT 2005 1.8L L4 1795cc
Pontiac Vibe Base 2006 1.8L L4 1794cc
Pontiac Vibe GT 2006 1.8L L4 1795cc
Pontiac Vibe Base 2007 1.8L L4 1794cc
Pontiac Vibe Base 2008 1.8L L4 1794cc
Geo Prizm LSi 1992 1.6L L4 1587cc
Geo Prizm Base 1991 1.6L L4 1587cc
Geo Prizm GSi 1991 1.6L L4 1587cc
Geo Prizm LSi 1991 1.6L L4 1587cc
Product video

Technical specification

Article nr:
actTC2-HDR4

Manufacture Partnumber: TC2-HDR4
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
Accessories & Spare Parts
Guarantee
Reviews:
To leave a review, you should have previously purchased this product and log in to your customer profile.
