TS4-HDMM ACT HD/Modified Street Kit in the group Build Your Engine / Toyota - Engines / 2JZ / Clutch - 2JZ at DDESIGN Scandinavia AB (actTS4-HDMM)

Horsepower

Newton meter

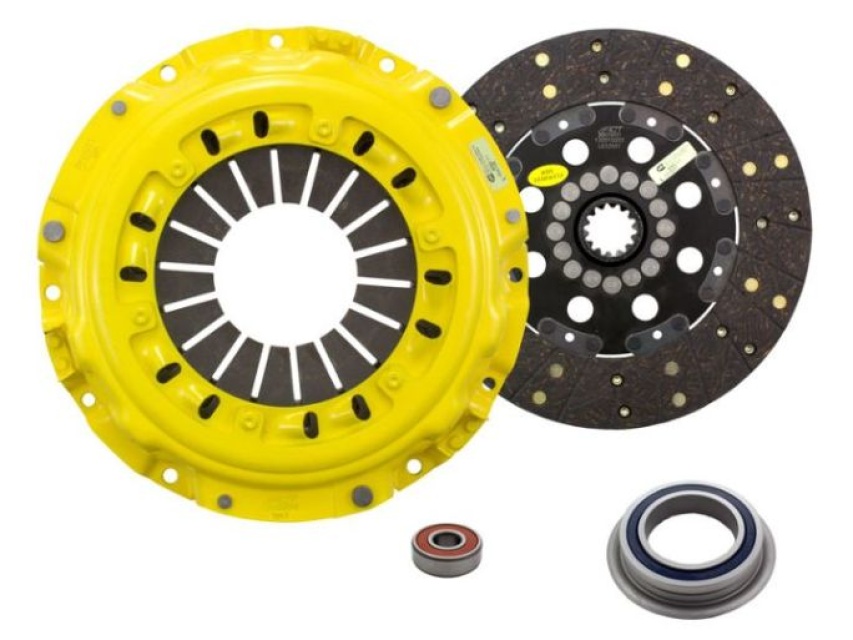

TS4-HDMM ACT HD/Modified Street Kit

Name: TS4-HDMM ACT HD/Modified Street Kit
Brand: ACT Advanced Clutch Technology
SKU: actTS4-HDMM
Price: 1526 EUR
Availability: InStock

Article nr:

actTS4-HDMM

Recommended for street and occasional race use. Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle.

1526 EUR

Delivery: 2-4 weeks

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
TS4-HDMM kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT modified spring-centered street discs feature premium organic friction material with high copper content for better heat transfer and steel-backed lining for burst strength and durability. These discs are modified with reduced marcel for faster shift action to complement ACT pressure plates. the heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. Modified street discs provide smooth engagement and quiet operation, with increased strength and reliability.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.8 IN
Clutch Disc Diameter: 250 MM
Disc Material: Organic
Input Spline Quantity: 14
Input Shaft Diameter: 1.25 IN
Product Weight (lbs.): 18.6
Title: ACT HD/Modified Street Kit
Torque Capacity (ft/lbs.): 587
Torque Capacity Over OE: 47%
Kit includes:
2000601 ACT Modified Rigid Street Disc
PB1004 ACT Pilot Bearing
RB000 ACT Release Bearing
T014 ACT Heavy Duty Pressure Plate
Kitet passar:
Toyota Supra MK4 (A80) 1994-1998 3.0L L6 2997cc Turbo 2JZ-GTE
Product video

Technical specification

Article nr:
actTS4-HDMM

Manufacture Partnumber: TS4-HDMM
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
