SB9-XTSS ACT XT-M/Perf Street Sprung Kit in the group Select car model / Subaru / Impreza inkl. WRX - STI 00-07 / Tuning / Clutch and Flywheel at DDESIGN Scandinavia AB (actSB9-XTSS)

SB9-XTSS ACT XT-M/Perf Street Sprung Kit

Horsepower

Newton meter

SB9-XTSS ACT XT-M/Perf Street Sprung Kit

Name: SB9-XTSS ACT XT-M/Perf Street Sprung Kit
Brand: ACT Advanced Clutch Technology
SKU: actSB9-XTSS
Price: 1093 EUR
Availability: InStock

Article nr:

actSB9-XTSS

Recommended for street and race use. Moderate to heavy pedal effort, smooth positive engagement, OE to mild gear rattle, confidence during hard shifts.

1093 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
SB9-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs Performance street discs are the most popular disc purchased. They feature premium organic materials with higher copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs feature a reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monolocs hardened chrome-moly steel construction will provide years of service.
Specifications:

Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 9 IN
Clutch Disc Diameter: 228 MM
Disc Material: Organic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Part Fitment Requirement: Includes Monoloc.
Product Weight (lbs.): 16.4
Title: ACT XT-M/Perf Street Sprung Kit
Torque Capacity (ft/lbs.): 511
Torque Capacity Over OE: 50%

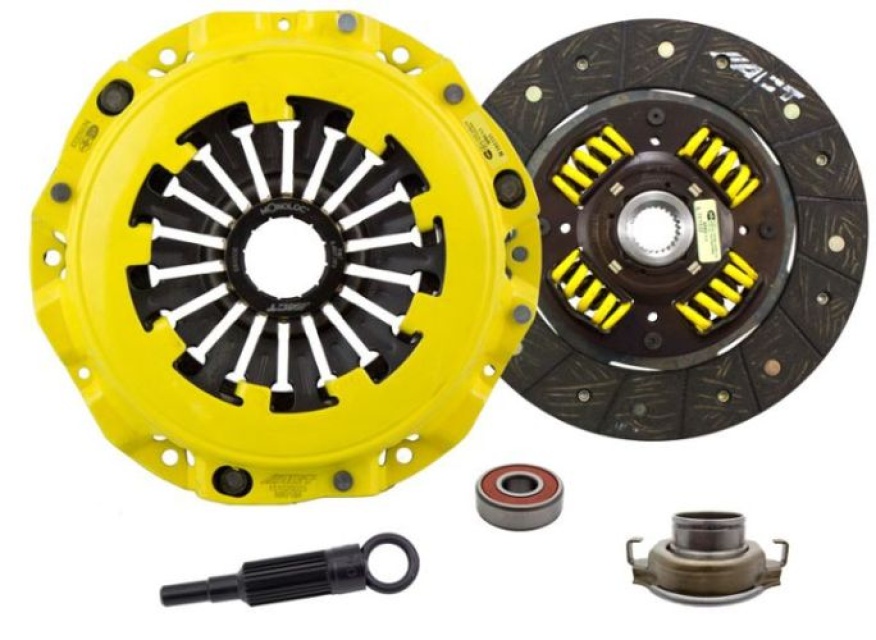

Kit includes:

3000502 ACT Perf Street Sprung Disc
AT90 ACT Alignment Tool
PB1004 ACT Pilot Bearing
RB601 ACT Release Bearing
SB018X ACT Xtreme Pressure Plate

Kitet passar:

Subaru Impreza GT - WRX 1993-2000 2L F4 EJ20
Subaru Impreza WRX 2001-2005 2L F4 EJ20
Subaru Forester XT 2004-2005 2.5L H4 2458cc
Product video

Technical specification

Article nr:
actSB9-XTSS

Manufacture Partnumber: SB9-XTSS
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
