SB9-XTR6 ACT XT-M/Race Rigid 6 Pad Kit

Name: SB9-XTR6 ACT XT-M/Race Rigid 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actSB9-XTR6
Price: 1108 EUR
Availability: InStock

Article nr:

actSB9-XTR6

Recommended for race use only. Moderate to heavy pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts.

1108 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
SB9-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monolocs hardened chrome-moly steel construction will provide years of service.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 9 IN
Clutch Disc Diameter: 228 MM
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Part Fitment Requirement: Includes Monoloc.
Product Weight (lbs.): 15.4
Title: ACT XT-M/Race Rigid 6 Pad Kit
Torque Capacity (ft/lbs.): 654
Torque Capacity Over OE: 92%

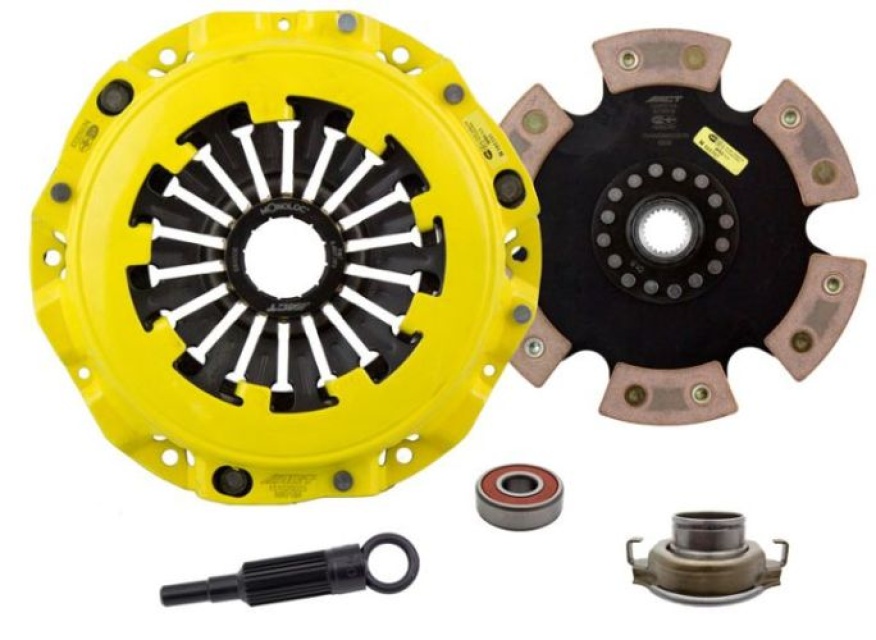

Kit includes:
6228018 ACT 6 Pad Rigid Race Disc
AT90 ACT Alignment Tool
PB1004 ACT Pilot Bearing
RB601 ACT Release Bearing
SB018X ACT Xtreme Pressure Plate
Kitet passar:
Subaru Impreza GT - WRX 1993-2000 2L F4 EJ20
Subaru Impreza WRX 2001-2005 2L F4 EJ20
Subaru Forester XT 2004-2005 2.5L H4 2458cc
Product video

Technical specification

Article nr:
actSB9-XTR6

Manufacture Partnumber: SB9-XTR6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
