ACT Advanced Clutch Technology

SB2-HDG6 ACT HD/Race Sprung 6 Pad Kit

Article nr:
actSB2-HDG6
|
(0 reviews)
Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
926 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock:

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • SB2-HDG6 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

    Specifications:

  • Pilot Bushing Included: Yes
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter: 224 MM
  • Clutch Disc Diameter: 8.8 IN
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter: 1 IN
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 15
  • Title: ACT HD/Race Sprung 6 Pad Kit
  • Torque Capacity (ft/lbs.): 399
  • Torque Capacity Over OE: 82%

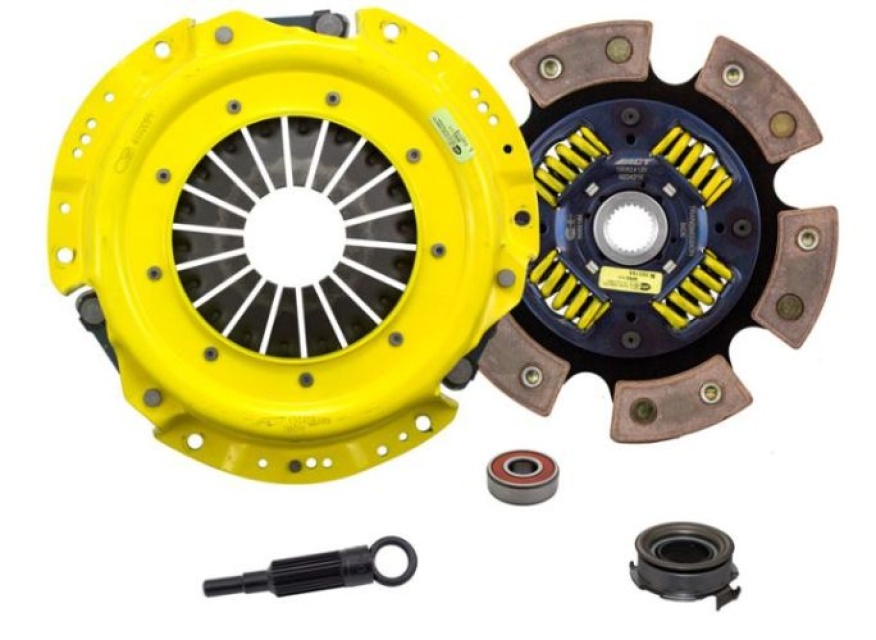

    Kit includes:

    • 6224218 ACT 6 Pad Sprung Race Disc
    • AT90 ACT Alignment Tool
    • PB1004 ACT Pilot Bearing
    • RB833 ACT Release Bearing
    • SB011 ACT Heavy Duty Pressure Plate

    Kitet passar:

    Subaru Forester 1997-2010 2.5L H4 2458cc Non-Turbo
    Saab 9-2X Linear 2005 2.5L H4 2458cc
    Saab 9-2X 2.5i 2006 2.5L H4 2458cc
  • Product video

    Technical specification

    Article nr:
    actSB2-HDG6
    Manufacture Partnumber: SB2-HDG6
