SB11-HDG4 ACT HD/Race Sprung 4 Pad

Name: SB11-HDG4 ACT HD/Race Sprung 4 Pad
Brand: ACT Advanced Clutch Technology
SKU: actSB11-HDG4
Price: 1696 EUR
Availability: InStock

Article nr:

actSB11-HDG4

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

1696 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
SB11-HDG4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Specifications:
Flywheel Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 240 MM
Clutch Disc Diameter: 9.4 IN
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Flywheel Type: Streetlite
Part Fitment Requirement: Conversion Kit - replaces original 230mm clutch. Must use ACT Flywheel (included in kit). Subaru has incorporated 240mm clutch components into production during mid-2018MY production starting with VIN J806877. ACT clutch kits and flywheels are not compatible with the revised OEM components.
Product Weight (lbs.): 28.5
Title: ACT HD/Race Sprung 4 Pad
Torque Capacity (ft/lbs.): 574
Torque Capacity Over OE: 78%

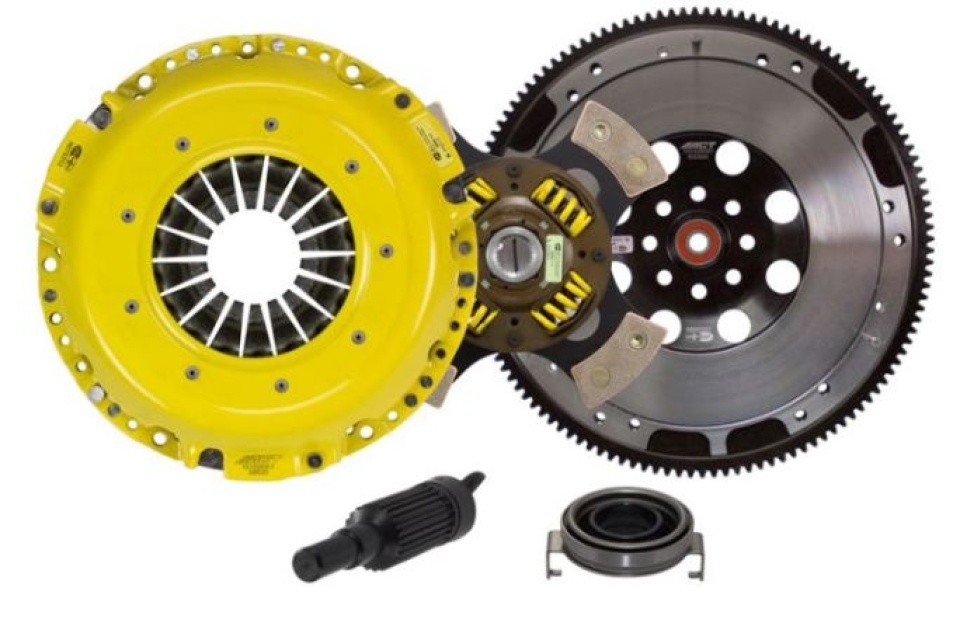

Kit includes:
4240518 ACT 4 Pad Sprung Race Disc
600890 ACT XACT Flywheel Streetlite
AT90 ACT Alignment Tool
PB1004 ACT Pilot Bearing
RB846 ACT Release Bearing
SB020 ACT Heavy Duty Pressure Plate
Kitet passar:
Subaru Impreza - WRX STi 2006-2007 2.5L H4 2458cc
Subaru Impreza WRX 2006-2014 2.5L H4 2458cc
Subaru Forester XT 2006-2008 2.5L H4 2458cc
