RB26 OVERSIZED OIL PUMP

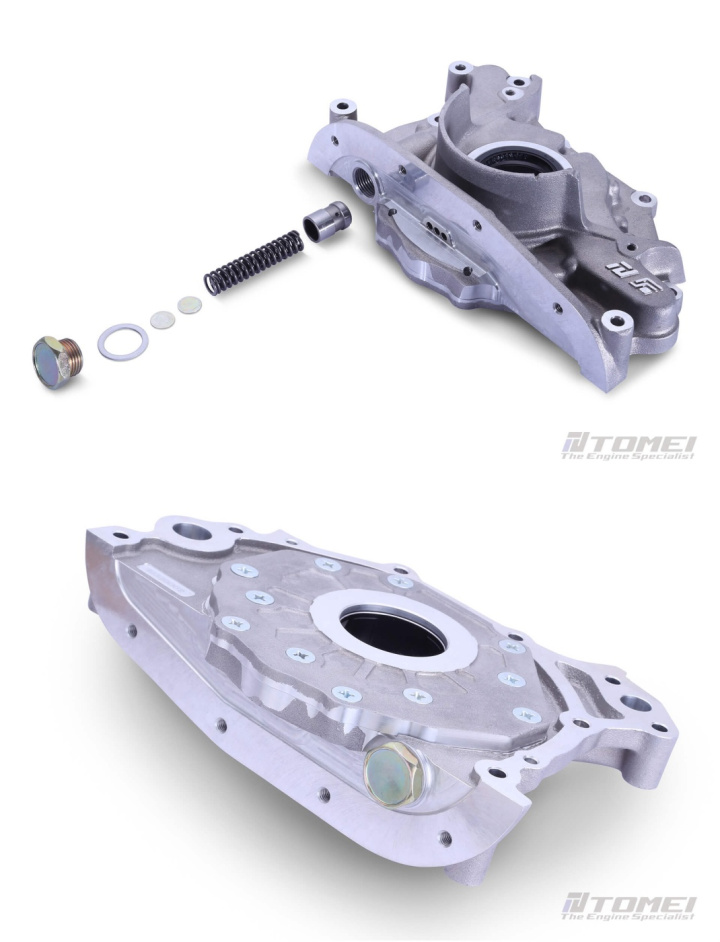

The RB26DETT engine is often plagued with oil lubrication issues during circuit and drag racing events which are the main causes of most RB26 engine failures. This problem causes the main bearings to abnormally wear out from the lack of oil pressure. The stock pump is not capable of supplying the adequate amount of oil to maintain the right oil pressures at extreme engine speeds that the high powered monster RB26 performance engines require. Another weak point is that the stock pumps gear is made from weak sintered metal and this often breaks when going for bigger power and higher engine speeds and when this little piece gives out can cause an instant loss of your engine. The TOMEI RB26 oil pump has a larger pump gear made of high strength materials to supply a larger flow rate to the engine and it has an external oil pressure adjuster as well.
[RB26DETT OIL PRESSURE REFERENCE DATA]
| RPM | Oil pressure(kgf/cmg) | |
|---|---|---|
| Double spring + 2 shim (Out of the box specifications) | Double spring + 1 shim | |
| 3000 | 5.94 | 5.50 |
| 3500 | 6.10 | 5.70 |
| 4000 | 6.32 | 5.70 |
| 4500 | 6.50 | 5.90 |
| 5000 | 6.60 | 5.90 |
| 5500 | 6.60 | 6.00 |
| 6000 | 6.53 | 6.00 |
| 6500 | 6.20 | 5.80 |
| 7000 | 6.10 | 5.65 |
| 7500 | 6.00 | 5.60 |

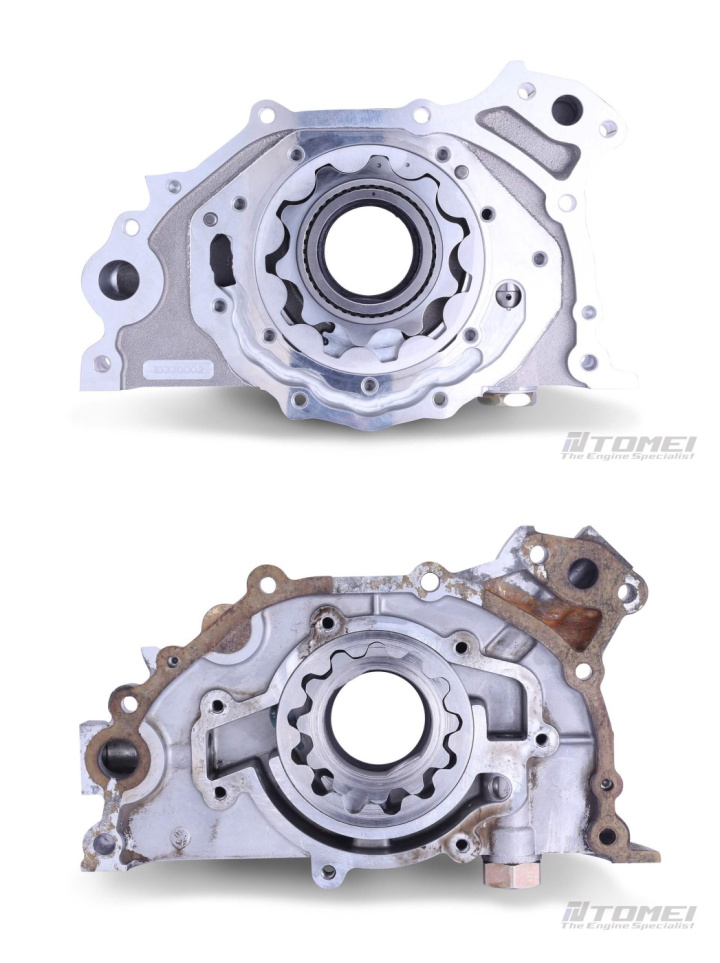

| SPECIFICATION COMPARISON VS. STOCK |
| TOMEI | STOCK(RB26DETT) | |
|---|---|---|
| PART No. | TB203A-NS05A | - |
| MSRP | - | - |

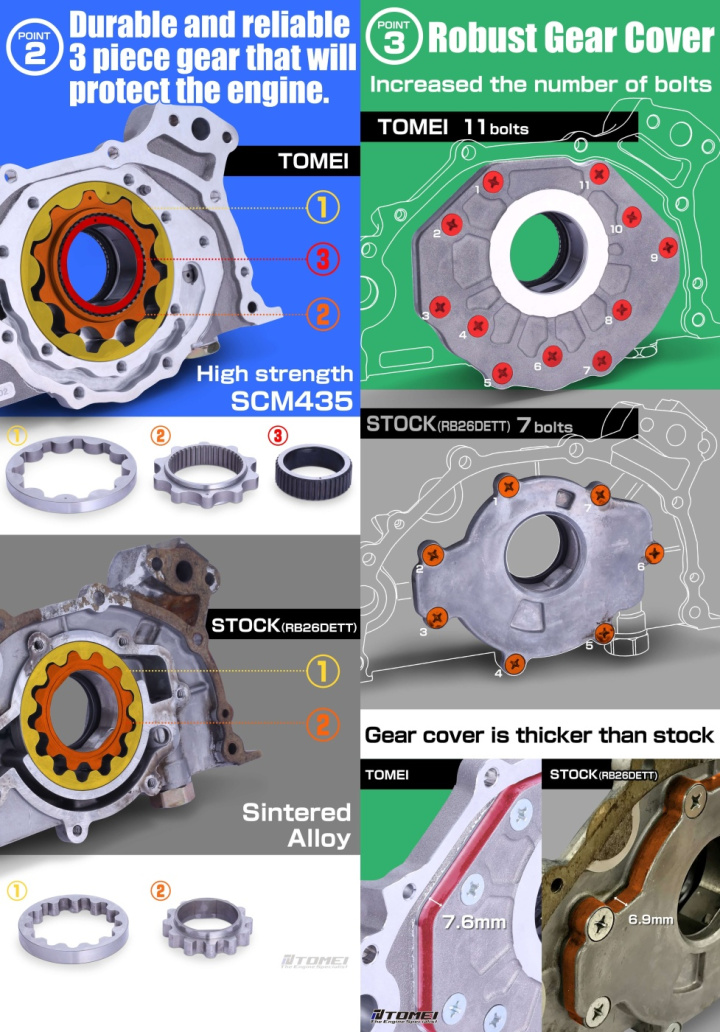

| GEAR MATERIAL | SCM435 | SINTERED ALLOY |

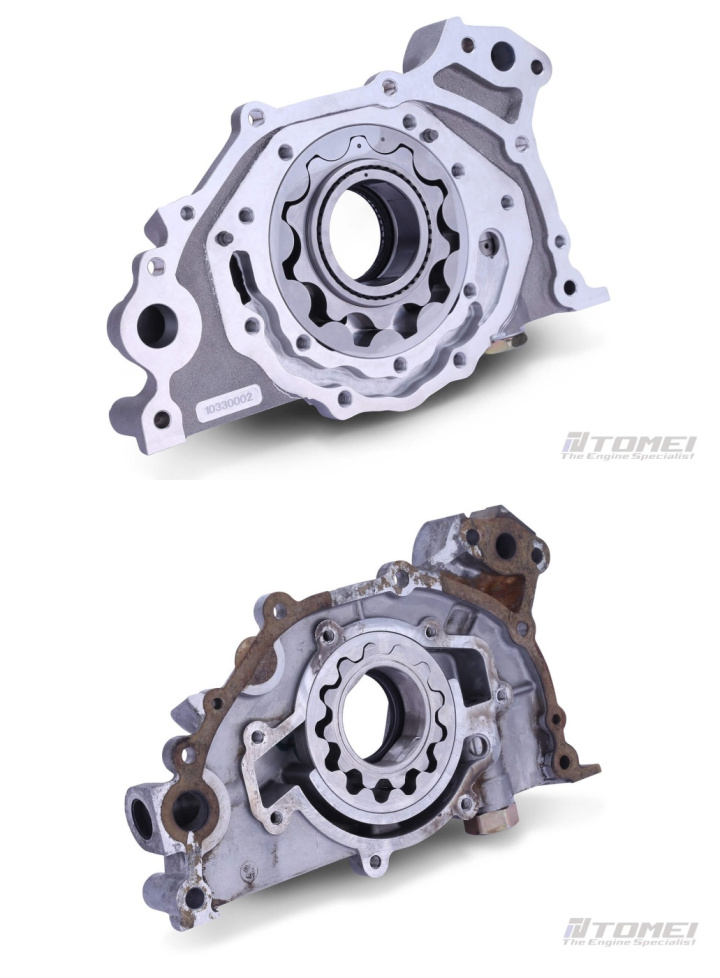

| GEAR SET | 3 PIECE GEAR | 2 PIECE GEAR |

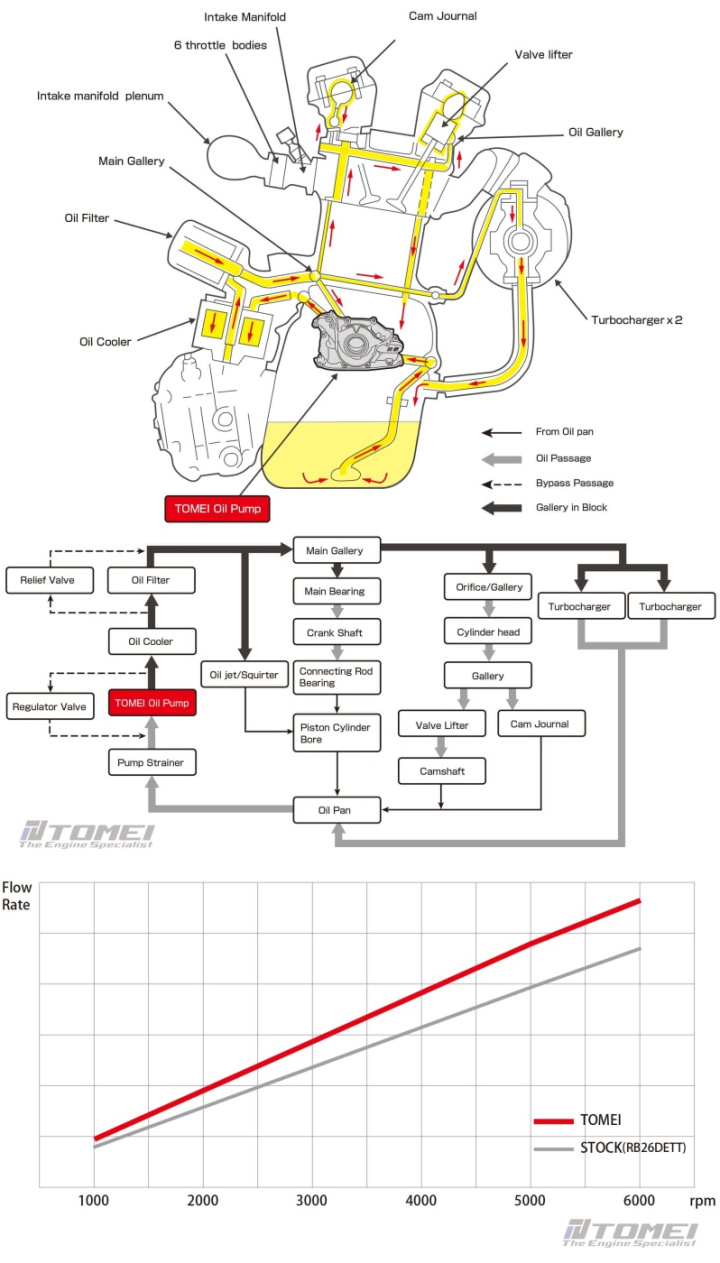

| FLOW RATE | 56.0L/6000rpm | 46.7L/6000rpm |

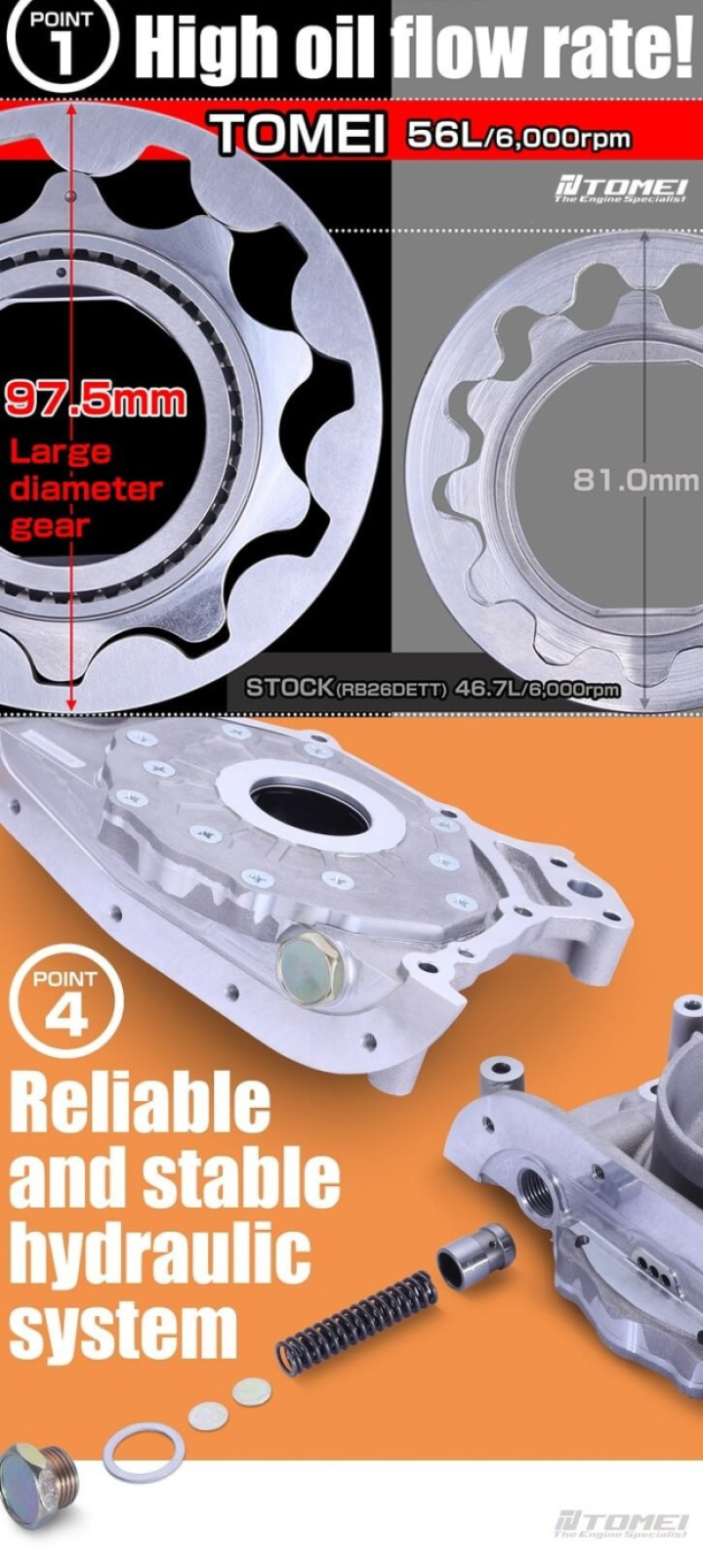

| OUTER GEAR DIAMETER | 97.5mm | 81.0mm |
| OUTER GEAR THICKNESS | 9.5mm | 11.0mm |
| GEAR COVER THICKNESS | 7.6mm | 6.9mm |
Tomei
TOMEI POWERED (TOMEI MOTOR Inc.) Was founded as a company which specialized in professional racing by Seiichi Suzuki who was known as a driver for Nissan Motor Works in 1968.
From that time Seiichi Suzuki who was also and excellent tuner helped to achieve high scoring results in numerous races and made many legends.
Stories in which is still handed down as one of Japans historical race.
TOMEI have been involved in various competition levels from Touring cars to Formula Cars and the D1GP series.
From the past, present and the future, TOMEI continues to compete in motor sports and develop superior tuning products.
