HKS RB26DETT Crank Trigger Conversion Kit - Crank Angle Sensor Kit

Name: RB26DETT Crank Angle Sensor Conversion Kit HKS
Brand: HKS
SKU: HKS45999-AN001
Price: 1103 EUR
Availability: InStock

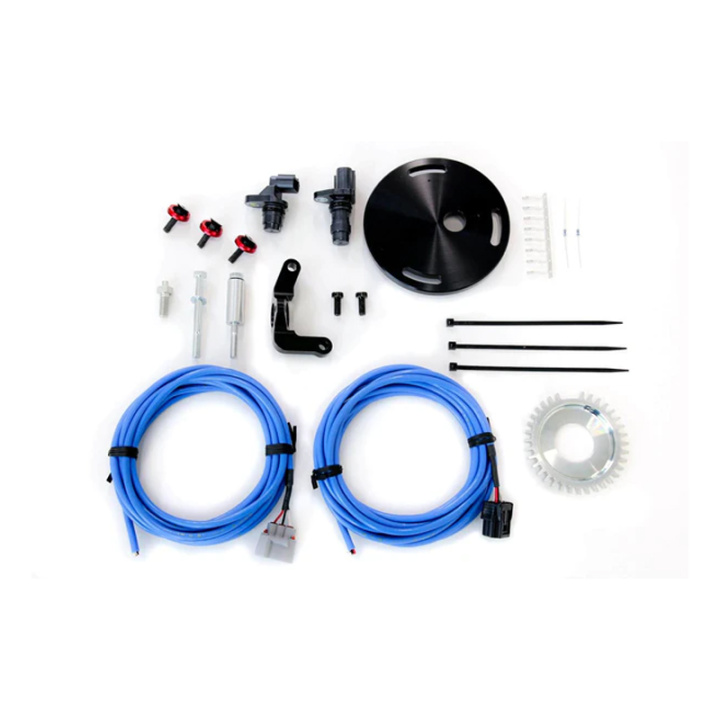

The HKS RB26DETT Crank Angle Sensor Kit is an advanced crank trigger conversion kit developed for the Nissan RB26DETT, specifically designed for engines equipped with the HKS V CAM system. The kit replaces the factory cam angle sensor with a modern crankshaft-based trigger system, providing significantly more accurate signals to the engine management system. The result is improved ignition and fuel control, along with more stable engine operation, particularly at high RPM and in high-performance engine builds.

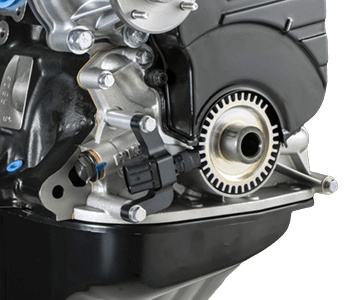

The system utilises a 36-2T crank trigger wheel for precise crankshaft position detection and includes specially engineered noise-suppressed wiring harnesses. These harnesses help minimise electrical interference caused by worn ignition coils or other ignition system components, reducing the risk of inaccurate engine speed and position signals. The improved signal accuracy allows the ECU to control ignition timing and fuel delivery with greater precision.

This kit has been field-proven in HKS complete engine builds, including the RB28 HIGH RESPONSIVE STEP3 V CAM engine. It also provides a modern alternative to the increasingly expensive factory cam angle sensor. When the engine management system is properly recalibrated to take advantage of the improved sensor accuracy, HKS states that the system may contribute to a 5–7% increase in power output, depending on the engine setup and supporting modifications.

Features

Designed for Nissan RB26DETT engines with compatible HKS V CAM applications.
Genuine HKS RB26 Crank Angle Sensor Kit.
Replaces the factory cam angle sensor with a modern crank trigger system.
36-2T crank trigger for highly accurate crankshaft position detection.
Provides more precise engine position signals to the ECU.
Specially designed noise-suppressed wiring harnesses.
Helps reduce signal interference caused by worn ignition coils and electrical noise.
Enables more accurate ignition timing and fuel control.
Field-proven design used in HKS RB28 HIGH RESPONSIVE STEP3 V CAM engine builds.
May contribute to a 5–7% increase in power output following proper ECU recalibration.
Ideal for high-performance street and motorsport applications.

Product video

Technical specification

Article nr:

HKS45999-AN001

Manufacture Partnumber:

45999-AN001
