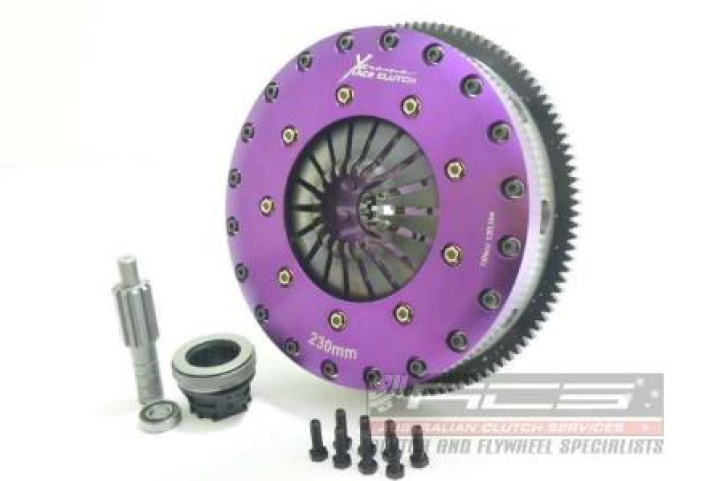

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Passar till:
- BMW 3-Series E30 | 318is 1989-1991 1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991)BMW 3-Series E36 | 318is 1992-1995 1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995)
BMW 3-Series E36 | 318is 1993-1995 1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995)
BMW 3-Series E36 | 318Ti 1994-1995 1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995)
BMW 5-Series E34 | 518i 1989-1994 1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994)
BMW 5-Series E34 | 518i 1993-1994 1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994)
BMW 5-Series E34 | 518i 1994-1995 1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995)
BMW 5-Series E34 | 518i 1994-1996 1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996)
BMW Z3 E36 | 1.9i 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
BMW 3-Series E36 | 318is 1995-1999 1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999)
BMW 3-Series E36 | 318is 1996-1998 1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998)
BMW 3-Series E36 | 318Ti 1996-1999 1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999)
BMW 5-Series E39 | 520i 1997-2001 1990cc | 100KW | 136HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001)
BMW 5-Series E39 | 520i 1996-2003 1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1996-2003)
BMW 5-Series E39 | 520i 1997-2001 1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001)
BMW 3-Series E46 | 320i 1998-2000 1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000)
BMW 3-Series E46 | 320i 1999-2000 1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000)
BMW 3-Series E46 | 320Ci 1999-2001 1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001)
BMW Z3 E36 | 2.0i 1999-2003 1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2003)
BMW 3-Series E46 | 320i 2000-2005 2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2005)
BMW 3-Series E46 | 320Ci 2000-2006 2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2006)
BMW Z3 E36 | 2.2i 2000-2002 2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2002)
BMW 5-Series E39 | 520i 2000-2003 2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2003)
BMW 3-Series E46 | 320i 2000-2005 2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2005)
BMW 3-Series E46 | 320Ci 2000-2006 2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2006)
BMW 3-Series E46 | 320Ci 2000-2007 2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007)
BMW 3-Series E46 | 323i 1998-2000 2494cc | 120KW | 163HP | M52 B25 (256S4) (1998-2000)
BMW 3-Series E46 | 323Ci 1999-2000 2494cc | 120KW | 163HP | M52 B25 (256S4) (1999-2000)
BMW 3-Series E46 | 323Ci 2000-2000 2494cc | 120KW | 163HP | M52 B25 (256S4) (2000-2000)
BMW 5-Series E34 | 525i 1988-1990 2494cc | 125KW | 170HP | M20 B25 (256K1) (1988-1990)
BMW 3-Series E36 | 323Ti 1997-2000 2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000)
BMW 5-Series E39 | 523i 1995-2000 2494cc | 125KW | 170HP | M52 B25 (256S3);M52 B25 (256S4) (1995-2000)
BMW 5-Series E39 | 523i 1997-2000 2494cc | 125KW | 170HP | M52 B25 (256S3);M52 B25 (256S4) (1997-2000)
BMW 3-Series E46 | 323i 1998-2000 2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000)
BMW 3-Series E46 | 323Ci 1999-2000 2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000)
BMW 3-Series E46 | 323Ci 2000-2000 2494cc | 125KW | 170HP | M52 B25 (256S4) (2000-2000)
BMW 3-Series E36 | 325i 1990-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995)
BMW 5-Series E34 | 525i 24V 1990-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995)
BMW 3-Series E36 | 325i 1991-1995 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995)
BMW 5-Series E34 | 525i 1991-1996 2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1996)
BMW 3-Series E36 | 325i 1993-1995 2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995)
BMW 5-Series E39 | 525i 2000-2003 2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2003)
BMW 3-Series E46 | 325i 2000-2005 2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2005)
BMW 5-Series E28 | 525E 1981-1987 2693cc | 90KW | 122HP | M20 B27 (276KA), M20 B27 (276KB) (1981-1987)
BMW 5-Series E28 | 525E 1983-1987 2693cc | 92KW | 125HP | M20 B27 (276EA) (1983-1987)
BMW 5-Series E28 | 525E 1985-1987 2693cc | 95KW | 129HP | M20 B27 (276EB), M20 B27 (276KB) (1985-1987)
BMW 3-Series E36 | 328i 1995-1998 2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998)
BMW 3-Series E36 | 328i 1995-1999 2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999)
BMW Z3 E36 | 2.8i 1996-2000 2793cc | 142KW | 193HP | M52 B28 (286S1) (1996-2000)
BMW 5-Series E39 528i 1995-2000 2793cc | 142KW | 193HP | M52 B28 (286S1), M52 B28 (286S2) (1995-2000)
BMW 5-Series E39 528i 1996-2000 2793cc | 142KW | 193HP | M52 B28 (286S1), M52 B28 (286S2) (1996-2000)
BMW Z3 E36 | 2.8i 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S1);M52 B28 (286S2) (1998-2000)
BMW 3-Series E46 | 328Ci 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
BMW 3-Series E46 | 328i 1998-2000 2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000)
BMW 3-Series E46 | 328i 1999-2000 2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000)
BMW Z3 E36 | 3.0i 2000-2003 2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2003)
BMW 3-Series E46 | 330i 2000-2005 2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2005) 5 Speed, n - BMW 3-Series E46 | 330Ci 2000-2006 2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2006) 5 Speed, n - BMW 3-Series E36 | M3 3.0 1992-1995 2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995)
BMW 3-Series E36 | M3 3.0 1994-1995 2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995)
BMW 3-Series E36 | M3 3.0 1993-1995 2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995)
BMW 3-Series E36 | M3 3.2 1995-1998 3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998)
BMW 3-Series E36 | M3 3.2 1996-1999 3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999)
BMW Z3 E36 | M3 1997-2000 3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000)
BMW Z3 E36 | M3 1998-2001 3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001)
