7M1532H BMW M20 / M50 / M52 / M54 / M57 / S50 / S52 / S54 Main bearing set (ACL Race Series) ACL in the group Select car model / BMW / 3-series (E46) 1998-2005 / Tuning at DDESIGN Scandinavia AB (var-acl7M1532H)

Horsepower

Newton meter

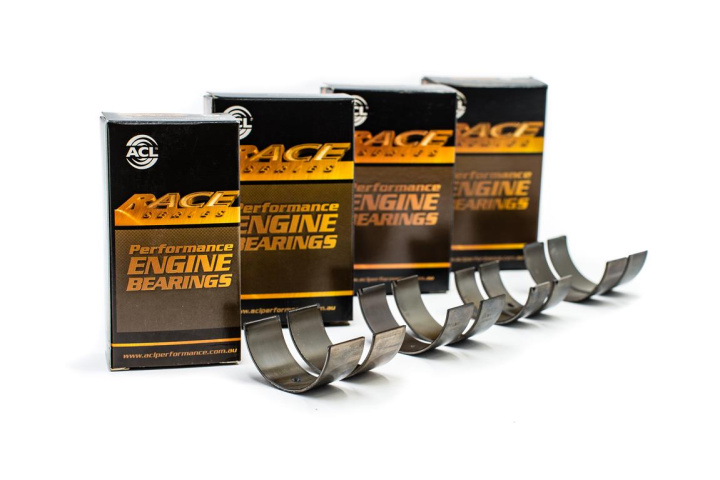

7M1532H BMW M20 / M50 / M52 / M54 / M57 / S50 / S52 / S54 Main bearing set (ACL Race Series) ACL

Name: 7M1532H BMW M20 / M50 / M52 / M54 / M57 / S50 / S52 / S54 Main bearing set (ACL Race Series) ACL
Brand: ACL
Price: 230 EUR
Availability: InStock

Article nr:

var-acl7M1532H

BMW M20 / M50 / M52 / M54 / M57 / S50 / S52 / S54 Main bearing set ACL Race Series

230 EUR

Delivery:

We recommend

Show all

ACL AG-1 FLEXIGAUGE (Green Pack) .025 - .076mm ACL

Flexigauge is available in four sizes and is used to check clearance of main and connecting rod bearings, and is suitable for Automotive, Marine and Industrial applications.

19 EUR

In stock

ACL AR-1 FLEXIGAUGE (Red Pack) .051 - .152mm ACL

Flexigauge is available in four sizes and is used to check clearance of main and connecting rod bearings, and is suitable for Automotive, Marine and Industrial applications.

19 EUR

In stock

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.
Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Tunnel [mm]: 65.000/65.019nShaft [mm]: 59.971/59.990nMax. Wall: 2.488nMax. Length: 20nHalf type: Upper & lowernNote: Half grooved set. Lower half has 2 notches.
Product video

Technical specification

Article nr:
var-acl7M1532H

Manufacture Partnumber: 7M1532H-.025 , 7M1532H-.25 , 7M1532H-.50 , 7M1532H-STD
Suitable for
BMW/M3 (E46)/DOHC 24v/S54B32
BMW/3 coupe (E46)/M3/S54B32
BMW/3 coupe (E46)/M3 CSL/S54B32
BMW/3 Convertible (E46)/M3/S54B32
BMW/Z3 coupe (E36)/M/S54B32
BMW/Z3 Roadster (E36)/M 3.2/S54B32
BMW/Z4 coupe (E86)/M/S54B32
BMW/Z4 Roadster (E85)/M/S54B32
BMW/328, 528, Z3/DOHC 24v/M52B28
BMW/M3 (E36)/DOHC 24v/S50B30
BMW/M3 (E36)/DOHC 24v/S50B32
BMW/M3 (E36)/DOHC 24v/S52B32
BMW/3 (E36)/320 i/M52B20
BMW/3 (E36)/325 i/M50B25
BMW/3 (E36)/323 i/M52B25
BMW/3 (E36)/328 i/M52B28
BMW/3 (E36)/M3 3.0/S50B30
BMW/3 (E36)/M3 3.2/S50B32
BMW/3 (E46)/320 i/M52B20
BMW/3 (E46)/320 i/M54B22
BMW/3 (E46)/323 i/M52B25
BMW/3 (E46)/325 xi/M54B25
BMW/3 (E46)/325 i/M54B25
BMW/3 (E46)/328 i/M52B28
BMW/3 (E46)/330 d/M57D30
BMW/3 (E46)/330 xd/M57D30
BMW/3 (E46)/330 xi/M54B30
BMW/3 (E46)/330 i/M54B30
BMW/3 Compact (E36)/323 ti/M52B25
BMW/3 Compact (E46)/325 ti/M54B25
BMW/3 coupe (E36)/320 i/M52B20
BMW/3 coupe (E36)/325 i/M50B25
BMW/3 coupe (E36)/325 is/M50B25
BMW/3 coupe (E36)/323 i/M52B25
BMW/3 coupe (E36)/328 i/M52B28
BMW/3 coupe (E36)/M3 3.0/S50B30
BMW/3 coupe (E36)/M3 3.2/S50B32
BMW/3 coupe (E46)/320 Ci/M52B20
BMW/3 coupe (E46)/320 Ci/M54B22
BMW/3 coupe (E46)/323 Ci/M52B25
BMW/3 coupe (E46)/325 Ci/M54B25
BMW/3 coupe (E46)/328 Ci/M52B28
BMW/3 coupe (E46)/330 Ci/M54B30
BMW/3 coupe (E46)/330 xi/M54B30
BMW/3 Convertible (E36)/320 i/M52B20
BMW/3 Convertible (E36)/325 i/M50B25
BMW/3 Convertible (E36)/323 i/M52B25
BMW/3 Convertible (E36)/328 i/M52B28
BMW/3 Convertible (E36)/M3 3.0/S50B30
BMW/3 Convertible (E36)/M3 3.2/S50B32
BMW/3 Convertible (E46)/320 Ci/M54B22
BMW/3 Convertible (E46)/323 Ci/M52B25
BMW/3 Convertible (E46)/325 Ci/M54B25
BMW/3 Convertible (E46)/330 Ci/M54B30
BMW/3 Touring (E36)/320 i/M52B20
BMW/3 Touring (E36)/323 i/M52B25
BMW/3 Touring (E36)/328 i/M52B28
BMW/3 Touring (E46)/320 i/M52B20
BMW/3 Touring (E46)/320 i/M54B22
BMW/3 Touring (E46)/325 xi/M54B25
BMW/3 Touring (E46)/325 i/M54B25
BMW/3 Touring (E46)/328 i/M52B28
BMW/3 Touring (E46)/330 d/M57D30
BMW/3 Touring (E46)/330 xd/M57D30
BMW/3 Touring (E46)/330 xi/M54B30
BMW/3 Touring (E46)/330 i/M54B30
BMW/5 (E34)/525 i 24V/M50B25
BMW/5 (E34)/525 iX 24V/M50B25
BMW/5 (E39)/520 i/M52B20
BMW/5 (E39)/520 i/M54B22
BMW/5 (E39)/523 i/M52B25
BMW/5 (E39)/525 i/M54B25
BMW/5 (E39)/528 i/M52B28
BMW/5 (E39)/530 d/M57D30
BMW/5 (E39)/530 i/M54B30
BMW/5 (E60)/520 i/M54B22
BMW/5 (E60)/525 i/M54B25
BMW/5 (E60)/530 i/M54B30
BMW/5 Touring (E34)/525 i/M50B25
BMW/5 Touring (E34)/525 ix/M50B25
BMW/5 Touring (E39)/520 i/M52B20
BMW/5 Touring (E39)/520 i/M54B22
BMW/5 Touring (E39)/523 i/M52B25
BMW/5 Touring (E39)/525 i/M54B25
BMW/5 Touring (E39)/528 i/M52B28
BMW/5 Touring (E39)/530 d/M57D30
BMW/5 Touring (E39)/530 i/M54B30
BMW/5 Touring (E61)/525 i/M54B25
BMW/7 (E38)/728 i, iL/M52B28
BMW/7 (E38)/730 d/M57D30
BMW/7 (E65, E66, E67)/730 i, Li/M54B30
BMW/X3 (E83)/2.5 i/M54B25
BMW/X3 (E83)/3.0 i xDrive/M54B30
BMW/X5 (E53)/3.0 d/M57D30
BMW/X5 (E53)/3.0 i/M54B30
BMW/Z3 coupe (E36)/2.8 i/M52B28
BMW/Z3 coupe (E36)/3.0 i/M54B30
BMW/Z3 coupe (E36)/M/S50B32
BMW/Z3 Roadster (E36)/2.0 i/M52B20
BMW/Z3 Roadster (E36)/2.2 i/M54B22
BMW/Z3 Roadster (E36)/2.8 i/M52B28
BMW/Z3 Roadster (E36)/3.0 i/M54B30
BMW/Z3 Roadster (E36)/M 3.2/S50B32
BMW/Z4 Roadster (E85)/2.2 i/M54B22
BMW/Z4 Roadster (E85)/2.5 i/M54B25
BMW/Z4 Roadster (E85)/3.0 i/M54B30
BMW/325/DOHC 24v/M50B27
BMW/320, 520, Z3/DOHC 24v/M52B20
BMW/325, 525, Z4/DOHC 24v/M50B25
BMW/325, 525, Z4/DOHC 24v/M52B25
BMW/325, 525, Z4/DOHC 24v/M54B25
BMW/3 (E30)/325 e 2.7/M20B27
BMW/5 (E28)/525 e/M20B27
BMW/325/SOHC 12v/M20B27
BMW/323/SOHC 12v/M20B23
BMW/320, 520, Z3/SOHC 12v/M20B20
BMW/3 (E36)/320 i/M50B20
BMW/3 coupe (E36)/320 i/M50B20
BMW/3 Convertible (E36)/320 i/M50B20
BMW/5 (E34)/520 i 24V/M50B20
BMW/5 Touring (E34)/520 i/M50B20
BMW/320, 520, Z3/DOHC 24v/M50B20
BMW/3 (E30)/325 i X/M20B25
BMW/3 Convertible (E30)/325 i/M20B25
BMW/3 (E30)/325 i/M20B25
BMW/3 Touring (E30)/325 i/M20B25
BMW/3 Touring (E30)/325 i X/M20B25
BMW/5 (E34)/525 i/M20B25
BMW/Z1 Roadster/2.5/M20B25
BMW/325, 525, Z4/SOHC 12v/M20B25
Brand
ACL has a proud and remarkable history in motorsport.
There is no better place to test its products than on a racing track. It is in competitions that good products shine!

ACL Race Series bearings are today well-known products, but the foundation was already laid in 1960, when the manufacture of bearings for winning F1 cars took off. After that came series such as the Australian Supercar Championship and several others, where the development of ACL's products continued. The combination of history in motorsport, collected test data, new materials and processes means that the bearings are now a standard of what engine builders worldwide expect.

No matter what you are looking for bearings for, ACL is a safe way to go. IF you're looking for the best - demand the best.
