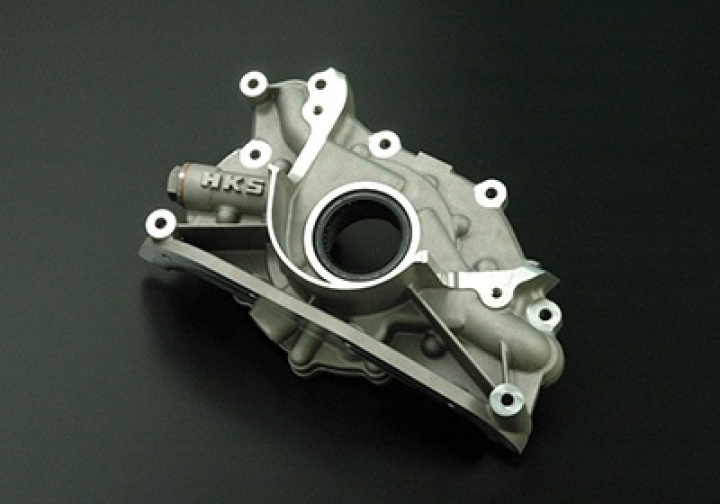

Newly designed case shape improves durability and oil flow amount. HKS Oil Pump Upgrade provides reliable oil supply for tuned engines.
FEATURES
- Larger rotor increases oil flow amount compared to the existing pump.
- New improved design now includes adjustable oil relief pressure (the alternator must be removed.). Utilizing outer shim enables adjustment to be visible.
- Thickness of driving rotor''s contact portion is increased, and contact surface shape is optimized. Thickness increase and material upgrade retain twice as much of rotor strength as the stock pump.
- HKS Oil Pumps have reviewed the case design to retain sufficient rotor strength and to reduce oil flow resistance after applying pressure.
Discharage (L/min.) @6000rpm: 65, 38% up (OEM 42-47)
Hydraulic Adjustment: Available (OEM Not Available)
Rotor Material: SCM435 (OEM Liquefied sintered Alloy)
Outer Diameter: φ88 (OEM φ81)
Tooth Width (mm): 12.4 (OEM 11.0)
Tooth Number (mm): 10:11 (OEM 12:13)
Inner (mm): 7.4 (OEM 5.4)
Outer (mm): 5.0 (OEM 4.5)
