ACT Advanced Clutch Technology

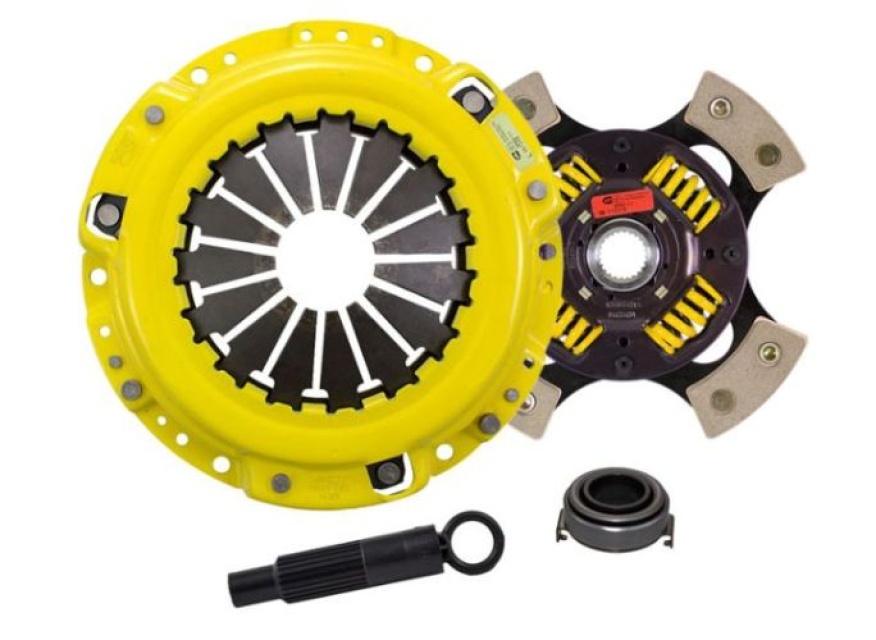

HA3-HDG4 ACT HD/Race Sprung 4 Pad Kit

Article nr:
actHA3-HDG4
|
(0 reviews)
Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.
723 EUR
Delivery:  2-4 weeks
Warehouse stock:  0
Stock:

Add to cart
Sales Representative Image

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Contact us

  • Product description
  • HA3-HDG4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACTs 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

    Specifications:

  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter: 224 MM
  • Clutch Disc Diameter: 8.8 IN
  • Disc Material: Ceramic
  • Input Spline Quantity: 24
  • Input Shaft Diameter: 1.03125 IN
  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 13
  • Title: ACT HD/Race Sprung 4 Pad Kit
  • Torque Capacity (ft/lbs.): 355
  • Torque Capacity Over OE: 80%

    Kit includes:

    • 4224210 ACT 4 Pad Sprung Race Disc
    • AT58 ACT Alignment Tool
    • H026 ACT Heavy Duty Pressure Plate
    • RB817 ACT Release Bearing

    Kitet passar:

    Honda Accord 1998-2003 2.0L L4 1996cc (F20B6)
    Honda Accord 1998-2003 2.2L L4 2157cc Type-R (H22A7)
    Honda Accord 1998-2003 1.8L L4 1850cc (F18B2)
    Honda Accord 1998-2003 2.3L L4 2259cc
    Honda Accord 1993-1997 2.0L L4 1997cc i ESLS (F20B3F20Z1F20Z2)
    Honda Accord 1993-1997 2.2L L4 2157cc ES (F22B5F22Z2)
    Honda Accord 1989-1993 2.0L L4 1997cc (F20Z3)
    Honda Accord 1989-1993 2.2L L4 2157cc (F20Z3)
    Honda Prelude 1992-1997 2.0L L4 1997cc (F20A4)
    Honda Prelude 1992-1997 2.3L L4 2259cc (H23A2)
    Honda Prelude 1992-1997 2.2L L4 2156cc (H22A2)
    Honda Prelude 1997-2001 2.2L L4 2156cc VTi (H22A5H22A8)
    Honda Prelude 1997-2001 2.0L L4 1997cc (F20A4)
    Honda Prelude 1997-2001 2.2L L4 2156cc VTi-S (H22A5H22A8)

    • Product video

    Technical specification

    Article nr:
    actHA3-HDG4
    Manufacture Partnumber: HA3-HDG4
  • Suitable for
  • Brand
  • ACT Advanced Clutch Technology Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
