SB10-HDR4 ACT HD-M/Race Rigid 4 Pad Kit

Name: SB10-HDR4 ACT HD-M/Race Rigid 4 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actSB10-HDR4
Price: 1081 EUR
Availability: InStock

Article nr:

actSB10-HDR4

Recommended for race use only. Light to moderate pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts.

1081 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
SB10-HDR4 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monolocs hardened chrome-moly steel construction will provide years of service.
Specifications:
Pilot Bushing Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 240 MM
Clutch Disc Diameter: 9.4 IN
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1 IN
Alignment Tool Included: Yes
Part Fitment Requirement: Includes Monoloc.
Product Weight (lbs.): 15.9
Title: ACT HD-M/Race Rigid 4 Pad Kit
Torque Capacity (ft/lbs.): 668
Torque Capacity Over OE: 88%

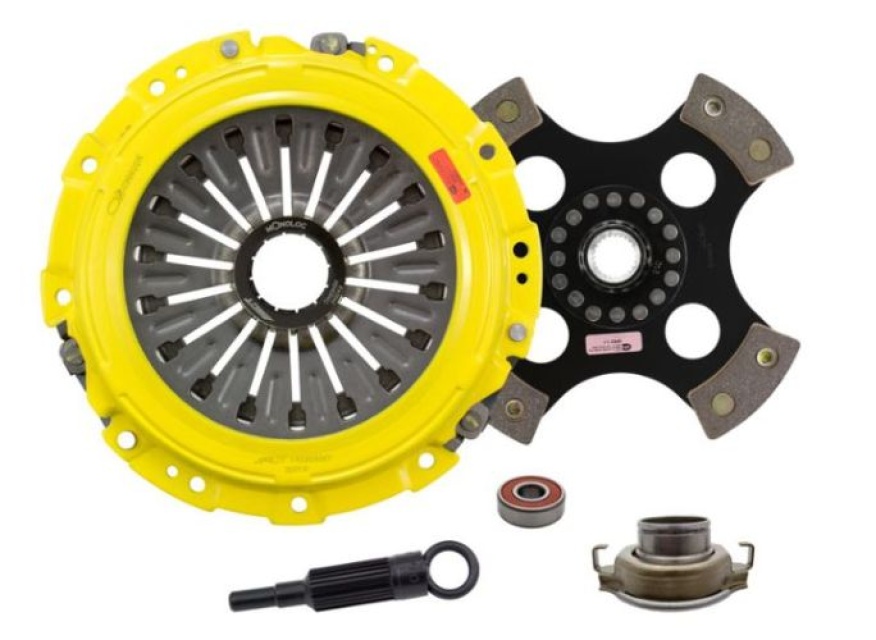

Kit includes:
4240018 ACT 4 Pad Rigid Race Disc
AT90 ACT Alignment Tool
PB1004 ACT Pilot Bearing
RB601 ACT Release Bearing
SB019 ACT Heavy Duty Pressure Plate
Kitet passar:
Subaru Impreza - WRX STi 2004-2017 6-Speed 2.5L H4 2458cc
Subaru Impreza - WRX STi 2002-2005 2L F4 EJ20
