BMW E9X 325D/330D/335D 2005-2013 Intercooler AirTec
Comes in black without logo if not specified!

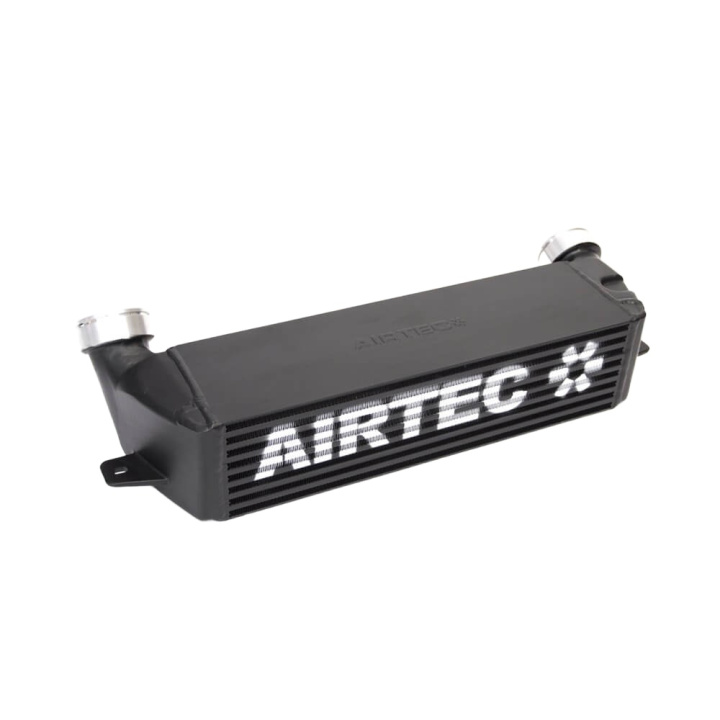

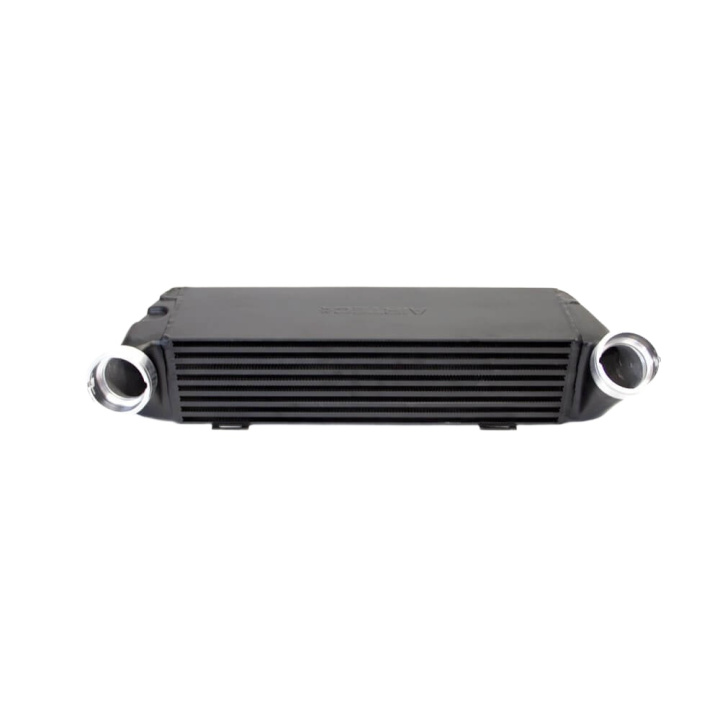

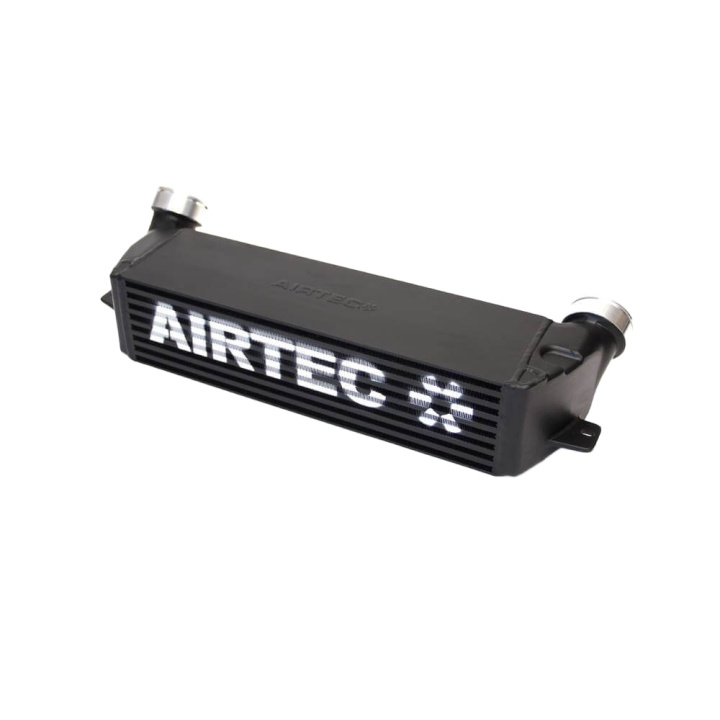

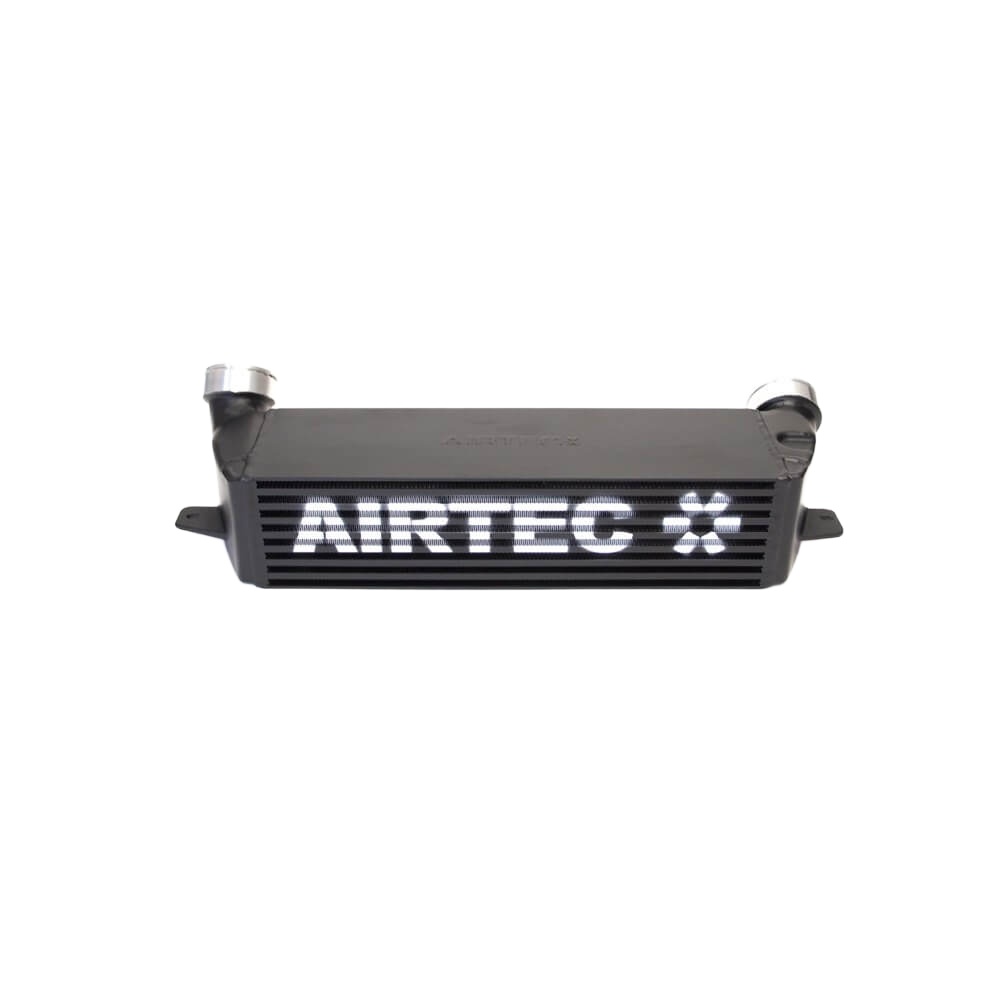

AIRTEC Motorsport Front Mount Intercooler Upgrade for BMW E9x 325d/330d/335d – 2005-2013
As part of our expanding BMW E9x diesel model product range, AIRTEC Motorsport is proud to launch our intercooler upgrade suitable for track or fast road use.
In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.
Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a wide and short core with a huge 160mm depth. This offers a massive increase in overall capacity in comparison to the original intercooler, as well as a significant increase in frontal area over standard, which allows it to make the most of the air flow provided.
Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.
The inlet and outlets use the original BMW hose connector for ease of use and the intercooler comes with all fixtures and fittings as well as a detailed fitting guide.
PLEASE NOTE – THIS INTERCOOLER IS A DIRECT REPLACEMENT FOR BMW PART NUMBERS:
- 17517800680
- 17517789333
- 17517800682
Direct fits the following models only:
- 325d E90/E91/E92/E93 – 2005-2013
- 330d E90/E91/E92/E93 – 2005-2013
- 335d E90/E91/E92/E93 – 2005-2013
If in doubt, please measure the inlet and outlet or check the part number of your current intercooler. This intercooler is suited for models with matching 70mm inlet and outlets.
Dimensions:
- Width: 530mm
- Height: 130mm
- Depth: 160mm
- Capacity: 11 litres
- Front area: 6,890cm²
AIRTEC Part No: ATINTBMW8
