AA2-HDG6 ACT HD/Race Sprung 6 Pad Kit

Name: AA2-HDG6 ACT HD/Race Sprung 6 Pad Kit
Brand: ACT Advanced Clutch Technology
SKU: actAA2-HDG6
Price: 1376 EUR
Availability: InStock

Article nr:

actAA2-HDG6

Recommended for high horsepower street or race use. Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

1376 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
AA2-HDG6 kit features ACTs most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Specifications:
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4 IN
Clutch Disc Diameter: 240 MM
Disc Material: Ceramic
Input Spline Quantity: 23
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Part Fitment Requirement: Kit utilizes spring centered disc designed for use with ACT single mass flywheel. Will not work with the OE dual mass flywheel.
Product Weight (lbs.): 15.3
Title: ACT HD/Race Sprung 6 Pad Kit
Torque Capacity (ft/lbs.): 660
Torque Capacity Over OE: 82%

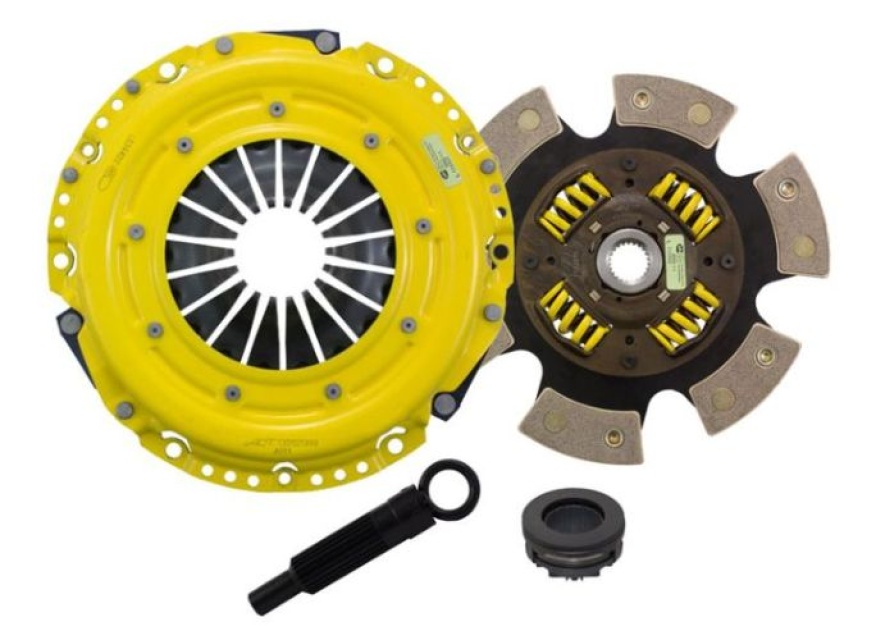

Kit includes:
6240227B ACT 6 Pad Sprung Race Disc
A011 ACT Heavy Duty Pressure Plate
AT36 ACT Alignment Tool
RB1301 ACT Release Bearing
Kitet passar:
Audi S4 B68E8H (2001-2006) 4.2L V8 4163cc
Audi RS4 B7 (2007-2008) 4.2L V8 4172cc
Audi S4 B78E8H (2004-2009) 4.2L V8 4163cc
Product video

Technical specification

Article nr:
actAA2-HDG6

Manufacture Partnumber: AA2-HDG6
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
