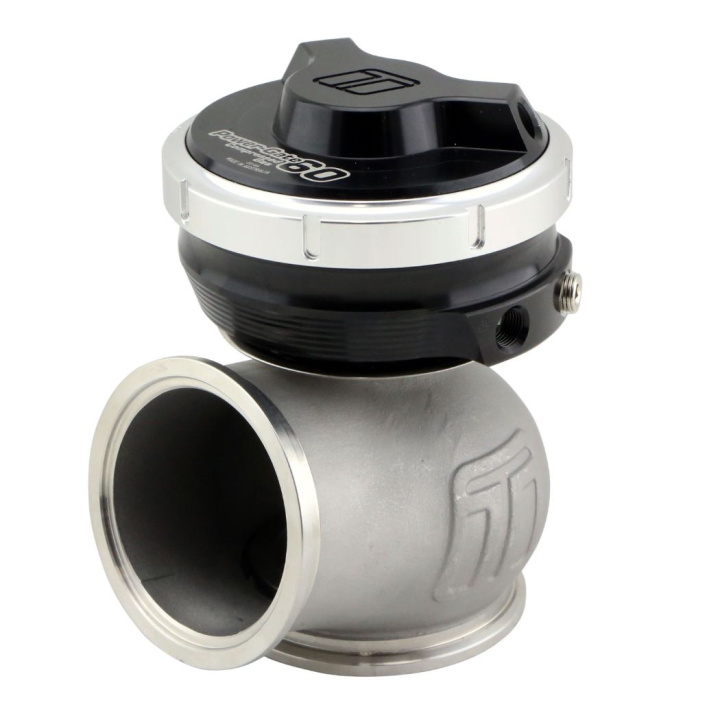

WG60 GenV Power-Gate 60mm CG (compressed gas) wastegate - 5psi Black

Name: WG60 GenV Power-Gate 60mm CG (compressed gas) wastegate - 5psi Black
Brand: Turbosmart
SKU: TS-0555-1202
Price: 1005 EUR
Availability: InStock

Article nr:

TS-0555-1202

The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, cost-effective external wastegate.

1005 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock: 0

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
The Gen-V WG60CG Power-Gate60 Compressed Gas external wastegate is a cost effective, high performing 60mm external wastegate designed for control strategies that actively bias the top chamber with high pressure for large boost bandwidth operation, such as CO2 drag racing, or compressed air WRC applications.

The Compressed Gas range feature an inverted diaphragm to maximise diaphragm life from high pressure CO2 or compressed air systems.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

Product features summary:
• Liquid cooling provision
• Strap type V-band clamps
• User adjustable actuator position
• Modular actuator design
• Non Compressed Gas configurations option available
• Inverted diaphragm for top chamber high pressure support

Included in the Box:
• Wastegate unit (pre-assembled with spring as per order)
• SS316 Valve seat
• Inlet V-Band
• Inlet SS304 weld flange
• Outlet V-Band
• Outlet SS304 weld flange
• Collar tool (master/slave)

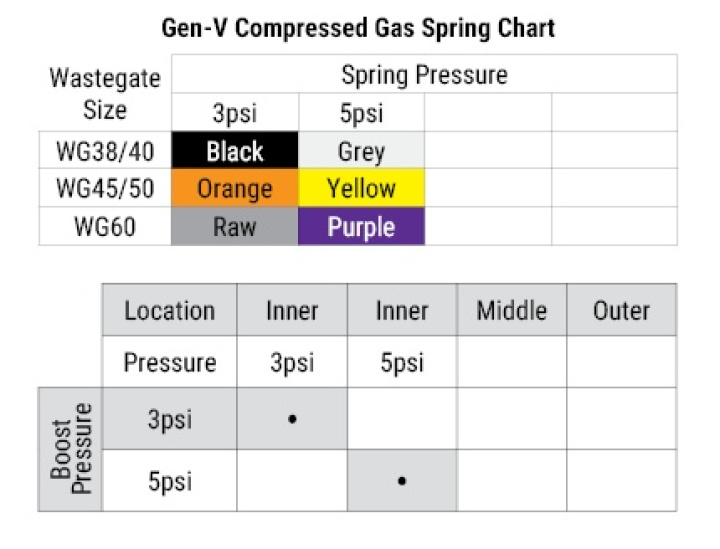

• 17/7 PH 3, 5 psi spring kit (1x spring installed)
• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
• Sticker
• Instruction card

Product video

Technical specification

Article nr:
TS-0555-1202

Manufacture Partnumber: TS-0555-1202
Suitable for
Brand
Turbosmart was founded in Sydney, Australia, in 1997. At the time they only had 2 products but quickly became known in the car industry for their incredible quality and durability.
Today Turbosmart's products are sold in more than 50 countries around the world and is found in several record-breaking cars. The successes and tests of these cars on and off the track, Turbosmart has taken part in their development of products. This means that Turbosmart's products never stop developing, they make constant updates to get the absolute best results. The assortment offers wastegates, blow-off valves, boost controllers and gauges etc.
