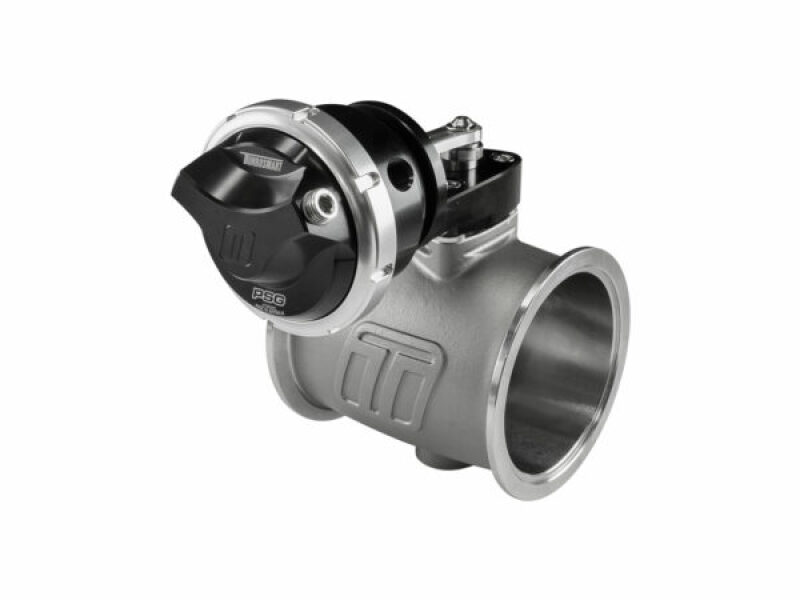

Turbosmart PSG76 Pneumatic StraightGate - 6 PSI, Black

Name: PSG76 Pneumatic Straight Gate 6psi Black
Brand: Turbosmart
SKU: TS-0567-1762
Price: 1103 EUR
Availability: InStock

The Turbosmart PSG76 StraightGate is a high-performance external wastegate designed for engine builds requiring high exhaust flow capacity and precise boost pressure control. Featuring a 76 mm butterfly valve and an innovative zero-offset design, it delivers exceptionally high flow capacity and smooth, predictable boost regulation.

The pneumatic version uses a conventional boost-pressure-operated actuator, providing a simple and effective wastegate control solution. Its self-balancing valve design helps counteract the effects of exhaust backpressure and offers a wide range of boost pressure adjustment.

The wastegate is equipped with a GenV actuator and comes with a 6 PSI spring pre-installed. Its robust stainless steel construction is designed to withstand demanding conditions in motorsport and high-performance driving.

Features and Benefits

76 mm butterfly valve: Provides very high exhaust flow capacity.
Zero-offset design: Helps balance the valve against exhaust backpressure.
Pneumatic control: Conventional boost-pressure-based regulation for straightforward installation.
GenV actuator: Supports both single-port and dual-port control.
6 PSI base pressure: Supplied with 6 PSI springs pre-installed.
Adjustable boost pressure: Interchangeable springs allow different base pressure settings.
Robust construction: Stainless steel valve and shaft, with a stainless steel valve housing.
Flexible installation: V-band connections with 360° adjustment capability.

Technical Specifications

Manufacturer: Turbosmart
Model: PSG76 Pneumatic StraightGate76
Part number: TS-0567-1762
Product type: External pneumatic wastegate
Valve diameter: 76 mm (2.99 inches)
Base pressure: 6 PSI (approximately 0.41 bar)
Specified flow capacity: 723.7 CFM (approximately 20.49 m³/min)
Control: Pneumatic, boost-pressure-operated
Spring options: 6, 9, 12 and 21 PSI
Colour: Black

Included Items

1 × Turbosmart PSG76 Pneumatic StraightGate76
Inlet and outlet flanges
Inlet and outlet weld flanges
6 PSI springs pre-installed
Additional included springs
2 × 1/8 NPT hose fittings
2 × 1/8 NPT blanking plugs
Turbosmart sticker

Product video

Technical specification

Article nr:

TS-0567-1762

Manufacture Partnumber:

TS-0567-1762

Turbosmart was founded in Sydney, Australia, in 1997. At the time they only had 2 products but quickly became known in the car industry for their incredible quality and durability.

Today Turbosmart's products are sold in more than 50 countries around the world and is found in several record-breaking cars. The successes and tests of these cars on and off the track, Turbosmart has taken part in their development of products. This means that Turbosmart's products never stop developing, they make constant updates to get the absolute best results. The assortment offers wastegates, blow-off valves, boost controllers and gauges etc.
