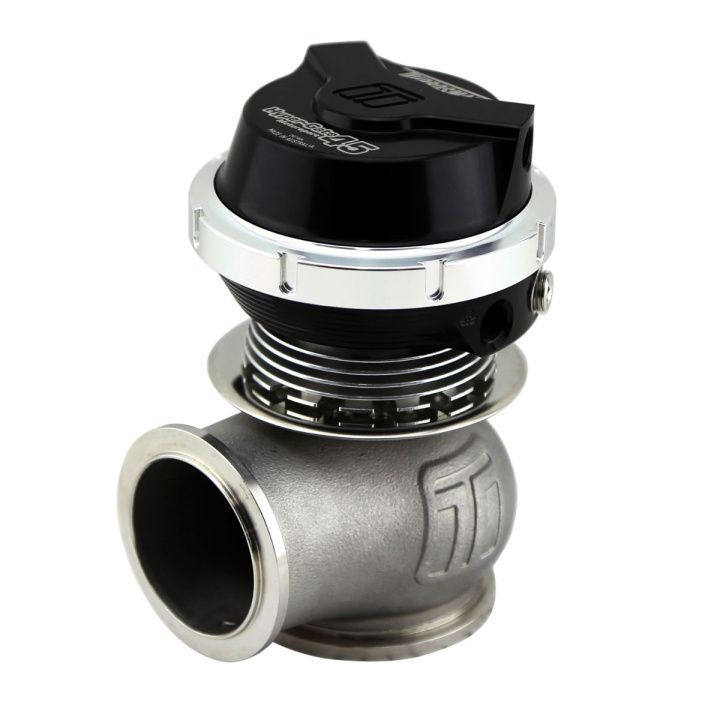

WG45 2011 Hyper-Gate 45mm Motorsport wastegate - 14psi Black

Name: WG45 2011 Hyper-Gate 45mm Motorsport wastegate - 14psi Black
Brand: Turbosmart
SKU: TS-0553-1102
Price: 803 EUR
Availability: InStock

Article nr:

TS-0553-1102

These 45mm wastegates feature a unique locking collar design for a reduced size and quicker spring changes.

803 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock: 0

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
The Gen-V WG45M Hyper-Gate45 Motorsport external wastegate is a cost effective, high performing 45mm external wastegate designed specifically for endurance racing or where water cooling is not available and high thermal thresholds are required for extended periods of time.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature a CFD driven heatsink design, our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

Product features summary:
• CFD driven heatsink design
• Liquid cooling provision
• Strap type V-band clamps
• User adjustable actuator position
• Modular actuator design
• Standard / Compressed Gas configurations available

Included in the Box:
• Wastegate unit (pre-assembled with spring as per order)
• SS316 Valve seat
• Inlet V-Band
• Inlet SS304 weld flange
• Outlet V-Band
• Outlet SS304 weld flange
• Collar tool (master/slave)

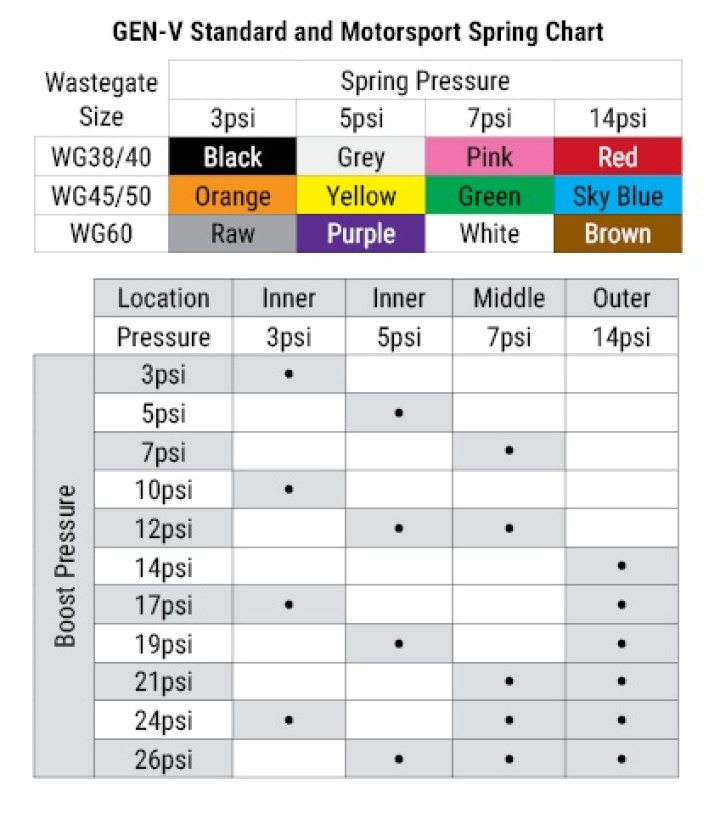

• 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
• 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
• Sticker
• Instruction card

Product video

Technical specification

Article nr:
TS-0553-1102

Manufacture Partnumber: TS-0553-1102
Suitable for
Brand
Turbosmart was founded in Sydney, Australia, in 1997. At the time they only had 2 products but quickly became known in the car industry for their incredible quality and durability.
Today Turbosmart's products are sold in more than 50 countries around the world and is found in several record-breaking cars. The successes and tests of these cars on and off the track, Turbosmart has taken part in their development of products. This means that Turbosmart's products never stop developing, they make constant updates to get the absolute best results. The assortment offers wastegates, blow-off valves, boost controllers and gauges etc.
