VW6-HDSS ACT HD/Perf Street Sprung

Name: VW6-HDSS ACT HD/Perf Street Sprung
Brand: ACT Advanced Clutch Technology
SKU: actVW6-HDSS
Price: 2115 EUR
Availability: InStock

Article nr:

actVW6-HDSS

Recommended for street and race use. Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle.

2115 EUR

Delivery: 2-4 weeks

Warehouse stock: 0

Stock:

Talk to an expert

Need help? Check fitment, get personalized recommendations and tips.

Product description
VW6-HDSS kit features ACTs most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACTs Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Specifications:

Flywheel Included: Yes
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 240 MM
Clutch Disc Diameter: 9.4 IN
Disc Material: Organic
Input Spline Quantity: 24
Input Shaft Diameter: 0.9375 IN
Alignment Tool Included: Yes
Flywheel Type: Streetlite
Part Fitment Requirement: Conversion kit. Must use ACT flywheel (included in kit).
Product Weight (lbs.): 30.9
Title: ACT HD/Perf Street Sprung
Torque Capacity (ft/lbs.): 410
Torque Capacity Over OE: 35%

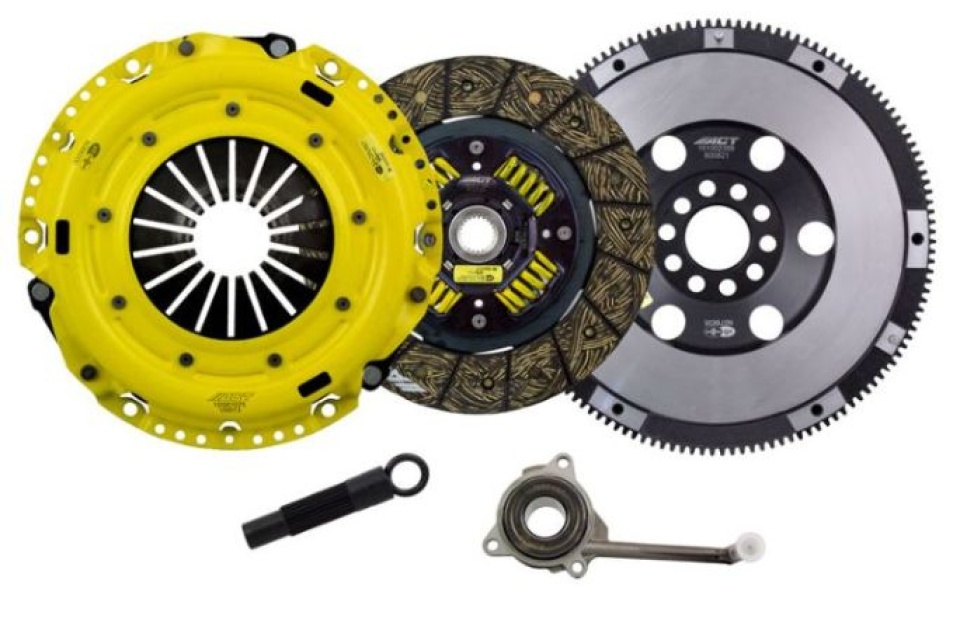

Kit includes:

3000703 ACT Perf Street Sprung Disc
600821 ACT XACT Flywheel Streetlite
AT126 ACT Alignment Tool
RB3743A ACT Release Bearing
VW013 ACT Heavy Duty Pressure Plate

Kitet passar:

Seat Leon 1M1 2001 2.8L V6 150kw. 204hp
Seat Leon 1M1 2002 2.8L V6 150kw. 204hp
Seat Leon 1M1 2003 2.8L V6 150kw. 204hp
Seat Leon 1M1 2004 2.8L V6 150kw. 204hp
Seat Leon 1M1 2005 2.8L V6 150kw. 204hp
Seat Leon 1M1 2006 2.8L V6 150kw. 204hp
Seat Leon Cupra 4 1M1 2002 2.8L V6 150kw. 204hp
Seat Leon Cupra 4 1M1 2003 2.8L V6 150kw. 204hp
Seat Leon Cupra 4 1M1 2004 2.8L V6 150kw. 204hp
Volkswagen Golf IV 1J1 Including 4Motion 2.3L V5 125kw. 170hp
Volkswagen Golf IV GTI - 6 Speed 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2.3L V5 110kw. 150hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2.3L V5 110kw. 150hp
Volkswagen Bora IV 1J2 1998-2005 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2.3L V5 125kw. 170hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 1999 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2000 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2001 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2002 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2003 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2004 2.8L V6 150kw. 204hp
Volkswagen Jetta (Bora) IV 4 Motion 1J2 2005 2.8L V6 150kw. 204hp
Product video

Technical specification

Article nr:
actVW6-HDSS

Manufacture Partnumber: VW6-HDSS
Suitable for
Brand
Since 1994, ACT, Advanced Clutch Technology has specialized in building high performance powertrain components. With a focus on customer service, quality and sustainability, the company has earned a good reputation in the aftermarket industry, worldwide. Each product is carefully checked, tested and researched so they are sure to live up to expectations. A 90-120 day warranty period is common, in the USA e.g. so ACT provides a 1-year warranty, which is backed by the company's faith in its products. When you choose an ACT clutch for your car, you can feel confident that you are getting a good product that will last a long time.
Accessories & Spare Parts
Guarantee
Reviews:
To leave a review, you should have previously purchased this product and log in to your customer profile.
